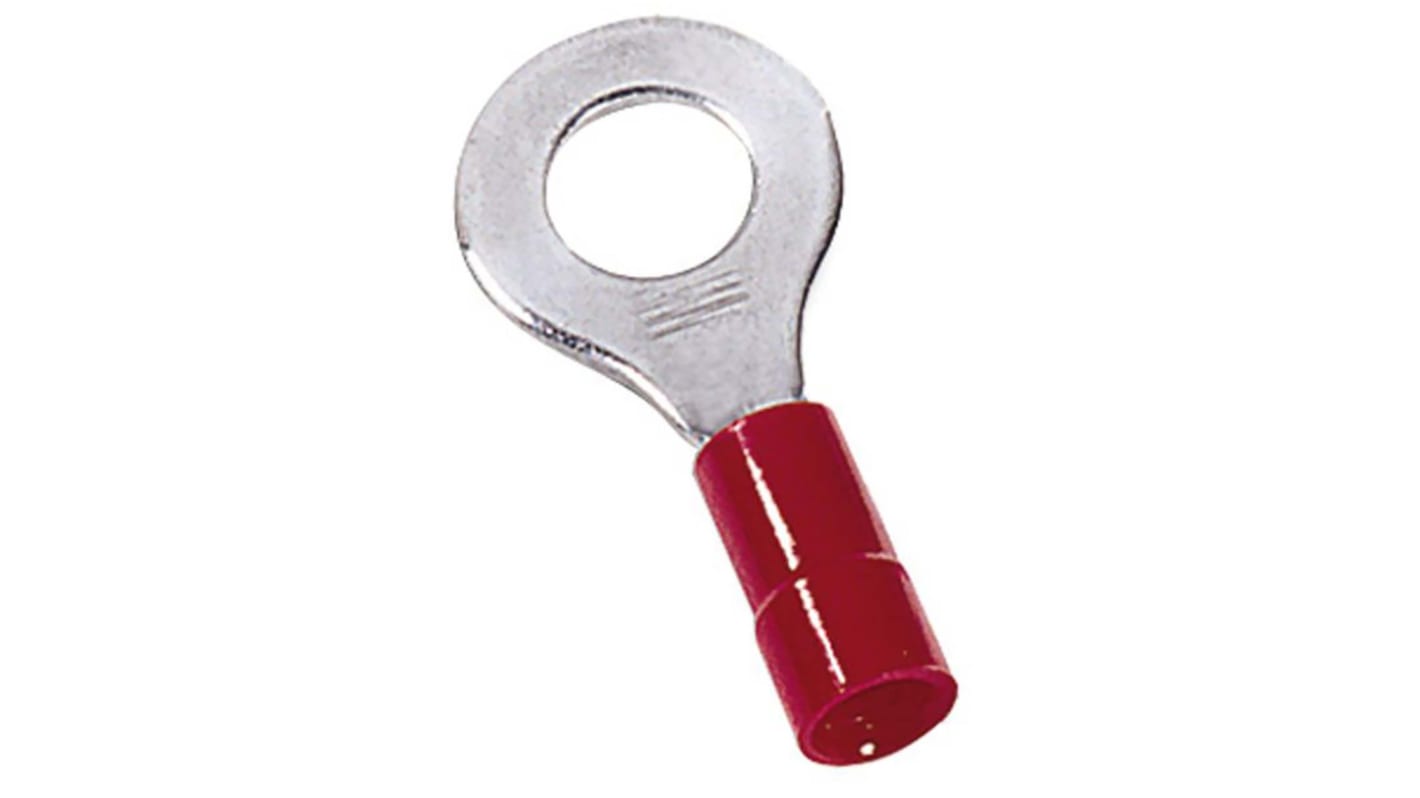

MECATRACTION, N Insulated Ring Terminal, M6 Stud Size to 1,5mm² Wire Size, Red
- RS Stock No.:
- 200-6952
- Mfr. Part No.:
- C100NA2-6
- Brand:
- MECATRACTION
500 In Global stock for delivery within 10 working day(s)
500 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Box of 100)
$0.681
(exc. GST)
$0.749
(inc. GST)
| Units | Per unit | Per Box* |
| 100 - 400 | $0.681 | $68.10 |
| 500 + | $0.613 | $61.30 |
| *price indicative | ||
- RS Stock No.:
- 200-6952
- Mfr. Part No.:
- C100NA2-6
- Brand:
- MECATRACTION
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
C100NA2-6
The Mecatraction preinsulated ring terminal.
Tin-plated copper
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Polyamide insulation sleeve.
Maximum operating temperature: +105°C
“Easy entry” conical entry
Flammability rating: UL94V2
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Polyamide insulation sleeve.
Maximum operating temperature: +105°C
“Easy entry” conical entry
Flammability rating: UL94V2
Specifications
Attribute | Value |
|---|---|
| Series | N |
| Series Number | C100 |
| Insulation | Insulated |
| Insulation Material | Polyamide |
| Outer Ring Diameter | 12.5mm |
| Inner Ring Diameter | 6.3mm |
| Maximum Wire Size mm² | 1,5mm² |
| Stud Size | M6 |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Overall Length | 27mm |
