TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M6 Stud Size, 10.5mm² to 16.77mm² Wire Size, Blue

RS Stock No.:: 164-0280
Mfr. Part No.:: 52042-3
Brand:: TE Connectivity

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M6 Stud Size, 10.5mm² to 16.77mm² Wire Size, Blue

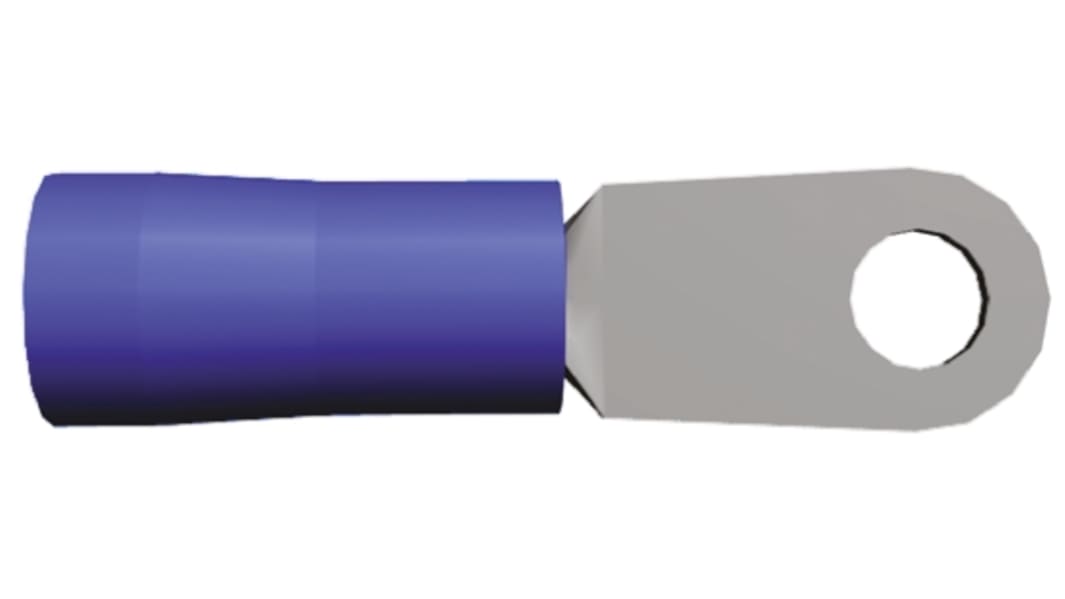

This image is representative of the product range

100 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Box of 100)

$1.659

(exc. GST)

$1.825

(inc. GST)

Units	Per unit	Per Box*
100 - 400	$1.659	$165.90
500 +	$1.493	$149.30
*price indicative

RS Stock No.:: 164-0280
Mfr. Part No.:: 52042-3
Brand:: TE Connectivity

Technical data sheets

Terminal Ring Tongue Plasti-Grip Wire Size 6 Awg Drawing

Legislation and Compliance

COO (Country of Origin):: US

Product Details

TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals

PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

TE Connectivity Plasti-Grip Terminals

Specifications

Attribute	Value
Series	PLASTI-GRIP
Insulation	Insulated
Insulation Material	Vinyl
Maximum Wire Size mm²	16.77mm²
Minimum Wire Size mm²	10.5mm²
Maximum Wire Size AWG	6AWG
Minimum Wire Size AWG	6AWG
Stud Size	M6
Colour	Blue
Contact Material	Copper
Contact Plating	Tin
Overall Length	47.47mm
