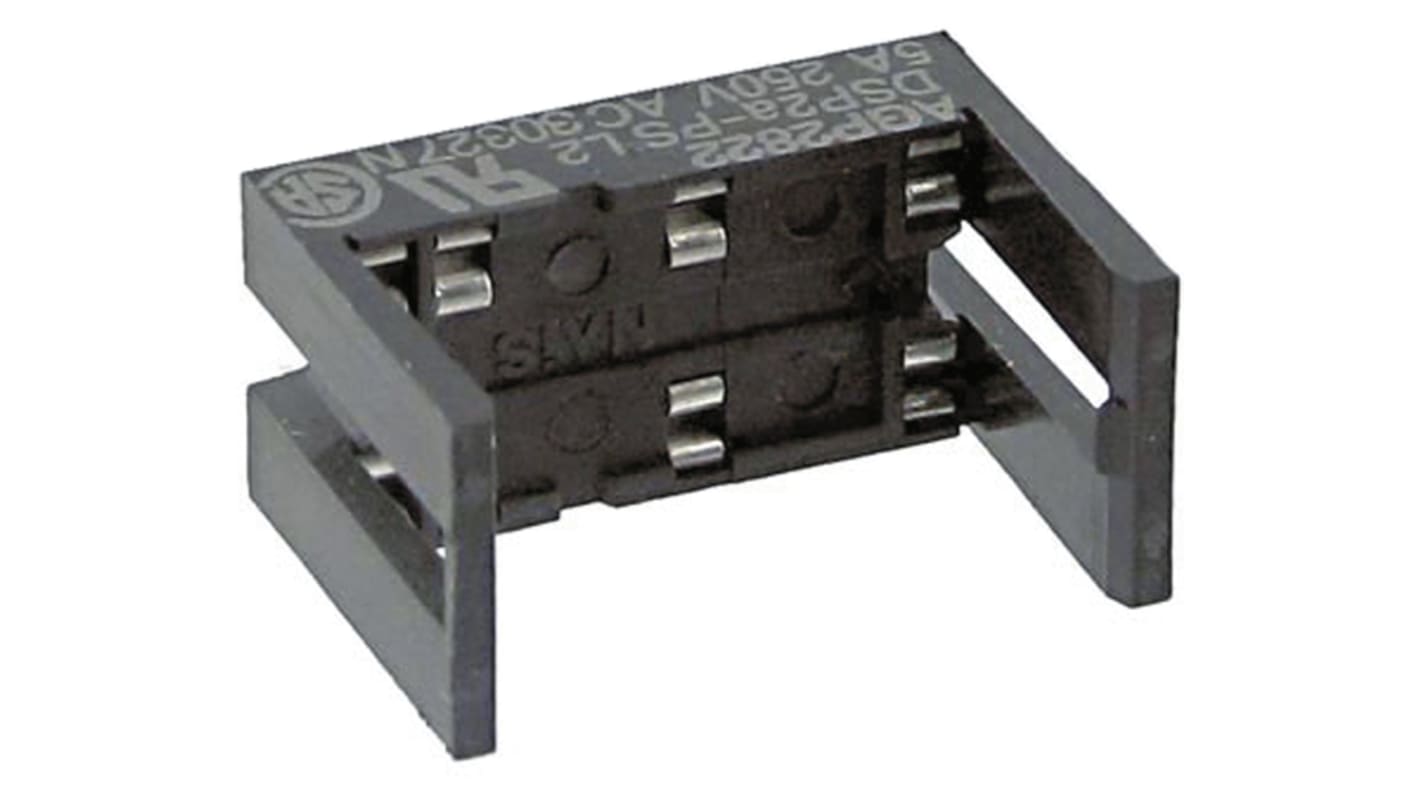

Panasonic Relay Socket for use with DSP Series Relay

  • RS Stock No. 811-3236
  • Mfr. Part No. DSP2A-PSL2
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

DSP Series Relay

These miniature PCB mount power relays have a high contact rating, high switching capability, high sensitivity and high breakdown voltage. A sealed construction allows automatic washing. Typical applications include office and industrial electronic devices, measuring instruments, temperature controllers and PLCs.

High switching capacity monostable relay in a DIL format
High breakdown voltage
High sensitivity
Sealed construction allows automatic washing
Miniature size, H10 x W20.2 x D11 mm

Note

Reverse polarity types have a part number with an R suffix

Approvals

UL, CSA, TÜV

Specifications
Attribute Value
For Use With DSP Series Relay
Accessory Type Socket
On back order for despatch 04/02/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 7.62
(exc. GST)
$ 8.38
(inc. GST)
units
Per unit
1 - 24
$7.62
25 - 49
$7.44
50 - 99
$7.24
100 - 249
$7.04
250 +
$6.86
