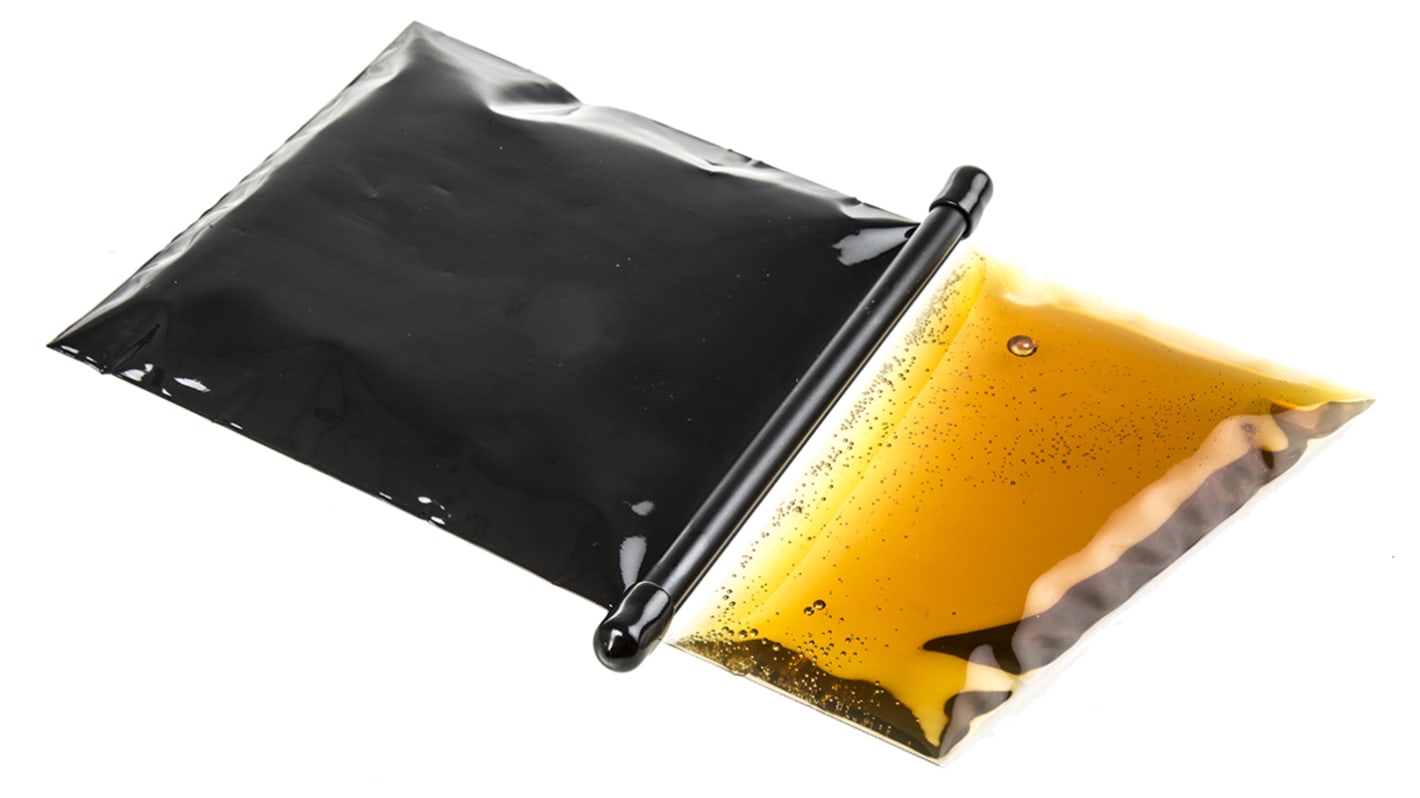

Electrolube UR5528RP250 Black PUR Potting Compound

  • RS Stock No. 160-8497
  • Mfr. Part No. UR5528RP250
  • Manufacturer Electrolube
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Low Viscosity Polyurethane

A hard and tough black polyurethane potting compound, with excellent adhesion properties to difficult substrates.Applications include potting intricate components, radio transmitters, PCBs.

Excellent dielectric characteristics
Good water and chemical resistance
Cure time 24 hours
Useable life 20 minutes
Maximum temp. 120°C
Electrical strength 25kV/mm

Standards

R40

Electrolube PUR potting compound

The Electrolube PUR 250g black potting compound has excellent adhesion properties to difficult substrates. It is a 2-part potting and encapsulating compound with excellent water resistance properties, making it suitable for the wide range of applications where water or moisture ingress may be a concern.

Features and Benefits


Excellent dielectric characteristics
• Good water and chemical resistance
• Low viscosity
• Excellent resistance to acids, alkalis and other aqueous materials
• Ideal for harsh environments
• Durable with a high degree of toughness good physical protection
• Cure time is 24 hours
• Useable life is 20 minutes
• Maximum temperature is 120°C
• Electrical strength is 25kV/mm
• Hardness of 57 Shore D
• Thermal conductivity is 0.245W/mK
• Operating temperature ranges between -50°C and 125°C

Applications


Potting intricate components
• Radio transmitters
• PCBs

Standards

R40

Potting Compounds: Twin Packs

Specifications
Attribute Value
Product Material PUR
Package Type Pack
Package Size 250 g
Cure Time 24 h
Hardness 57 Shore D
Thermal Conductivity 0.245W/mK
Colour Black
Maximum Operating Temperature +125°C
Minimum Operating Temperature -50°C
Operating Temperature Range -50 → +125 °C
Temporarily out of stock - back order for despatch 15/07/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 58.12
(exc. GST)
$ 63.93
(inc. GST)
units
Per unit
1 - 4
$58.12
5 - 9
$56.90
10 +
$56.05
