TE Connectivity 10Ω Rotary Potentiometer 1-Gang Panel Mount, TW1100KA

RS Stock No.:: 502-8536
Mfr. Part No.:: TW1100KA
Brand:: TE Connectivity

TE Connectivity 10Ω Rotary Potentiometer 1-Gang Panel Mount, TW1100KA

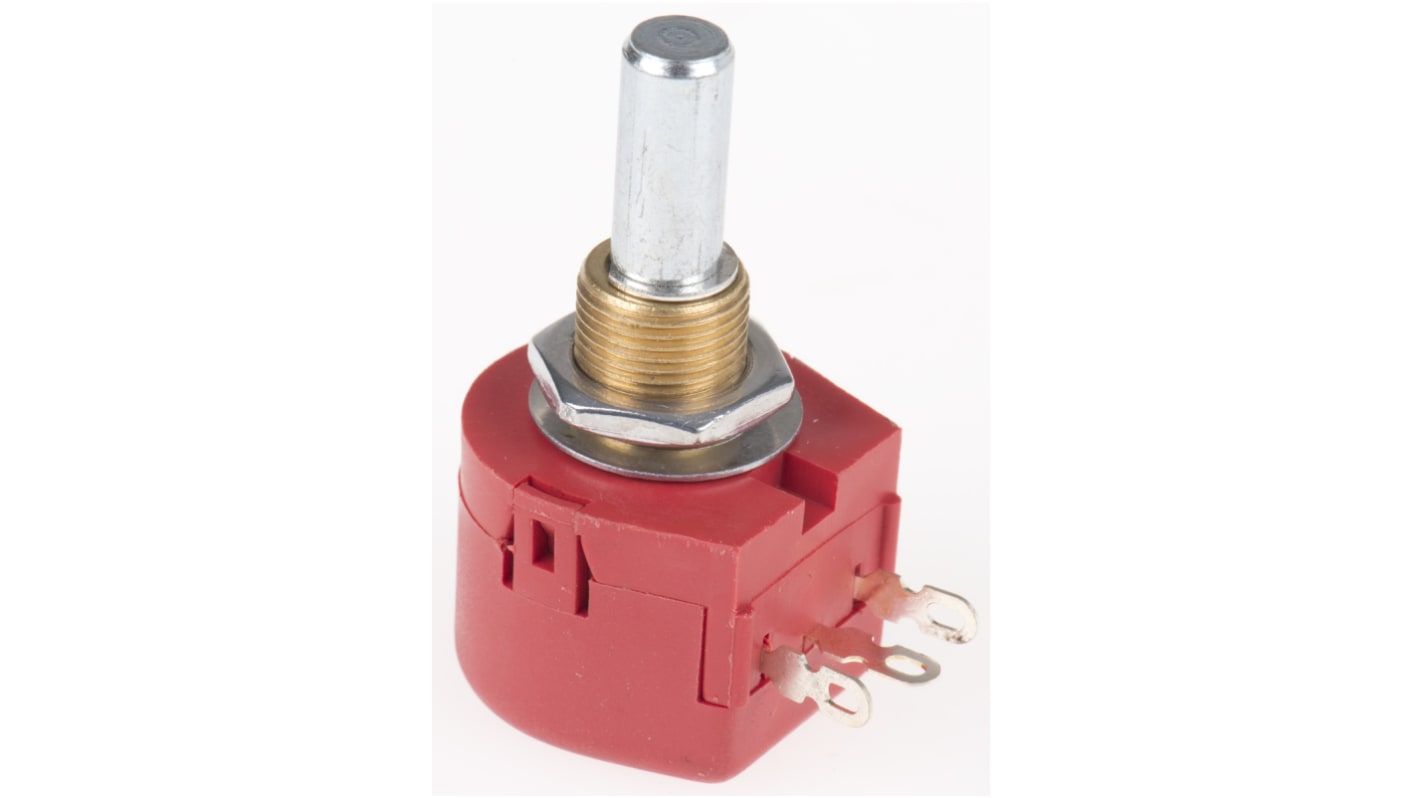

This image is representative of the product range

4 In AU stock for next working day delivery

4 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$24.22

(exc. GST)

$26.64

(inc. GST)

Units	Per unit
1 - 124	$24.22
125 - 249	$23.80
250 +	$23.37

RS Stock No.:: 502-8536
Mfr. Part No.:: TW1100KA
Brand:: TE Connectivity

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

23mm TW Series Potentiometers

A comprehensive range of potentiometers from TE Connectivity, TW series linear panel mount potentiometers available in 10 Ohm to 25 K Ohms versions with 1-W power handling, and 10% tolerance. These durable potentiometers have a life cycle of 10,000 operations and are suitable for industrial control, and other high-power applications.

Features and Benefits –

• Built with quality in mind so you can use these potentiometers in a rugged environment.
• ±10% tolerance
• Excellent linearity
• Sealed body provides additional protection
• 10,000 operations for a long life span
• Solder eyelet termination
• Supplied with a metal lock and washer

Features

• 259-6935
• 259-6957
• 107-3138

Wirewound element
Plain shaft 6.35-mm diameter
Wide range available 10 Ohm to 25 K Ohms resistance
One turn, with 10% tolerance
1-W power rating
Shaft torque 3.5 – 100 mNm
Solder eyelet termination
Supplied with metal lock washer and nut

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Potentiometer Type	Rotary
Maximum Resistance	10Ω
Number of Gangs	1
Number of Turns	1
Power Rating	1W
Electrical Taper	Linear
Element Material	Wirewound
Mounting Type	Panel Mount
Termination Style	Solder Lug
Shaft Length	15mm
Shaft Diameter	6.35 mm
Series	TW
Tolerance	±10%
Actuator Type	Round Shaft
