Vishay 1kΩ Rotary Potentiometer 2-Gang, Panel Mount (Through Hole), 14920F0GJSX13102KA

RS Stock No.:: 484-9231
Mfr. Part No.:: 14920F0GJSX13102KA
Brand:: Vishay

Vishay 1kΩ Rotary Potentiometer 2-Gang, Panel Mount (Through Hole), 14920F0GJSX13102KA

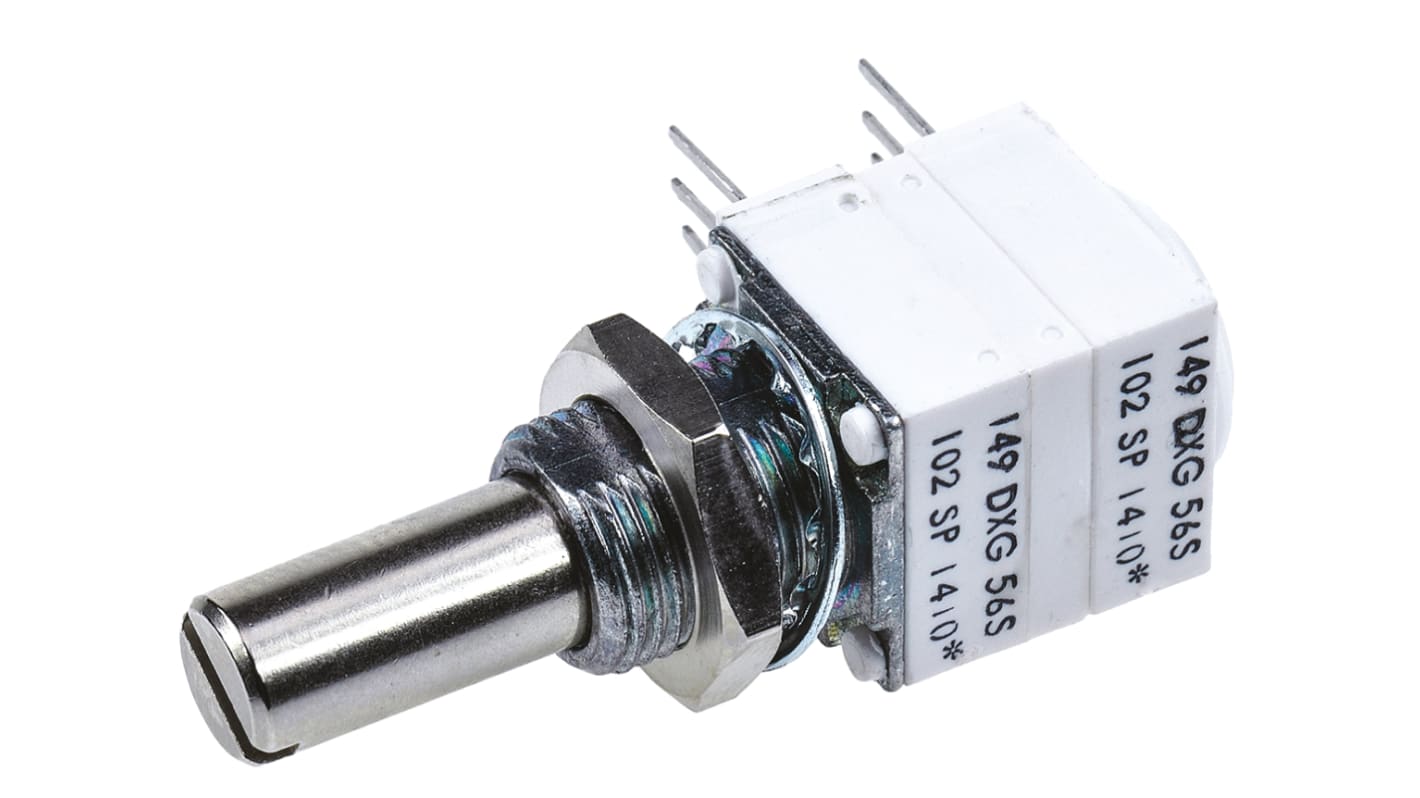

This image is representative of the product range

18 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$46.92

(exc. GST)

$51.61

(inc. GST)

Units	Per unit
1 - 14	$46.92
15 - 29	$46.40
30 +	$45.39

RS Stock No.:: 484-9231
Mfr. Part No.:: 14920F0GJSX13102KA
Brand:: Vishay

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

Vishay 149 Series Potentiometers

1/2" (12.7 mm) Conductive Plastic and Cermet Potentiometer

• Cermet element
• Low temperature coefficient (± 150 ppm/°C)
• Single turn potentiometer
• Single track, dual track or single track switched versions
• Excellent stability
• Smooth feel
• Temperature stable
• Panel and PCB mountable
• Robust construction
• Metal bush and shaft
• Common lead is pin 3 on switched products
• Robust construction
• High rotational life (50 000 cycles)
• Up to three sections PC support plates
• Rotary switches and solder lugs terminals available
• Tests according to CECC 41000 or IEC 60393-1

Supplied with

metal lock washer and nut.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Potentiometer Type	Rotary
Maximum Resistance	1kΩ
Number of Gangs	2
Number of Turns	1
Power Rating	1W
Electrical Taper	Linear
Element Material	Cermet
Mounting Type	Panel Mount, Through Hole
Termination Style	Pin
Shaft Length	22.2mm
Shaft Diameter	6.35 mm
Actuator Type	Slotted Shaft
Series	149
Tolerance	±10%
