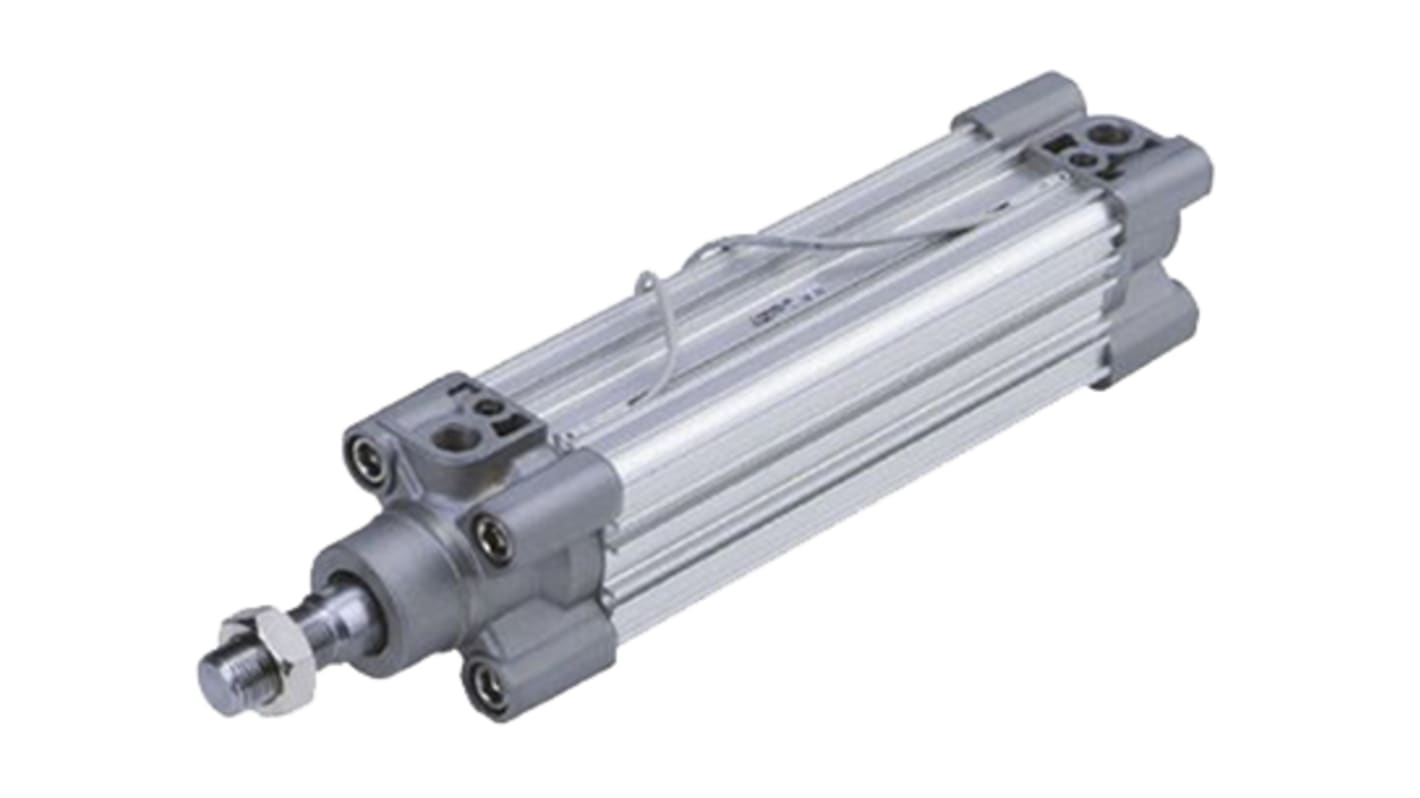

SMC Pneumatic Piston Rod Cylinder - CP96 Series, Double Acting Acting
- RS Stock No.:
- 916-6780
- Distrelec Article No.:
- 300-57-383
- Mfr. Part No.:
- CP96SDB40-500C
- Brand:
- SMC
Subtotal (1 unit)*
$271.49
(exc. GST)
$298.64
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $271.49 |
*price indicative
- RS Stock No.:
- 916-6780
- Distrelec Article No.:
- 300-57-383
- Mfr. Part No.:
- CP96SDB40-500C
- Brand:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | CP96 | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Action Type | Double Acting | |
| Cushioning Type | Air Cushion | |
| Body Material | Cushion Seal Holder, Aluminium Die Cast (Rod Cover), Steel (Tie Rod Nut), Aluminium Alloy (Cylinder Tube), Tie-Rod, Cushion Ring A/B, Rod End Nut, Carbon Steel (Piston Rod) | |
| Length | 663mm | |
| Maximum Piston Speed | 1000mm/s | |
| Piston Rod Thread Standard | ISO 8139, ISO 8140 | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO 15552 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series CP96 | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Action Type Double Acting | ||
Cushioning Type Air Cushion | ||
Body Material Cushion Seal Holder, Aluminium Die Cast (Rod Cover), Steel (Tie Rod Nut), Aluminium Alloy (Cylinder Tube), Tie-Rod, Cushion Ring A/B, Rod End Nut, Carbon Steel (Piston Rod) | ||
Length 663mm | ||
Maximum Piston Speed 1000mm/s | ||
Piston Rod Thread Standard ISO 8139, ISO 8140 | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO 15552 | ||
Non Compliant
CP96-C Double Acting Cylinder
The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.
CP96 Series
