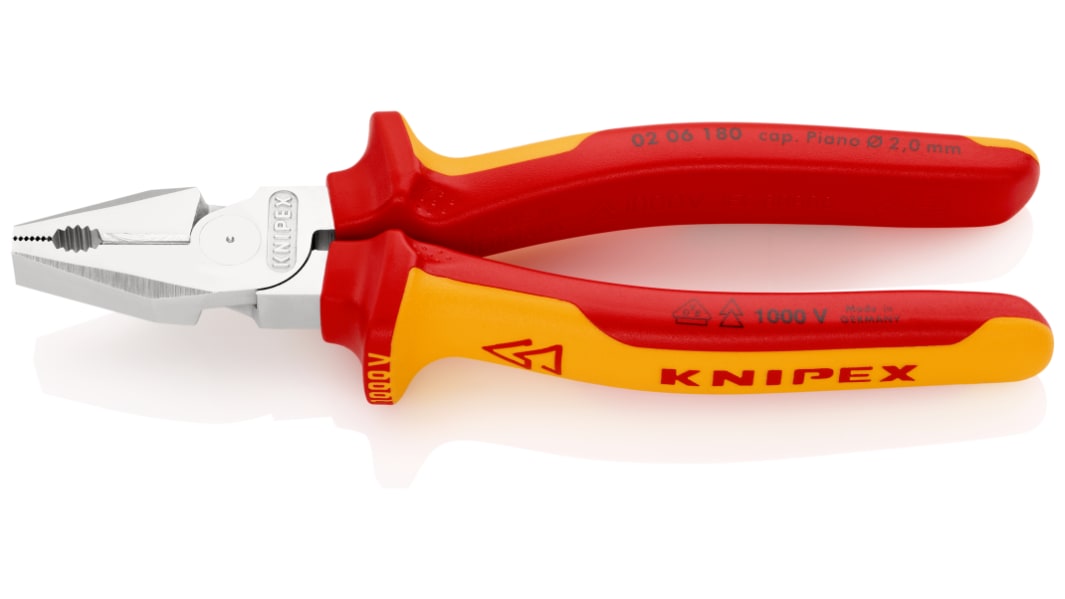

Knipex 180 mm Tool Steel Pliers

  • RS Stock No. 158-5293
  • Mfr. Part No. 02 06 180
  • Manufacturer Knipex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

VDE High Leverage Combination Pliers

Manufactured using immersed insulation process. Soft cushioned grip. Excellent mechanical and electrical properties over temperature range -25°C to +70°C. Tested to 10 000V. Insulation material positively bonded to tools and tested at tensile load of 500N after storage for 168 hours at 70°C. Material tested for low flammability. Designed to protect user against accidental contact, flashover when working on or adjacent to energised systems.

35% saving in power due to new, improved lever action
Versatile use due to gripping zones for flat and round material
Separate cutting edges for soft, hard and piano wire, and long cutting edges for thicker cables
Cutting edges additionally induction hardened, edge hardness approx. 64 HRC
Made from high grade special tool steel, oil-hardened and tempered
Chrome-plated head with two-colour two-component handles
VDE-tested and conforms to IEC 900 1000 V
Overall length 180mm

Approvals

VDE

Specifications
Attribute Value
Plier Type Combination Pliers
Cutting Capacity Hard Wire: 2.5 mm; Piano Wire: 2 mm; Standard Wire: 11.5 mm
Tip Style Straight
Overall Length 180 mm
Material Cutting Capability Hard Wire; Piano Wire; Stranded Wire
Material Tool Steel
14 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
Was $74.19
$ 64.18
(exc. GST)
$ 70.60
(inc. GST)
units
Per unit
1 +
$64.18
