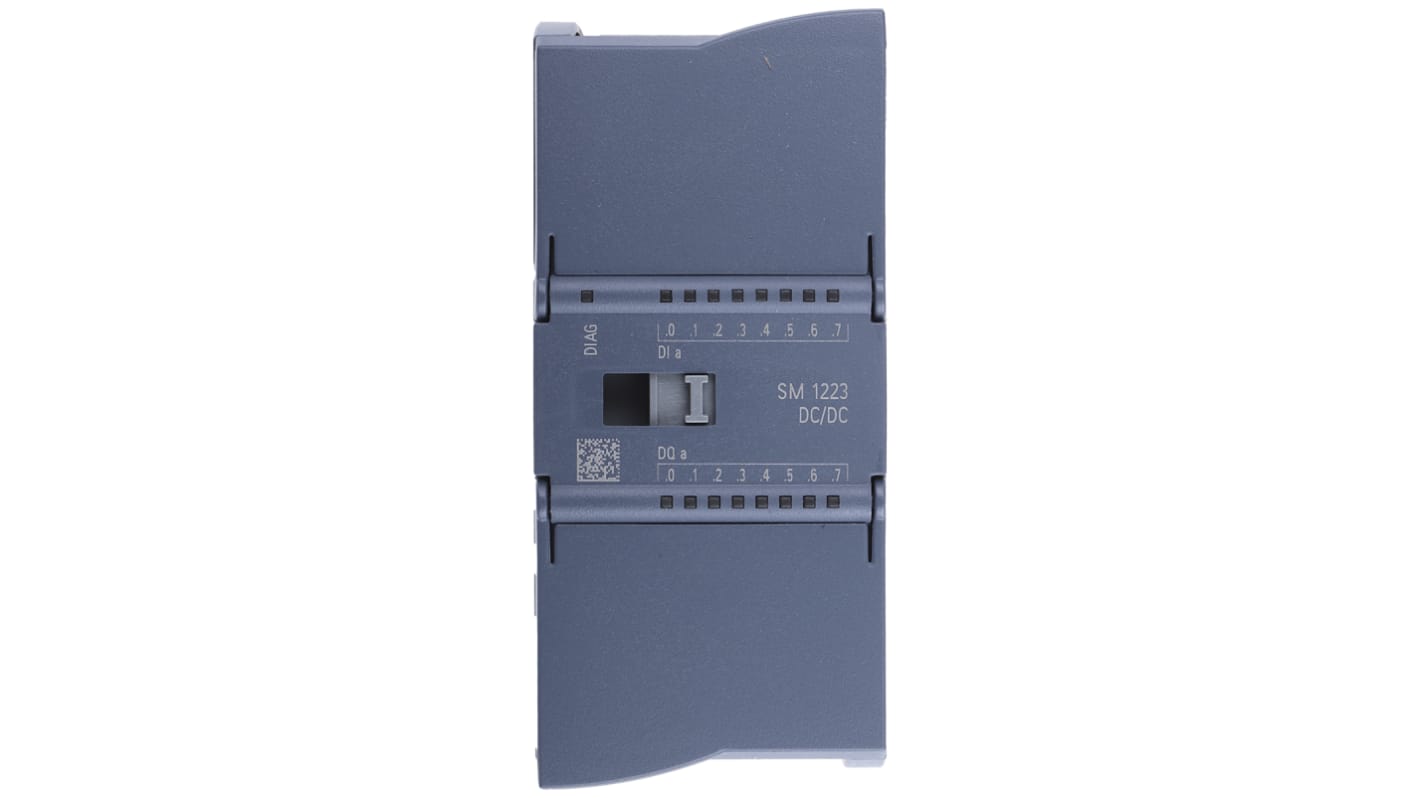

Siemens PLC I/O Module SM 1223 Digital 28.8V
- RS Stock No.:
- 787-7964
- Distrelec Article No.:
- 110-48-549
- Mfr. Part No.:
- 6ES7223-1BH32-0XB0
- Brand:
- Siemens
Subtotal (1 unit)*
$685.97
(exc. GST)
$754.57
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 41 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $685.97 |
*price indicative
- RS Stock No.:
- 787-7964
- Distrelec Article No.:
- 110-48-549
- Mfr. Part No.:
- 6ES7223-1BH32-0XB0
- Brand:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Module Type | Digital I/O Module | |
| Product Type | PLC I/O Module | |
| Input Type | Digital | |
| Maximum Supply Voltage | 28.8V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA, UL, cULus, FM, CE | |
| Length | 100mm | |
| Series | SM 1223 | |
| Width | 45mm | |
| Depth | 75mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Module Type Digital I/O Module | ||
Product Type PLC I/O Module | ||
Input Type Digital | ||
Maximum Supply Voltage 28.8V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA, UL, cULus, FM, CE | ||
Length 100mm | ||
Series SM 1223 | ||
Width 45mm | ||
Depth 75mm | ||
- COO (Country of Origin):
- DE
Siemens PLC I/O Module, Digital Input/Output Type, 8 Inputs - SIMATIC Series - 6ES7223-1BH32-0XB0
For flexible control of your industrial automation and robotics tasks, choose this digital I/O signal module from Siemens. You can use it with any CPU from the SIMATIC S7-1200 range to extend your PLC's configuration limits as needed. The unit has 8 digital inputs and 8 outputs, which are galvanically isolated to protect your equipment in case of a fault. For flexible use, inputs can be connected via sink or source configurations depending on your requirements. Compact dimensions of 75mm (L) x 45 (W) x 100mm (H) save space on a busy control panel.
• IP20 rating indicates it's safe to touch without the risk of electric shocks
• Quick and easy mounting on a DIN rail
• LED indicators and integrated diagnostics functions simplify fault detection for straightforward maintenance
Can this product be used in harsh environments?
Yes – a durable thermoplastic housing offers protection against corrosion and an operating temperature range of -40°C to +70°C means this module can withstand the stresses of a demanding industrial setting. It's also marine approved, so it can be safely used for maritime applications.
