ABB PLC I/O Module
- RS Stock No.:
- 715-8917
- Mfr. Part No.:
- 2CDG110025R0011 DG/S8.1
- Manufacturer:
- ABB
View all PLC Accessories
On back order for despatch 08/11/2022, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$1,380.49
(exc. GST)
$1,518.54
(inc. GST)
| units | Per unit |
| 1 + | $1,380.49 |
- RS Stock No.:
- 715-8917
- Mfr. Part No.:
- 2CDG110025R0011 DG/S8.1
- Manufacturer:
- ABB
- COO (Country of Origin):
- DE
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

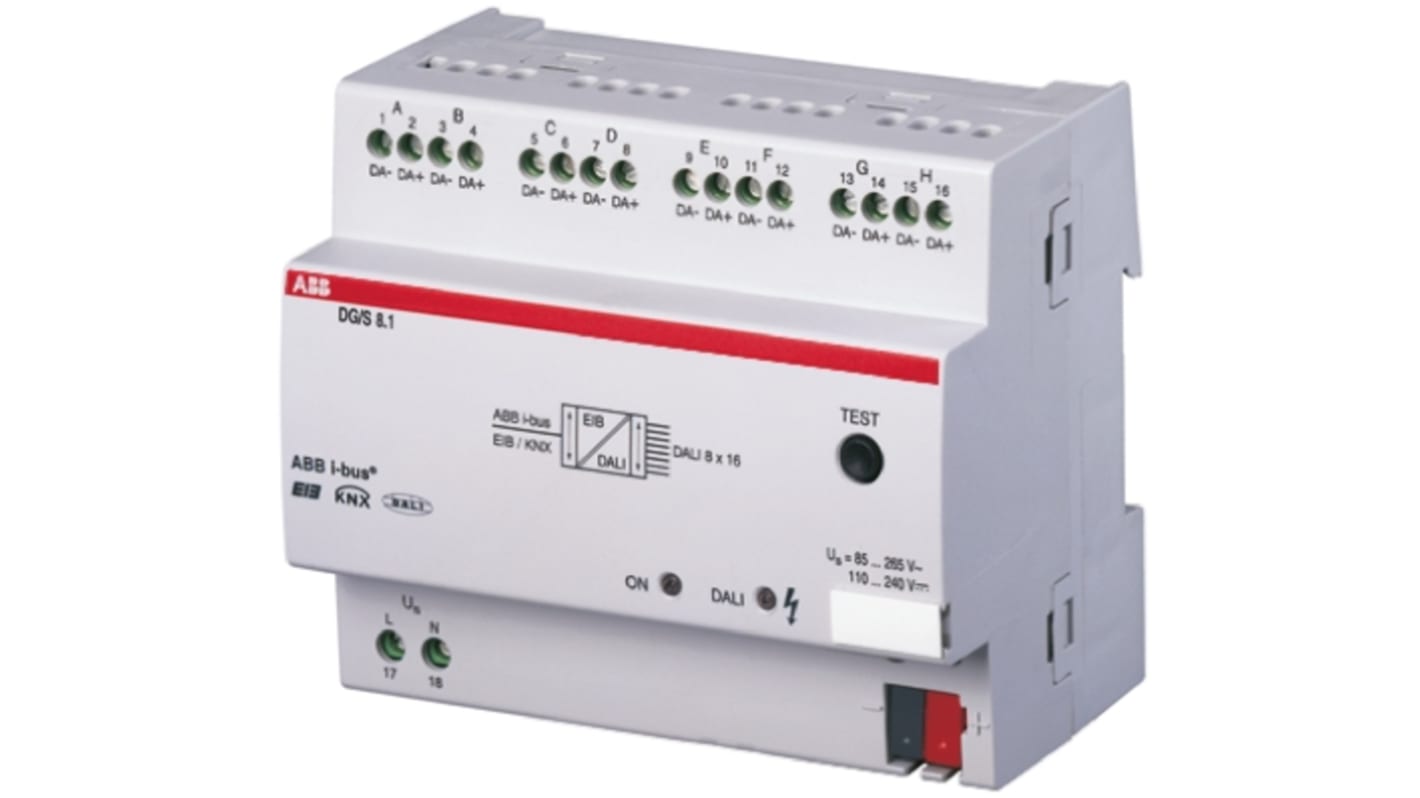

ABB KNX DG/S8.1 Dali Gateway
a DIN rail mounted device for insertion in the distribution board on a DIN rail
used to control DALI devices e.g. electronic ballasts, transformers, relays etc. via the KNX
Up to 128 DALI devices (max. 16 per output) can be connected to 8 independent DALI outputs (channels)
Each output can also be switched in sequence without a KNX connection using the test button
The following functions can be implemented: Per channel: switching, dimming, value setting, slave mode, lamp burning, status value, electronic ballast and lamp failure
Management of up to 16 lightscenes
The DALI power supply is integrated in the gateway
used to control DALI devices e.g. electronic ballasts, transformers, relays etc. via the KNX
Up to 128 DALI devices (max. 16 per output) can be connected to 8 independent DALI outputs (channels)
Each output can also be switched in sequence without a KNX connection using the test button
The following functions can be implemented: Per channel: switching, dimming, value setting, slave mode, lamp burning, status value, electronic ballast and lamp failure
Management of up to 16 lightscenes
The DALI power supply is integrated in the gateway
ABB KNX
Specifications
| Attribute | Value |
| Accessory Type | PLC I/O Module |
