RS PRO Black Plastic Sheet, 500mm x 500mm x 20mm

RS Stock No.:: 193-5452
Brand:: RS PRO

RS PRO Black Plastic Sheet, 500mm x 500mm x 20mm

11 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Lot of 1

$350.16

(exc. GST)

$385.18

(inc. GST)

Lot(s)	Per Lot
1 - 14	$350.16
15 - 74	$340.35
75 +	$280.13

RS Stock No.:: 193-5452
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

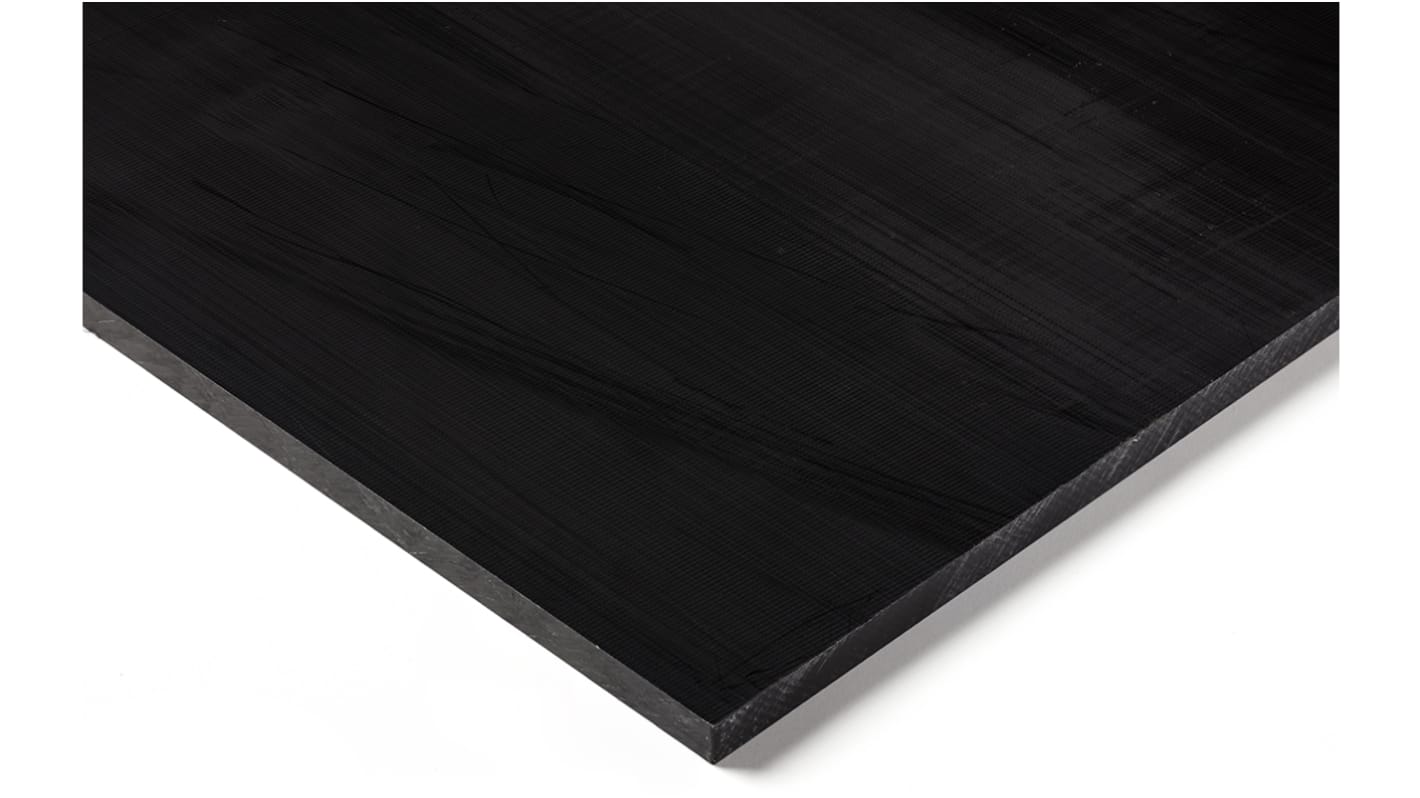

MoS₂ Filled Cast Nylon 6 Sheet, 500 mm x 500 mm x 20mm

A high quality and durable Cast Nylon sheet with a Molybdenum Disulphide (MoS₂) with a tensile strength of 82 MPa.

Made from Cast Nylon 6 the sheet has a high level of mechanical strength, is resistant to common oils and fuels, abrasion and is ultra-violet light resistant.

The Cast Nylon sheet is electrically insulating and is safe for use at temperatures up to +170°C with melting point of +217°C.

Low friction and self lubricating the Molybdenum Disulphide Cast Nylon 6 sheet has good slide and wear properties, good damping properties and is suitable for the creation of bushes, bearings, gears and wheels.

Features and Benefits

Cast Nylon 6 sheet

Molybdenum Disulphide filler

500 x 500 x 20mm

High mechanical strength

Flame retardant

Good slide and wear properties

Resistance to common oils, greases and fuels

Resistant to all common solvents

Standards and Approvals: DIN 5014, ISO 9001

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.

Nylatron® / MoS₂ Filled Nylon

These materials are abrasion resistant and self-lubricating and have reasonably good chemical resistance to weak acids.

Specifications

Attribute	Value
Form	Full
Colour	Black
Length	500mm
Width	500mm
Thickness	20mm
Material	Nylon
Laminated	No
Density	1.15g/cm³
Tensile Strength	75 MPa
Hardness	170 Ball Indentation
Flammability Rating	UL 94 HB
Water Absorption	6%
Thermal Conductivity	0.33W/mK
Maximum Operating Temperature	+170°C
Elongation	60%
Melting Point	217°C
