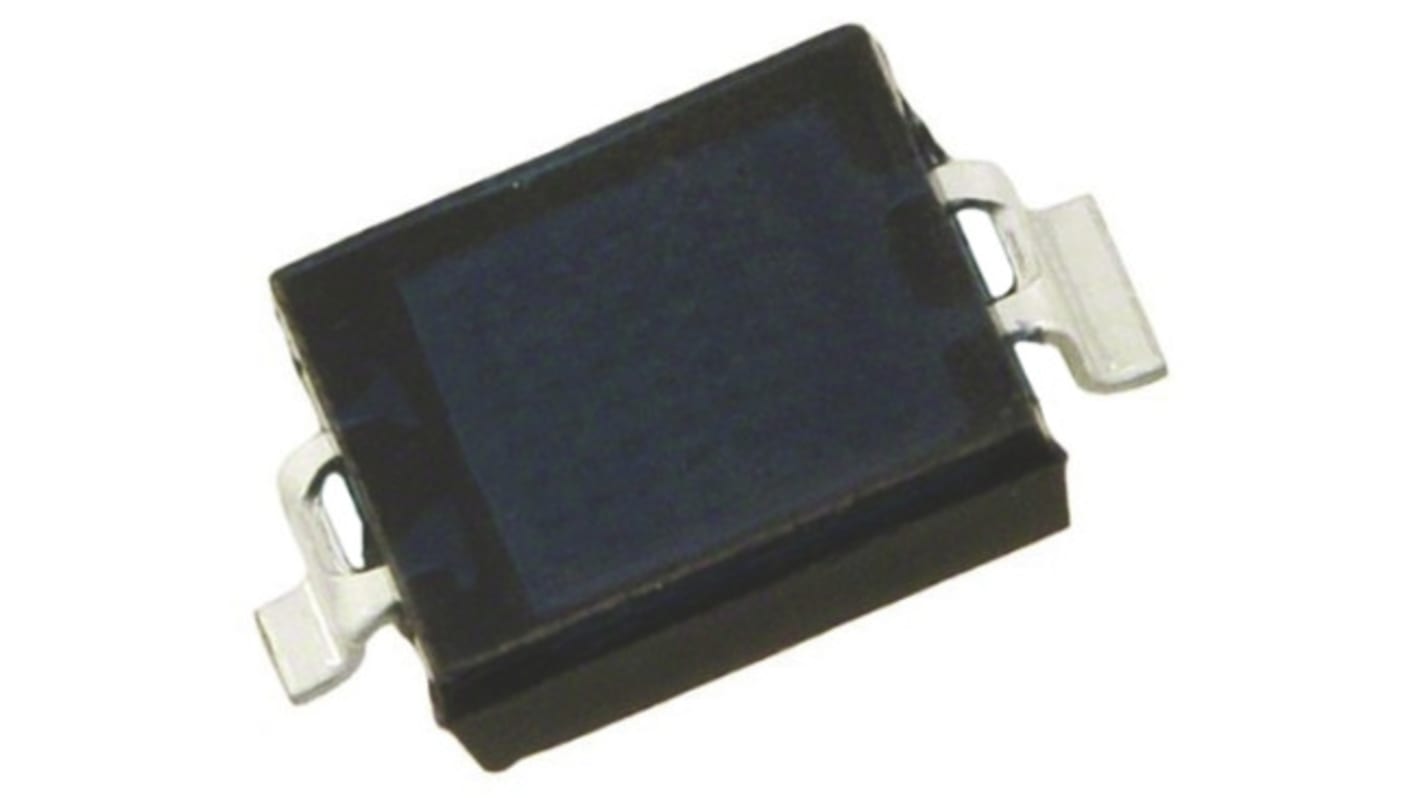

Vishay, VBPW34FAS IR Si Photodiode, Surface Mount GW
- RS Stock No.:
- 768-9408
- Mfr. Part No.:
- VBPW34FAS
- Brand:
- Vishay
1900 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$1.716
(exc. GST)
$1.888
(inc. GST)
| Units | Per unit | Per Bag* |
| 5 - 245 | $1.716 | $8.58 |
| 250 - 495 | $1.672 | $8.36 |
| 500 + | $1.648 | $8.24 |
| *price indicative | ||
- RS Stock No.:
- 768-9408
- Mfr. Part No.:
- VBPW34FAS
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
Product Details
VBPW34 Series PIN Photodiodes
The VBPW34 series, from Vishay Semiconductor, are a family of surface mount (SMD) silicon PIN photodiodes. They are available with gull-wing or reverse gull-wing lead types. The VBPW34 series are suitable for high speed IR detectors, IR remote control and air data transmission system applications.
Features of the VBPW34 PIN photodiodes:
Surface mount (SMD) black package
GW or RGW leads
Dimensions: 6.4 x 3.9 x 1.2 mm
Radiant sensitive area: 7.5 mm²
High radiant sensitivity
Fast response times
Angle of half intensity: 65°
Surface mount (SMD) black package
GW or RGW leads
Dimensions: 6.4 x 3.9 x 1.2 mm
Radiant sensitive area: 7.5 mm²
High radiant sensitivity
Fast response times
Angle of half intensity: 65°
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Photodiodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 950nm |
| Package Type | GW |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 780nm |
| Maximum Wavelength Detected | 1050nm |
| Length | 4.4mm |
| Width | 3.9mm |
| Height | 1.2mm |
| Angle of Half Sensitivity | ±65 ° |
