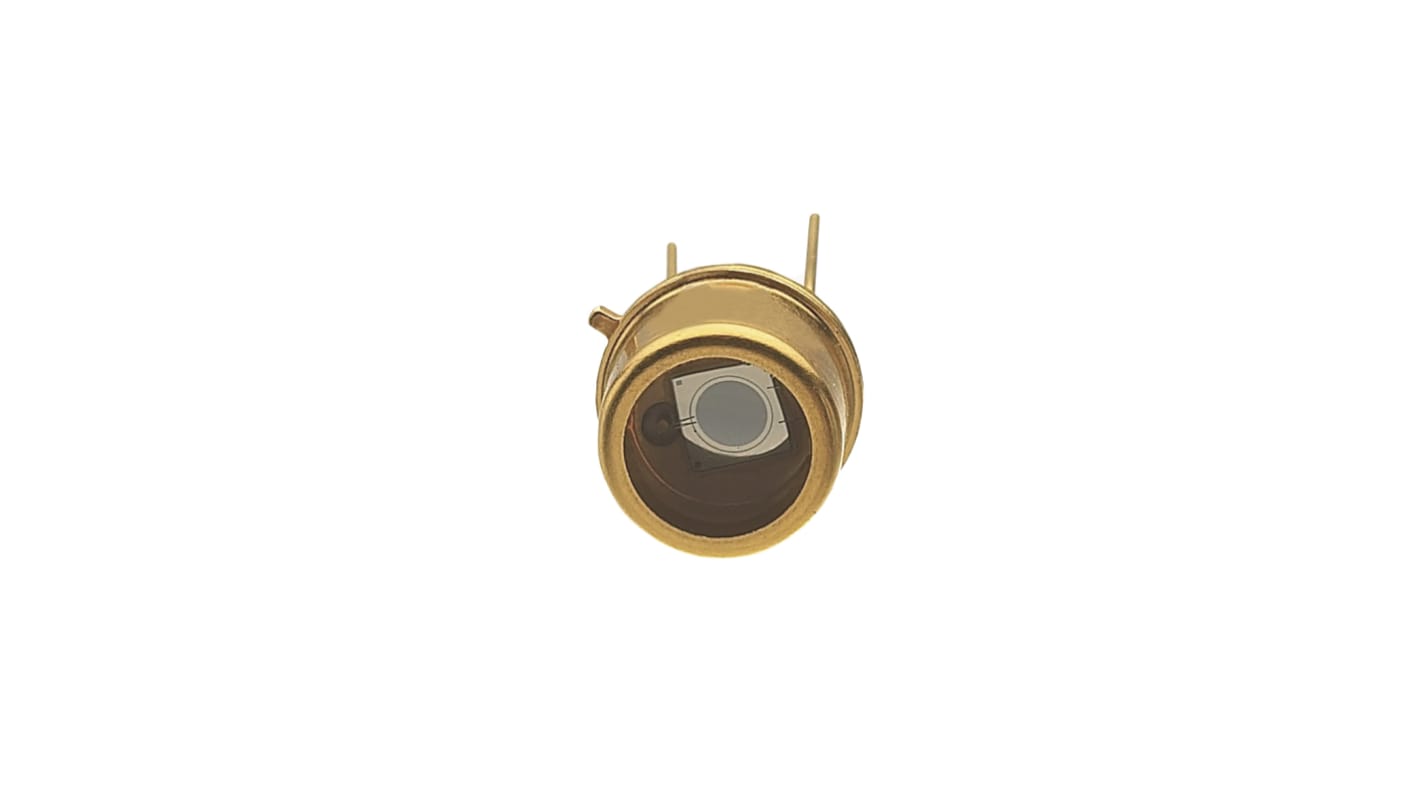

OSI Optoelectronics, PIN-5D IR Si Photodiode, Through Hole TO-5
- RS Stock No.:
- 183-7132
- Mfr. Part No.:
- PIN-5D
- Brand:
- OSI Optoelectronics
On back order for despatch 15/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tray of 10)
$56.487
(exc. GST)
$62.136
(inc. GST)
| Units | Per unit | Per Tray* |
| 10 - 10 | $56.487 | $564.87 |
| 20 - 30 | $55.074 | $550.74 |
| 40 + | $54.225 | $542.25 |
| *price indicative | ||
- RS Stock No.:
- 183-7132
- Mfr. Part No.:
- PIN-5D
- Brand:
- OSI Optoelectronics
Technical data sheets
Legislation and Compliance
Product Details
High Speed Response
Low Capacitance
Low Dark Current
Wide Dynamic Range
High Responsivity
APPLICATIONS
Pulse Detectors
Optical Communications
Bar Code Readers
Optical Remote Control
Medical Equipment
High Speed Photometry
Low Capacitance
Low Dark Current
Wide Dynamic Range
High Responsivity
APPLICATIONS
Pulse Detectors
Optical Communications
Bar Code Readers
Optical Remote Control
Medical Equipment
High Speed Photometry
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 970nm |
| Package Type | TO-5 |
| Amplifier Function | No |
| Mounting Type | Through Hole |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Height | 0.18in |
| Peak Photo Sensitivity | 0.65A/W |
| Diameter | 9.14mm |
| Series | PIN |
| Polarity | Reverse |
| Typical Rise Time | 12ns |
