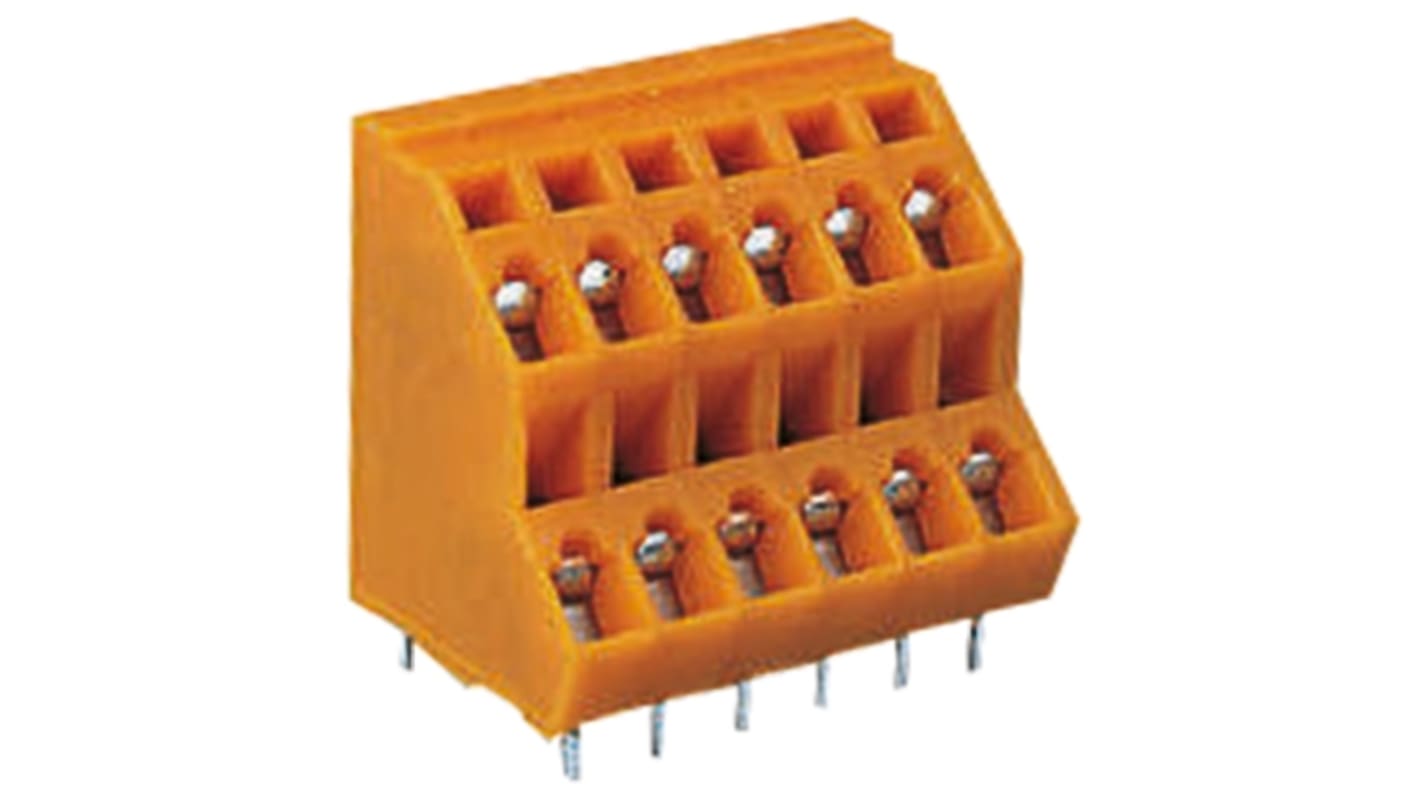

WAGO 736 Series PCB Terminal Block, 12-Contact, 5.08 mm Pitch, 2 Row, 736-306
- RS Stock No.:
- 178-6711
- Distrelec Article No.:
- 304-30-888
- Mfr. Part No.:
- 736-306
- Brand:
- WAGO
Bulk discount available
Subtotal (1 pack of 5 units)*
$94.43
(exc. GST)
$103.875
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 165 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 370 | $18.886 | $94.43 |
| 375 - 1995 | $18.66 | $93.30 |
| 2000 + | $17.98 | $89.90 |
*price indicative
- RS Stock No.:
- 178-6711
- Distrelec Article No.:
- 304-30-888
- Mfr. Part No.:
- 736-306
- Brand:
- WAGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 12 | |
| Pitch | 5.08mm | |
| Current | 21A | |
| Number of Rows | 2 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 320V | |
| Depth | 21mm | |
| Length | 31.48mm | |
| Width | 26.5mm | |
| Series | 736 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 12 | ||
Pitch 5.08mm | ||
Current 21A | ||
Number of Rows 2 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 320V | ||
Depth 21mm | ||
Length 31.48mm | ||
Width 26.5mm | ||
Series 736 | ||
Standards/Approvals No | ||
Double Level Terminals
Doubled stacked PCB cage clamp connectors
Providing a reliable safe connection
Suitable for solid, stranded or flexible conductor
Greater packing density on PCB
Angled conductor entry optimises cable entry options
Integral test point
Wire size 0.08 - 2.5mm² (awg 28-12)
Conductor contact length 5-6mm
Current Rating 12A
Voltage Rating 400V
