Dialight 550-0507F, Red Right Angle PCB LED Indicator, Through Hole 7.5 V

RS Stock No.:: 546-0687
Mfr. Part No.:: 550-0507F
Brand:: Dialight

Dialight 550-0507F, Red Right Angle PCB LED Indicator, Through Hole 7.5 V

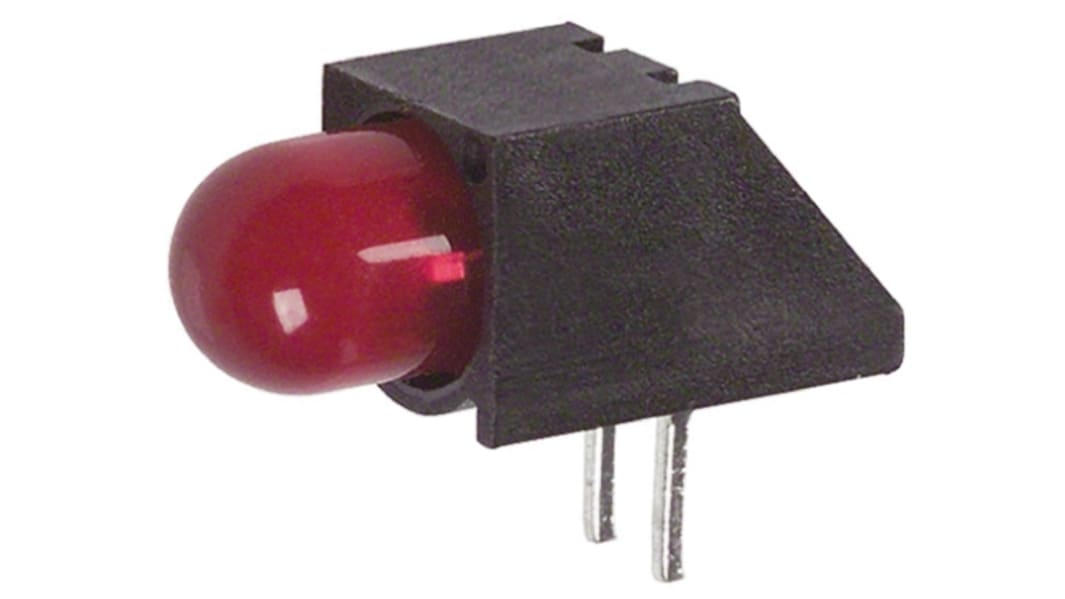

This image is representative of the product range

176 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$1.92

(exc. GST)

$2.11

(inc. GST)

Units	Per unit
1 - 24	$1.92
25 - 49	$1.88
50 +	$1.86

RS Stock No.:: 546-0687
Mfr. Part No.:: 550-0507F
Brand:: Dialight

Technical data sheets

Legislation and Compliance

Product Details

Dialight 550-xx07 Series LED CBI® Circuit Board Indicators

The 550-xx07, from Dialight, are LED circuit board indicators from their CBI® family. They contain one 5mm through-hole LED in a black plastic housing with a sloped back. Their black housings enable a high contrast and housing standoffs help with the cleaning of the PCB. They are available in general purpose, integral resistor, low current, high efficiency, bi-colour and super bright LED options.

Features of the 550-xx07 PCB LED indicators:
1 x 5mm LED
Through-hole mounting
Variety of colour options
Black plastic housing
Sloped back with standoffs
Compatible with 550-xx07 dual block and 550-xx07-004 quad block

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

PCB LED Indicators, Dialight

Specifications

Attribute	Value
LED Colours	Red
Number of LEDs	1
Mounting Type	Through Hole
Supply Voltage	7.5 V
Number of Pins	2
Viewing Angle	60 °
Dominant Wavelength	655 nm
LED Orientation	Right Angle
Dimensions	13.85 x 6.22 x 6.22mm
Length	13.85mm
Width	6.22mm
Height	6.22mm
Intensity	2mcd
