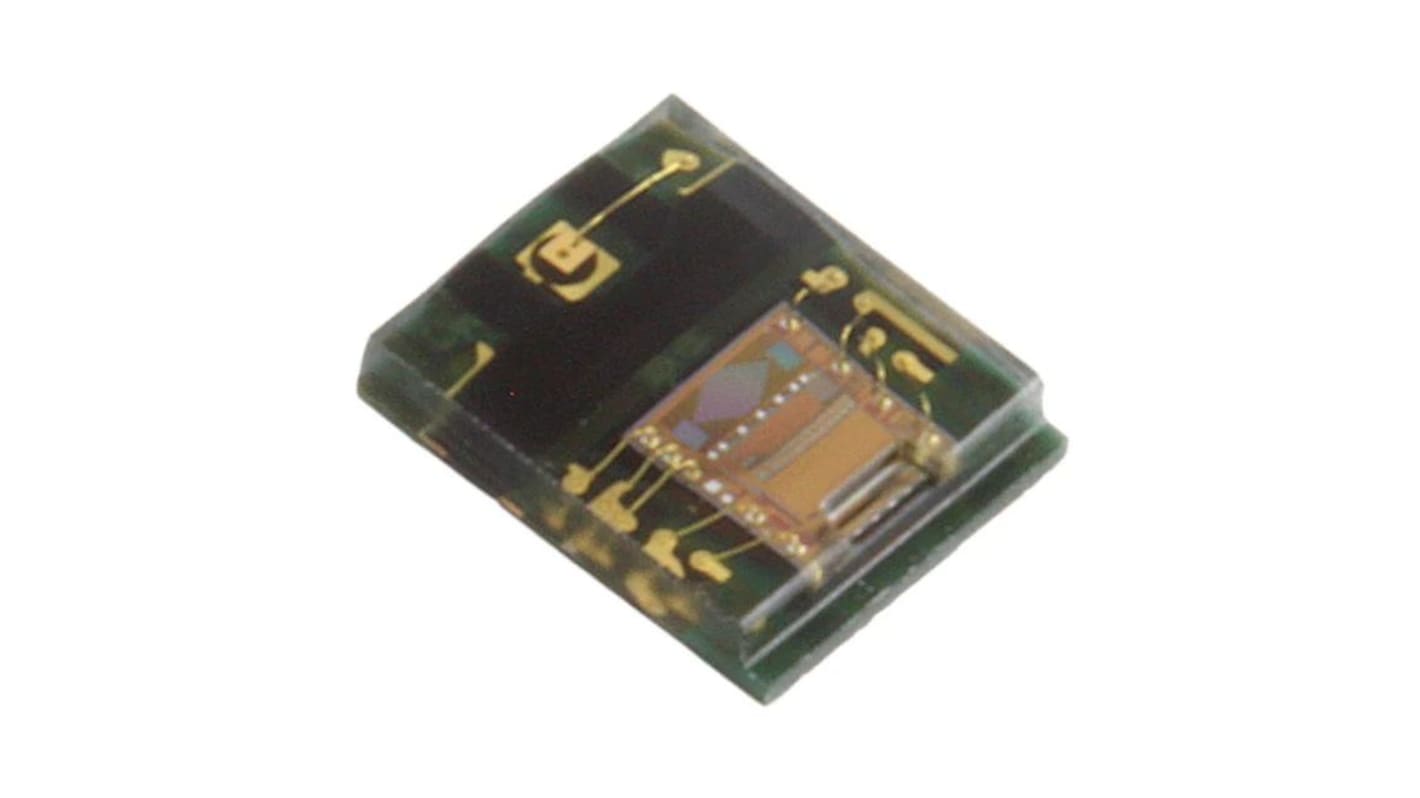

Broadcom 5V dc 318 LPI Pulse Optical Encoder, Surface Mount
- RS Stock No.:
- 215-5735
- Mfr. Part No.:
- AEDR-8723-102
- Brand:
- Broadcom
100 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 100)
$44.257
(exc. GST)
$48.683
(inc. GST)
| Units | Per unit | Per Reel* |
| 100 - 100 | $44.257 | $4,425.70 |
| 200 - 300 | $43.151 | $4,315.10 |
| 400 + | $42.487 | $4,248.70 |
| *price indicative | ||
- RS Stock No.:
- 215-5735
- Mfr. Part No.:
- AEDR-8723-102
- Brand:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
595
The Broadcom AEDR-872x is a 3-channel reflective optical encoder device providing dual channel analog outputs and an index channel digital output. The differential analog outputs (Sin, /Sin, Cos, /Cos) can interface directly with most commercially available interpolator devices for high precision motion control measurements. As such, the device provides great design-in flexibility and can enhance the performance of existing motion control system.
3 Channel Outputs
Dual Channel Analog Outputs
Index Channel Digital Output
Built-in Automatic LED Current Regulation
Encoding Resolution: 318 LPI
Dual Channel Analog Outputs
Index Channel Digital Output
Built-in Automatic LED Current Regulation
Encoding Resolution: 318 LPI
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Pulses Per Revolution | 318 LPI |
| Encoder Reading | Incremental |
| Encoder Signal | 2 Channel Quadrature with Index Digital |
| Supply Voltage | 5V dc |
| Mounting Type | Surface Mount |
