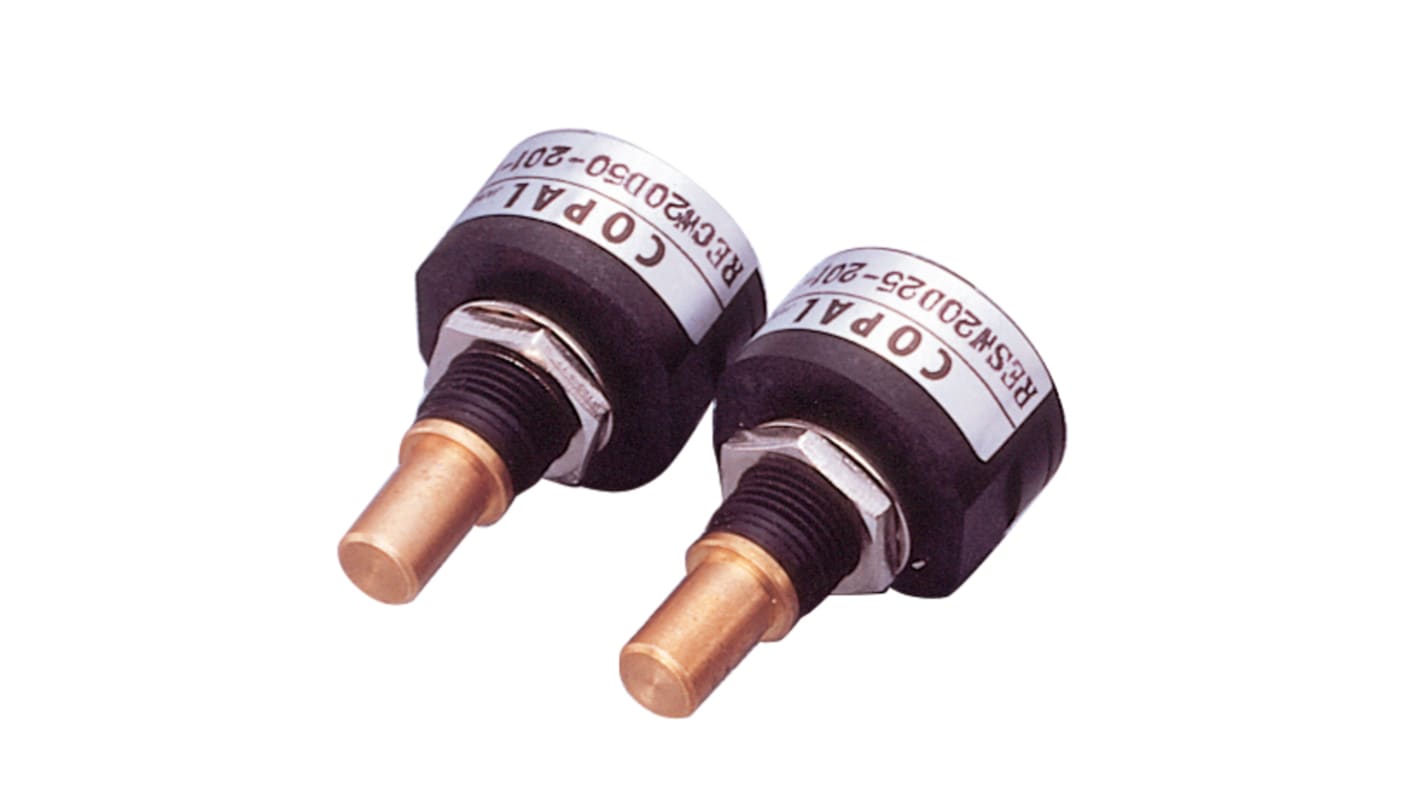

Nidec Components 5V dc 25 Pulse Optical Encoder with a 6 mm Round Shaft, Wire Lead
- RS Stock No.:
- 182-5628
- Mfr. Part No.:
- RESW20D-25-201-1
- Brand:
- Nidec Components
1 In Global stock for delivery within 5 working day(s)
Price (ex. GST) Each
$39.89
(exc. GST)
$43.88
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 4 | $39.89 |
| 5 - 9 | $38.60 |
| 10 + | $37.25 |
- RS Stock No.:
- 182-5628
- Mfr. Part No.:
- RESW20D-25-201-1
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Contactless, manual adjustment only
Compact, light weight
Compact, light weight
Specifications
Attribute | Value |
|---|---|
| Pulses Per Revolution | 25 |
| Encoder Signal | Digital Square Wave |
| Supply Voltage | 5V dc |
| Shaft Diameter | 6 mm |
| Mounting Hole Diameter | M9 |
| Shaft Length | 12mm |
| Shaft Style | Round |
| Termination Style | Wire Lead |
| Current Rating | 50mA |
