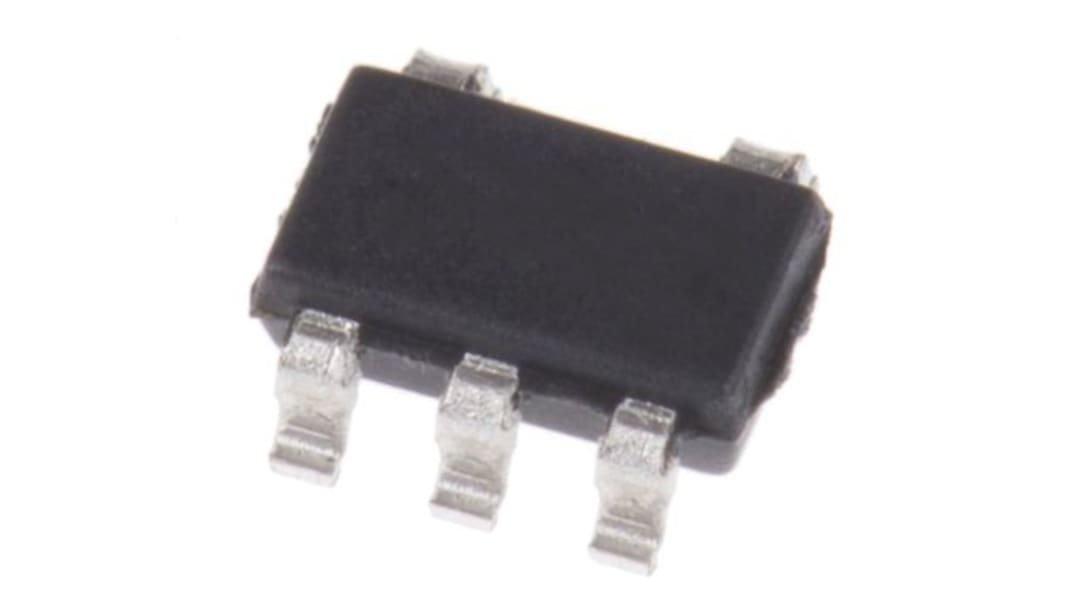

MAX4165EUK+T Maxim Integrated, Operational Amplifier, Op Amps, 5MHz 10 kHz, 2.7 → 6.5 V, 5-Pin SOT-23
- RS Stock No.:
- 190-6622
- Mfr. Part No.:
- MAX4165EUK+T
- Brand:
- Maxim Integrated
1876 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 2)
$7.275
(exc. GST)
$8.003
(inc. GST)
Units | Per unit | Per Pack* |
2 + | $7.275 | $14.55 |
*price indicative |
- RS Stock No.:
- 190-6622
- Mfr. Part No.:
- MAX4165EUK+T
- Brand:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
80mA (min) Output Drive Capability
Rail-to-Rail Input Common-Mode Voltage Range
Rail-to-Rail Output Voltage Swing
1.2mA Supply Current per Amplifier
+2.7V to +6.5V Single-Supply Operation
5MHz Gain-Bandwidth Product
250μV Offset Voltage
120dB Voltage Gain (RL = 100kΩ)
88dB Power-Supply Rejection Ratio
No Phase Reversal for Overdriven Inputs
Unity-Gain Stable for Capacitive Loads to 250pF
Low-Power Shutdown Mode:
Reduces Supply Current to 38μA Places
Outputs in High-Impedance State
Available in 5-Pin SOT23 Package (MAX4165) or 2mm x 2mm x 0.8mm μDFN (MAX4166)
Applications
Automotive Sensors
Base Station/Wireless Infrastructure
Cell Phones
Computers: Desktops, Workstations, and Servers
Computers: Motherboards
Computers: Notebook
Digital-to-Analog Converter Buffers
Hands-Free Car Phones (Kits)
Industrial: Process Measurement and Control
Motor Drivers
Notebook Computers
Panel Meters
Portable Battery-Powered Audio Applications
Portable Headphone Speaker Drivers
Programmable Logic Controllers (PLCs)
Set-Top Boxes
Signal Conditioning
Sound Ports/Cards
Transformer/Line Drivers
Rail-to-Rail Input Common-Mode Voltage Range
Rail-to-Rail Output Voltage Swing
1.2mA Supply Current per Amplifier
+2.7V to +6.5V Single-Supply Operation
5MHz Gain-Bandwidth Product
250μV Offset Voltage
120dB Voltage Gain (RL = 100kΩ)
88dB Power-Supply Rejection Ratio
No Phase Reversal for Overdriven Inputs
Unity-Gain Stable for Capacitive Loads to 250pF
Low-Power Shutdown Mode:
Reduces Supply Current to 38μA Places
Outputs in High-Impedance State
Available in 5-Pin SOT23 Package (MAX4165) or 2mm x 2mm x 0.8mm μDFN (MAX4166)
Applications
Automotive Sensors
Base Station/Wireless Infrastructure
Cell Phones
Computers: Desktops, Workstations, and Servers
Computers: Motherboards
Computers: Notebook
Digital-to-Analog Converter Buffers
Hands-Free Car Phones (Kits)
Industrial: Process Measurement and Control
Motor Drivers
Notebook Computers
Panel Meters
Portable Battery-Powered Audio Applications
Portable Headphone Speaker Drivers
Programmable Logic Controllers (PLCs)
Set-Top Boxes
Signal Conditioning
Sound Ports/Cards
Transformer/Line Drivers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Amplifier Type | Operational Amplifier |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Power Supply Type | Single |
Number of Channels per Chip | 1 |
Pin Count | 5 |
Typical Single Supply Voltage | 2.7 → 6.5 V |
Typical Gain Bandwidth Product | 5MHz |
Output Type | Rail to Rail |
Typical Slew Rate | 2V/µs |
Maximum Operating Frequency | 10 kHz |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Offset Voltage | 1.5mV |
Typical Voltage Gain | 90 (Minimum) dB |
Output Current | 125 (Typ.) mA |
Maximum Input Voltage | 6.5 V |
Length | 3mm |
Input Offset Current | 21nA |
Input Voltage Range | 2.7 → 6.5 V |
Width | 1.75mm |
Height | 1.3mm |
Dimensions | 3 x 1.75 x 1.3mm |
Minimum Input Voltage | 2.7 V |
Typical Input Voltage Noise Density | 26nV/√Hz |
