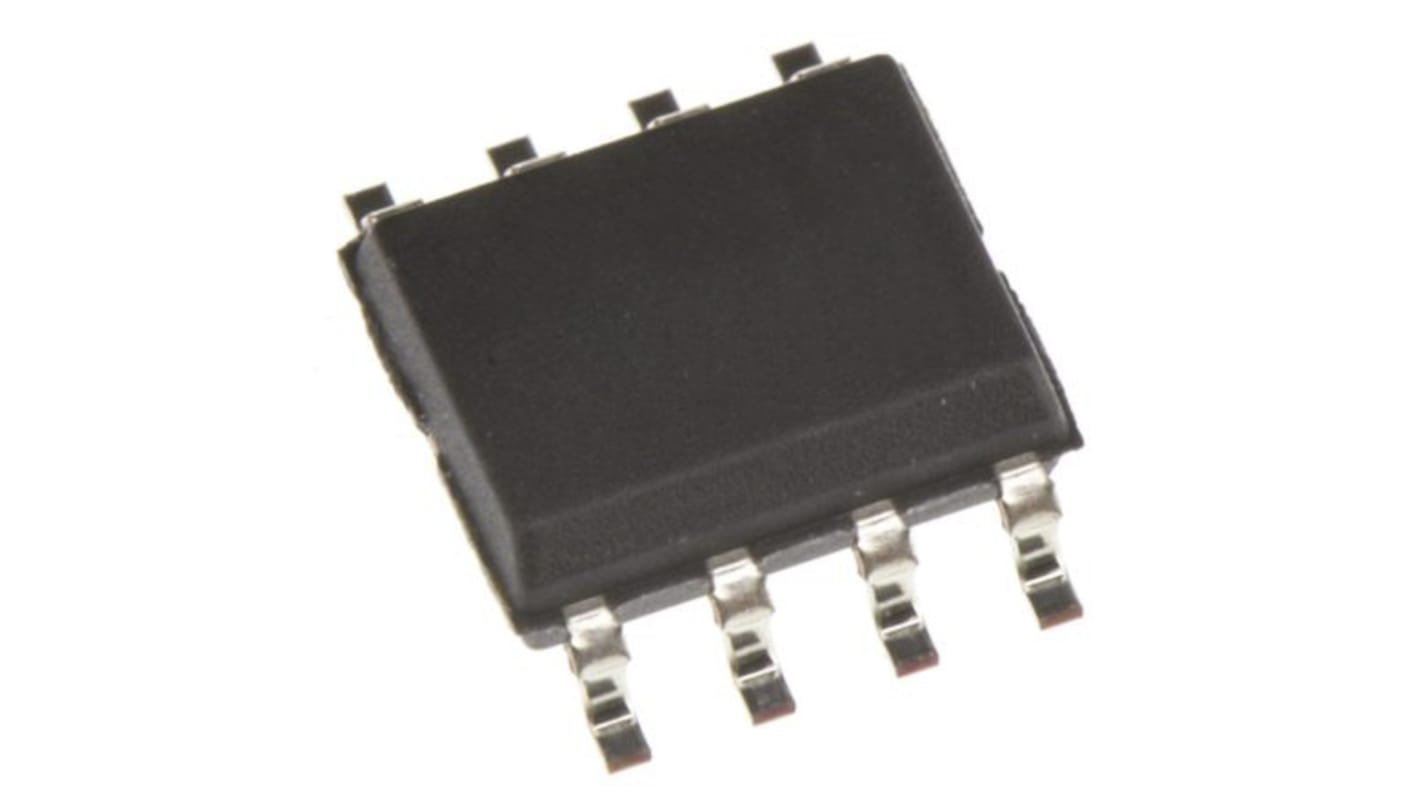

LM258DR2G onsemi, Dual Operational, Op Amp 20 kHz, 3 → 32 V, 8-Pin SOIC
- RS Stock No.:
- 186-9318
- Mfr. Part No.:
- LM258DR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)**
$9.85
(exc. GST)
$10.825
(inc. GST)
3750 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 25 - 600 | $0.394 | $9.85 |
| 625 - 1225 | $0.392 | $9.80 |
| 1250 + | $0.382 | $9.55 |
**price indicative
- RS Stock No.:
- 186-9318
- Mfr. Part No.:
- LM258DR2G
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Amplifier Type | Dual Operational | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 2 | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 3 → 32 V | |
| Maximum Operating Frequency | 20 kHz | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -25 °C | |
| Automotive Standard | AEC-Q100 | |
| Offset Voltage | 7mV | |
| Typical Voltage Gain | 100 V/mV | |
| Maximum Input Voltage | 32 V | |
| Output Current | 20 (Sink) mA, 40 (Source) mA | |
| Dimensions | 5 x 4 x 1.5mm | |
| Width | 4mm | |
| Input Voltage Range | 3 → 32 V | |
| Height | 1.5mm | |
| Input Offset Current | 100nA | |
| Length | 5mm | |
| Minimum Input Voltage | 3 V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Amplifier Type Dual Operational | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Power Supply Type Single | ||
Number of Channels per Chip 2 | ||
Pin Count 8 | ||
Typical Single Supply Voltage 3 → 32 V | ||
Maximum Operating Frequency 20 kHz | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -25 °C | ||
Automotive Standard AEC-Q100 | ||
Offset Voltage 7mV | ||
Typical Voltage Gain 100 V/mV | ||
Maximum Input Voltage 32 V | ||
Output Current 20 (Sink) mA, 40 (Source) mA | ||
Dimensions 5 x 4 x 1.5mm | ||
Width 4mm | ||
Input Voltage Range 3 → 32 V | ||
Height 1.5mm | ||
Input Offset Current 100nA | ||
Length 5mm | ||
Minimum Input Voltage 3 V | ||
