LM2904D STMicroelectronics, Low Power, Op Amp, 1.1MHz, 5 → 28 V, 8-Pin SOIC

RS Stock No.:: 168-6806
Mfr. Part No.:: LM2904D
Brand:: STMicroelectronics

LM2904D STMicroelectronics, Low Power, Op Amp, 1.1MHz, 5 → 28 V, 8-Pin SOIC

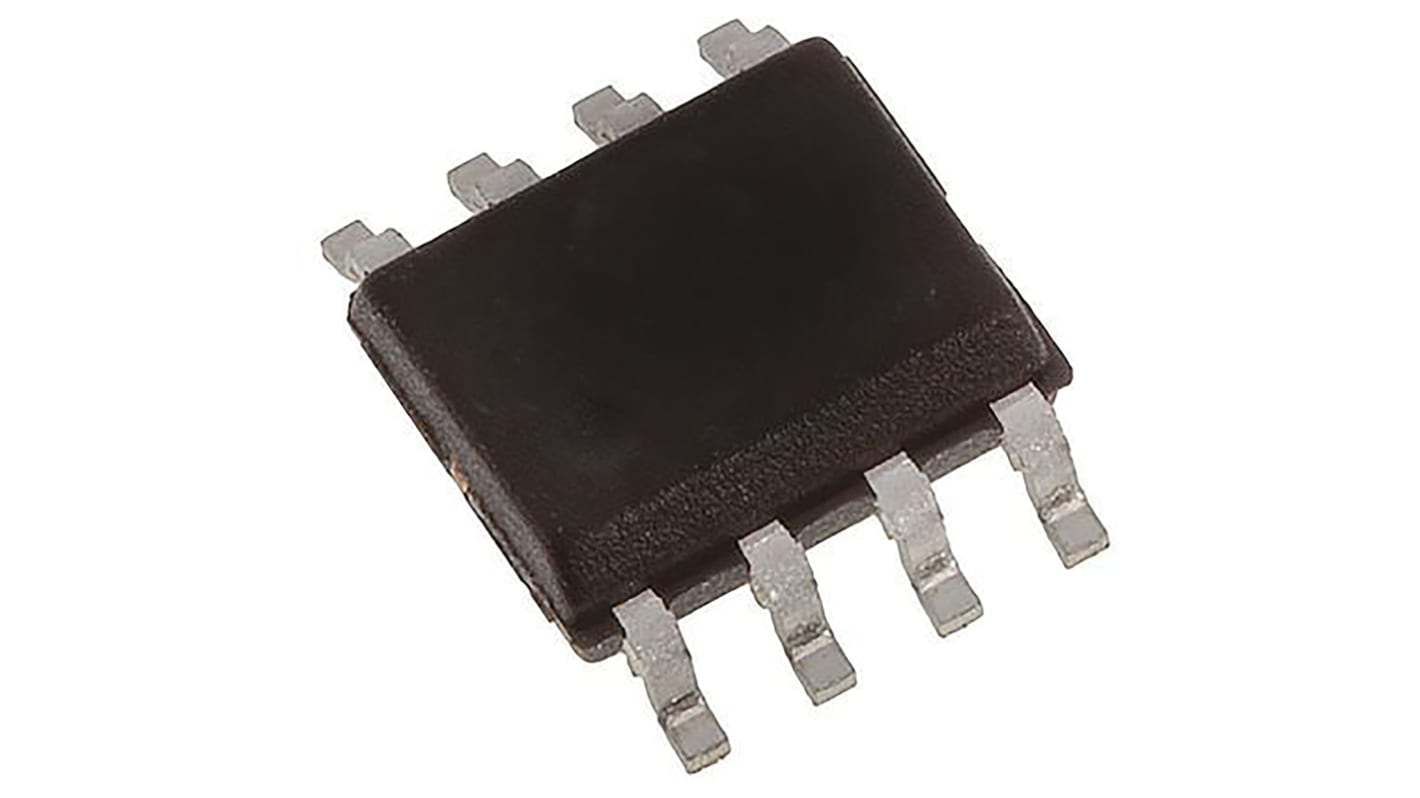

This image is representative of the product range

On back order for despatch 14/04/2025, delivery within 10 working days from despatch date.

Price (ex. GST) Each (In a Tube of 100)

$0.407

(exc. GST)

$0.448

(inc. GST)

Units	Per unit	Per Tube*
100 - 400	$0.407	$40.70
500 +	$0.367	$36.70
*price indicative

RS Stock No.:: 168-6806
Mfr. Part No.:: LM2904D
Brand:: STMicroelectronics

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

LM2904, LM2904W, Low Power, Dual Operational Amplifiers

The LM2904x device contains two independent operational amplifiers with internal frequency compensation.

Gain Bandwidth Product: 1.1MHz
Slew Rate: 0.6V/μs
Max input offset voltage: 9mV (LM2904), 4mV (LM2904A)
LM2904xW parts feature internal ESD protection, 2kV HBM
Power supply: +3V to +30Vdc

RS Product Codes
714-0758 LM2904D SOIC8
714-0767 LM2904DT SOIC8
686-7584 LM2904PT TSSOP8
795-9158 LM2904ST MiniSO8
791-9210 LM2904AYDT Automotive SOIC8
829-4402 LM2904AYPT Automotive TSSOP8
791-9201 LM2904AWYPT Automotive ESD TSSOP8
791-9217 LM2904WHYDT Automotive ESD SOIC8
791-9226 LM2904WYDT Automotive ESD SOIC8
829-4405 LM2904WYPT Automotive ESD TSSOP8

Note

Parts containing 'Y' suffix are automotive qualified to AEC-Q100.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Amplifier Type	Low Power
Mounting Type	Surface Mount
Package Type	SOIC
Power Supply Type	Dual, Single
Number of Channels per Chip	2
Pin Count	8
Typical Single Supply Voltage	5 → 28 V
Typical Gain Bandwidth Product	1.1MHz
Typical Dual Supply Voltage	±12 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate	0.6V/µs
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Rail to Rail	No
Typical Voltage Gain	100 dB
Width	3.9mm
Typical Input Voltage Noise Density	55nV/√Hz
Dimensions	4.9 x 3.9 x 1.25mm
Length	4.9mm
Height	1.25mm
