    LM224AD Texas Instruments, Precision, Op Amp, 1.2MHz, 5 → 28 V, 14-Pin SOIC

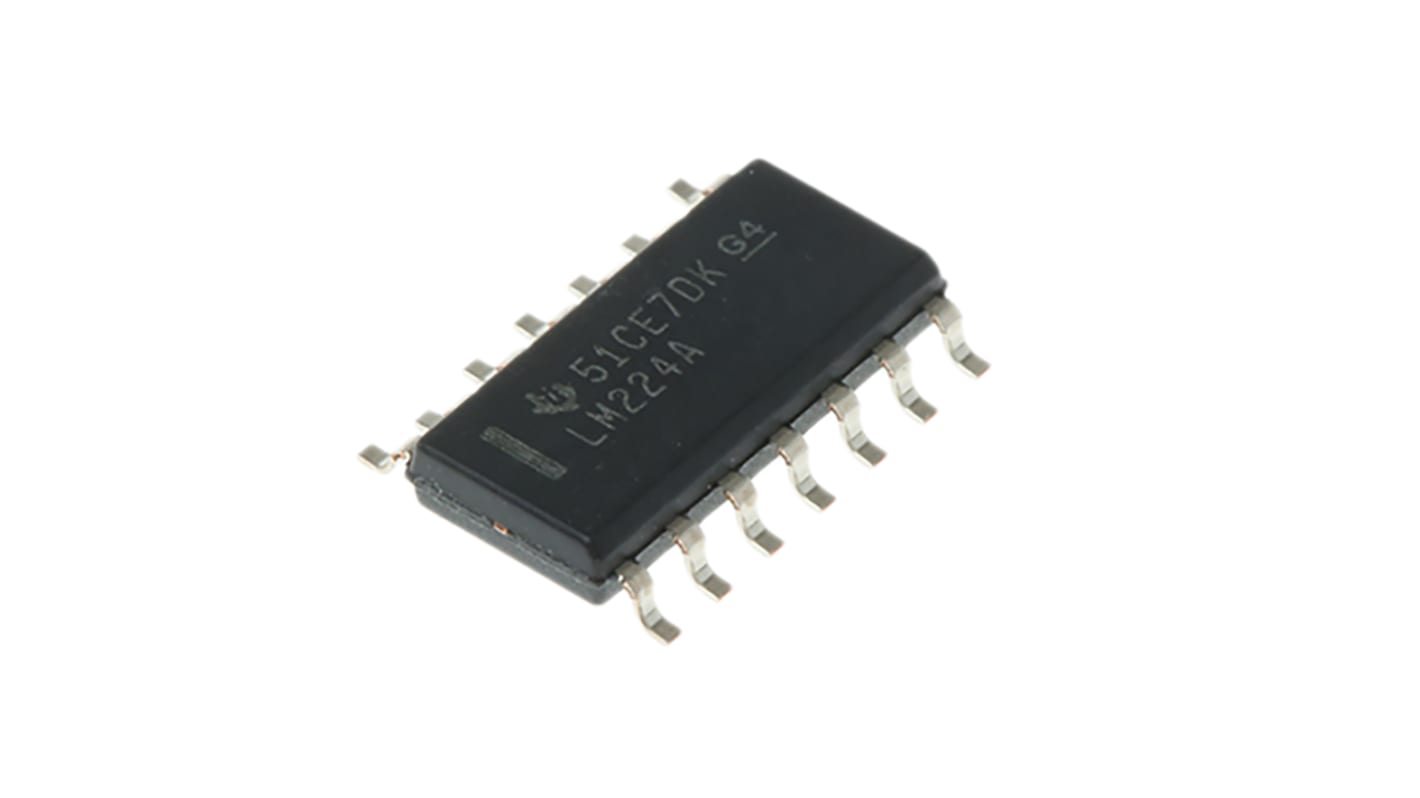

    This image is representative of the product range

    View all Op Amps
    Bulk discount available

    Subtotal (1 tube of 50 units)**

    $42.15

    (exc. GST)

    $46.35

    (inc. GST)

    Add to Basket
    Select or type quantity
    Available for back order.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Tube**
    50 - 200$0.843$42.15
    250 +$0.759$37.95

    **price indicative

    RS Stock No.:
    145-0112
    Mfr. Part No.:
    LM224AD
    Brand:
    Texas Instruments
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Texas Instruments

    Amplifier Type

    Precision

    Mounting Type

    Surface Mount

    Package Type

    SOIC

    Power Supply Type

    Dual, Single

    Number of Channels per Chip

    4

    Pin Count

    14

    Typical Single Supply Voltage

    5 → 28 V

    Typical Gain Bandwidth Product

    1.2MHz

    Typical Dual Supply Voltage

    ±12 V, ±15 V, ±3 V, ±5 V, ±9 V

    Typical Slew Rate

    0.5V/µs

    Maximum Operating Temperature

    85 °C

    Minimum Operating Temperature

    -25 °C

    Rail to Rail

    No

    Typical Voltage Gain

    100 dB

    Length

    8.65mm

    Typical Input Voltage Noise Density

    35nV/√Hz

    Width

    3.91mm

    Height

    1.58mm

    Dimensions

    8.65 x 3.91 x 1.58mm
