Name: Littelfuse SMD Non Resettable Fuse 6A, 24V
Brand: Littelfuse
SKU: 820-7123
Price: 1.70 AUD
Availability: Discontinued

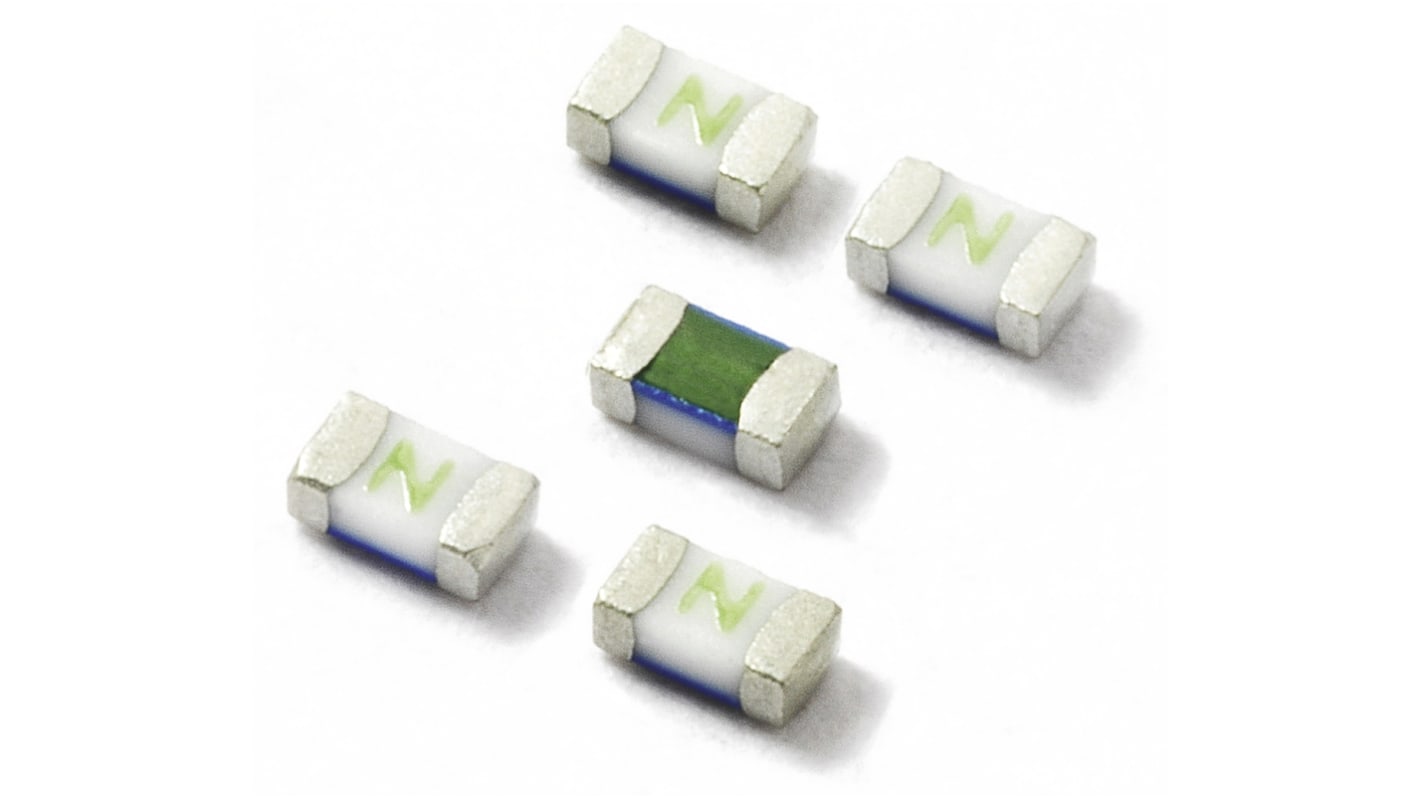

Littelfuse 438 Series Fast Acting Fuses

Littelfuse 438 Series fast acting fuses has been especially designed to provide over current protection to circuits that operate under high working ambient temperatures up to 150ºC. Ideal for handheld electronics, LCD displays, battery packs, hard disk drives and SD memory cards applications.

Operating temperature from -55°C to +150°C
100% Lead-free and RoHS compliant and Halogen-free
Suitable for both leaded and lead-free reflow/wave soldering

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

Select all	Attribute	Value
	Brand	Littelfuse
	Current Rating	6A
	Voltage Rating	24V
	Fuse Speed	F
	Body Material	Ceramic
	Body Length	1.54mm
	Body Width	0.85mm
	Body Height	0.502mm
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+150°C
	Dimensions	1.54 x 0.85 x 0.502mm
	Terminal Material	Nickel, Silver, Tin

	Select all
	Brand Littelfuse
	Current Rating 6A
	Voltage Rating 24V
	Fuse Speed F
	Body Material Ceramic
	Body Length 1.54mm
	Body Width 0.85mm
	Body Height 0.502mm
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +150°C
	Dimensions 1.54 x 0.85 x 0.502mm
	Terminal Material Nickel, Silver, Tin
