TANGO1/1M/SMAM/S/S/4 Siretta - 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi Multi-Band Antenna, SMA

  • RS Stock No. 124-8699
  • Mfr. Part No. TANGO1/1M/SMAM/S/S/4
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

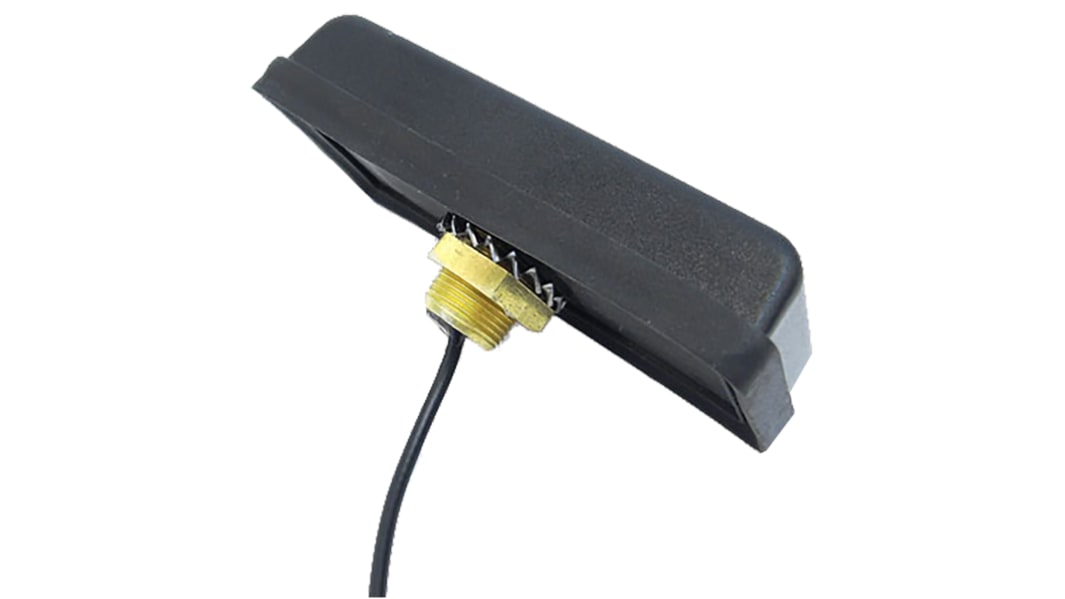

TANGO 1 3G/GSM/GPRS/WiFi Low Profile Antenna, Siretta

The TANGO 1 series antennas are low profile, and housed in a toughened plastic enclosure. A rubber seal prevents moisture ingress and is tough enough to withstand industrial washers on mobile applications such as trucks or buses. The antennas are tuned 1/4 wave dipole covering quad band GSM/GPRS, 3G and WiFi frequencies. They have an integral groundplane and are secured with using a through hole, threaded nut.

Supplied with a 1 meter RG174 cable and a choice of two connectors:

TANGO1/1M/FMEF/S/S/4 FME female connector (RS 124-8698)
TANGO1/1M/SMAM/S/S/4 SMA male connector (RS 124-8699)

Antenna Specifications
Operating Temperature: -40 to +85C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: <1.5:1
Polarisation: Vertical

Operating Frequencies
850, 900, 1800, 1900 MHz (Quad Band GSM/GPRS)
2.1 GHz (3G)
2.4 GHz (WiFi)

Dimensions
Length: 95 mm
Width: 45 mm
Height: 17 mm

Multi-band Antennas, Siretta

Specifications
Attribute Value
Internal/External External
RF Protocols WiFi, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
Supported Frequency Bands 900 → 1800 MHz
Antenna Physical Form Rod
Connector Type SMA
Antenna Mounting Type Wall/Pole
Includes Lead Yes
Gain 3dBi
Antenna Directivity Omnidirectional
Lead Length 1m
Connector Gender Male
Series TANGO 1
On back order for despatch 11/12/2019, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 55.42
(exc. GST)
$ 60.96
(inc. GST)
units
Per unit
1 +
$55.42
