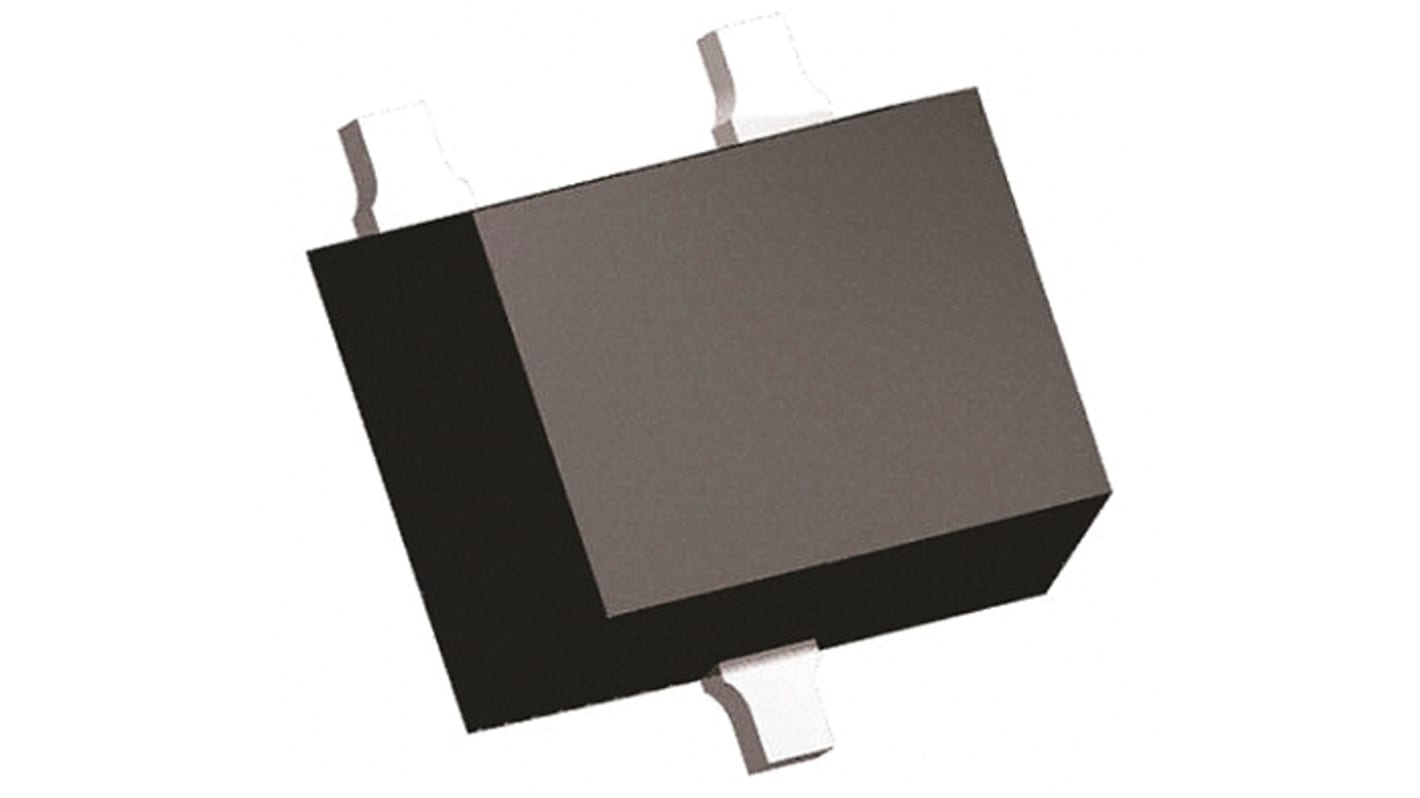

Vishay N-Channel MOSFET, 1.2 A, 30 V, 6-Pin SC-89-6 SI1070X-T1-GE3
- RS Stock No.:
- 812-3041
- Mfr. Part No.:
- SI1070X-T1-GE3
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 812-3041
- Mfr. Part No.:
- SI1070X-T1-GE3
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 1.2 A | |
| Maximum Drain Source Voltage | 30 V | |
| Package Type | SC-89-6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance | 140 mΩ | |
| Channel Mode | Enhancement | |
| Minimum Gate Threshold Voltage | 0.7V | |
| Maximum Power Dissipation | 236 mW | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -12 V, +12 V | |
| Maximum Operating Temperature | +150 °C | |
| Width | 1.2mm | |
| Length | 1.7mm | |
| Transistor Material | Si | |
| Typical Gate Charge @ Vgs | 3.8 nC @ 4.5 V | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Height | 0.6mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type N | ||
Maximum Continuous Drain Current 1.2 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type SC-89-6 | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Maximum Drain Source Resistance 140 mΩ | ||
Channel Mode Enhancement | ||
Minimum Gate Threshold Voltage 0.7V | ||
Maximum Power Dissipation 236 mW | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -12 V, +12 V | ||
Maximum Operating Temperature +150 °C | ||
Width 1.2mm | ||
Length 1.7mm | ||
Transistor Material Si | ||
Typical Gate Charge @ Vgs 3.8 nC @ 4.5 V | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Height 0.6mm | ||
