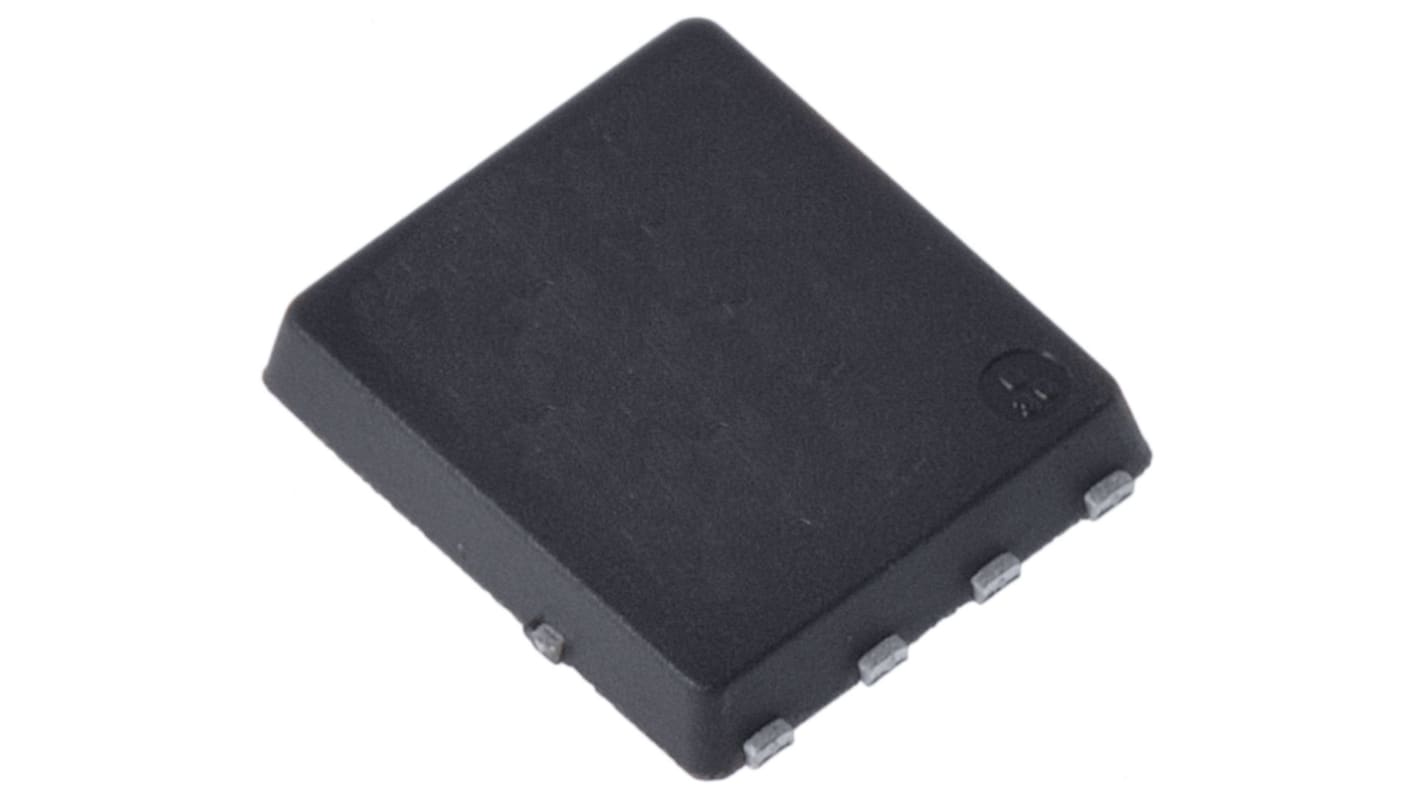

    Infineon OptiMOS™ 3 N-Channel MOSFET, 20 A, 60 V, 8-Pin TDSON BSZ100N06LS3GATMA1

    View all MOSFETs
    Bulk discount available

    Subtotal (1 pack of 5 units)**

    $9.56

    (exc. GST)

    $10.515

    (inc. GST)

    Add to Basket
    Select or type quantity
    34850 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    Per Pack**
    5 - 1245$1.912$9.56
    1250 - 2495$1.862$9.31
    2500 +$1.838$9.19

    **price indicative

    Packaging Options:
    RS Stock No.:
    752-8255
    Mfr. Part No.:
    BSZ100N06LS3GATMA1
    Brand:
    Infineon
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Infineon

    Channel Type

    N

    Maximum Continuous Drain Current

    20 A

    Maximum Drain Source Voltage

    60 V

    Series

    OptiMOS™ 3

    Package Type

    TDSON

    Mounting Type

    Surface Mount

    Pin Count

    8

    Maximum Drain Source Resistance

    17.9 mΩ

    Channel Mode

    Enhancement

    Maximum Gate Threshold Voltage

    2.2V

    Minimum Gate Threshold Voltage

    1.7V

    Maximum Power Dissipation

    2.1 W

    Transistor Configuration

    Single

    Maximum Gate Source Voltage

    -20 V, +20 V

    Width

    3.4mm

    Transistor Material

    Si

    Typical Gate Charge @ Vgs

    15 nC @ 4.5 V

    Maximum Operating Temperature

    +150 °C

    Length

    3.4mm

    Number of Elements per Chip

    1

    Minimum Operating Temperature

    -55 °C

    Height

    1.1mm
