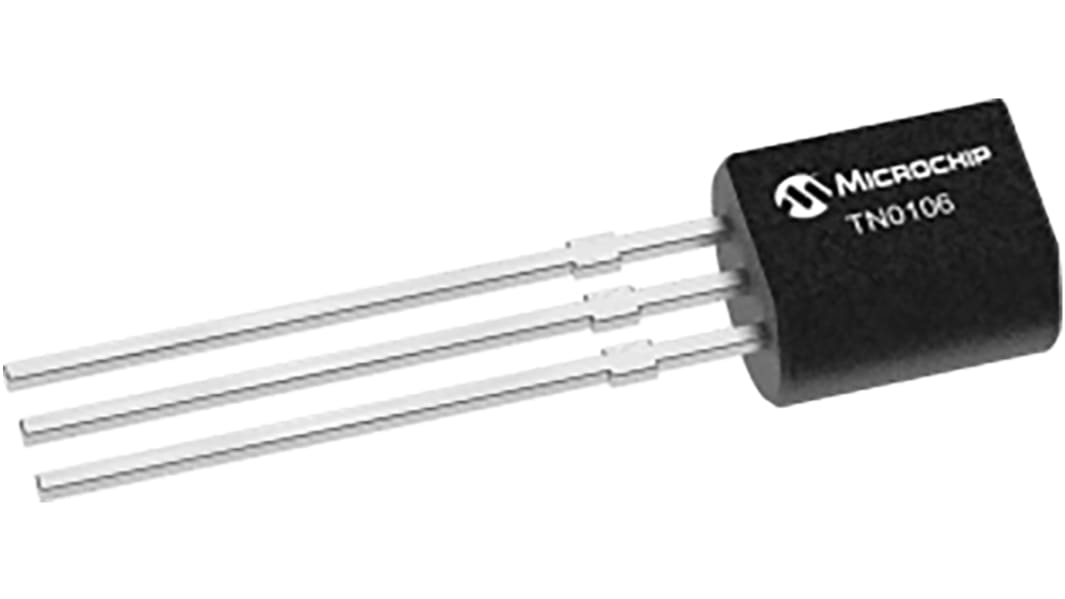

Microchip TN0106 N-Channel MOSFET, 350 mA, 60 V, 3-Pin TO-92 TN0106N3-G
- RS Stock No.:
- 177-9734
- Mfr. Part No.:
- TN0106N3-G
- Brand:
- Microchip
1 / 1
Discontinued product
- RS Stock No.:
- 177-9734
- Mfr. Part No.:
- TN0106N3-G
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 350 mA | |
| Maximum Drain Source Voltage | 60 V | |
| Series | TN0106 | |
| Package Type | TO-92 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 4.5 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 0.6V | |
| Maximum Power Dissipation | 1 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | 20 V | |
| Maximum Operating Temperature | +150 °C | |
| Length | 5.08mm | |
| Width | 4.06mm | |
| Number of Elements per Chip | 1 | |
| Height | 5.33mm | |
| Forward Diode Voltage | 1.5V | |
| Minimum Operating Temperature | -55 °C | |
