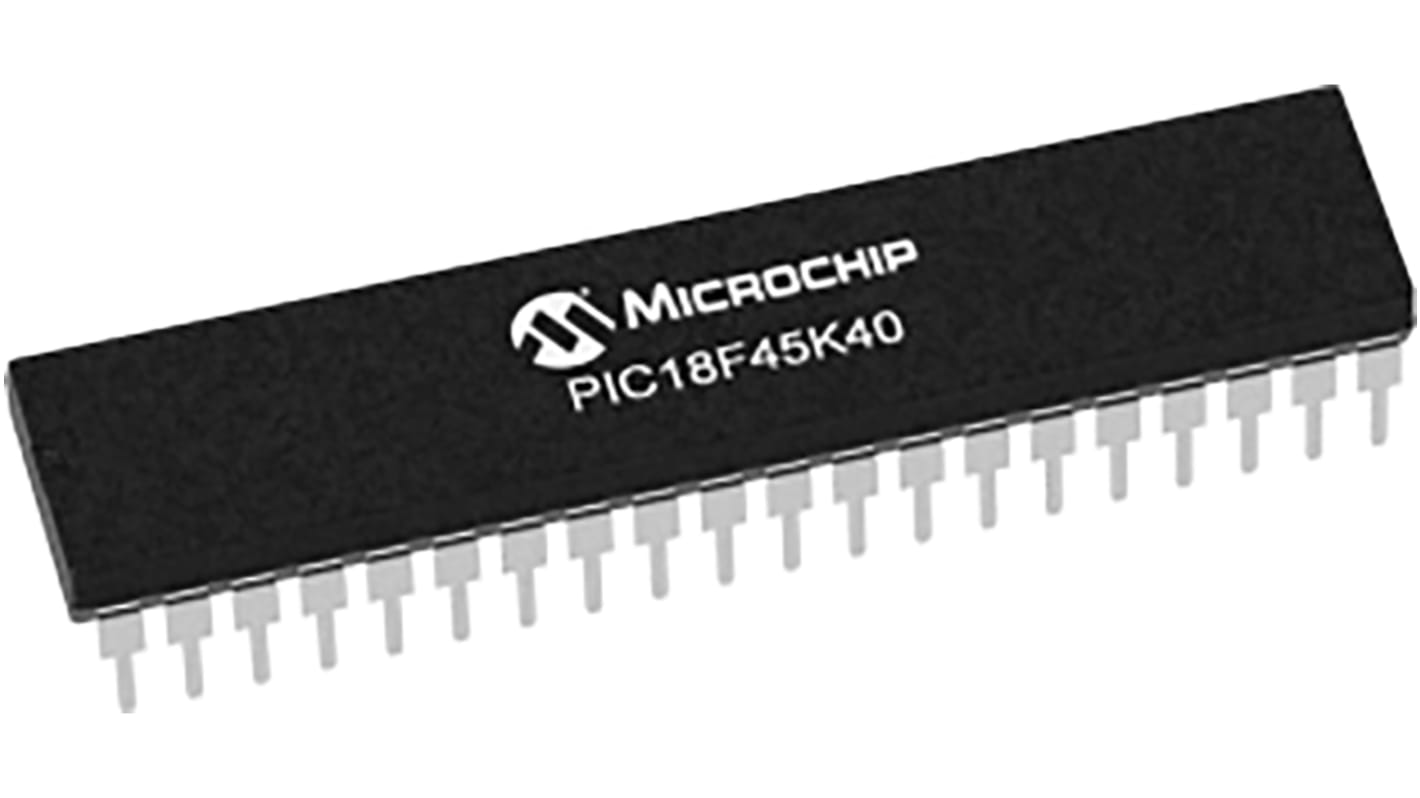

Microchip PIC18F45K40-I/P, 8bit PIC Microcontroller, PIC18F, 64MHz, 32 kB Flash, 40-Pin PDIP
- RS Stock No.:
- 177-2196
- Mfr. Part No.:
- PIC18F45K40-I/P
- Brand:
- Microchip
On back order for despatch 17/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tube of 10)
$4.229
(exc. GST)
$4.652
(inc. GST)
| Units | Per unit | Per Tube* |
| 10 - 10 | $4.229 | $42.29 |
| 20 - 30 | $4.125 | $41.25 |
| 40 + | $4.06 | $40.60 |
| *price indicative | ||
- RS Stock No.:
- 177-2196
- Mfr. Part No.:
- PIC18F45K40-I/P
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
PIC18(L)F25K40 microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, XLP and 5V support to suit a variety of general purpose applications. These 28-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.
PIC18 Core with 83 Instructions, 31 Stack Levels
Internal 64MHz oscillator
Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)
Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)
MEMORIES:
16 KB Flash Program Memory with self read/write capability
1024 Bytes Data SRAM Memory
256 Bytes of EEPROM
INTELLIGENT ANALOG:
24 x 10-bit ADC channels
1 x 5-bit DAC
2 x Comparators
Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1 x Zero-Cross Detect
Internal 64MHz oscillator
Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)
Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)
MEMORIES:
16 KB Flash Program Memory with self read/write capability
1024 Bytes Data SRAM Memory
256 Bytes of EEPROM
INTELLIGENT ANALOG:
24 x 10-bit ADC channels
1 x 5-bit DAC
2 x Comparators
Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1 x Zero-Cross Detect
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC18F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 2.048 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 2 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of USART Channels | 2 |
| Length | 53.09mm |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | RISC |
| Height | 4.83mm |
| Number of LIN Channels | 0 |
| Width | 14.73mm |
| Minimum Operating Temperature | -40 °C |
| Number of PCI Channels | 0 |
| Dimensions | 2.09 x 0.58 x 0.19in |
| Maximum Number of Ethernet Channels | 0 |
| Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| ADCs | 35 x 10 bit |
