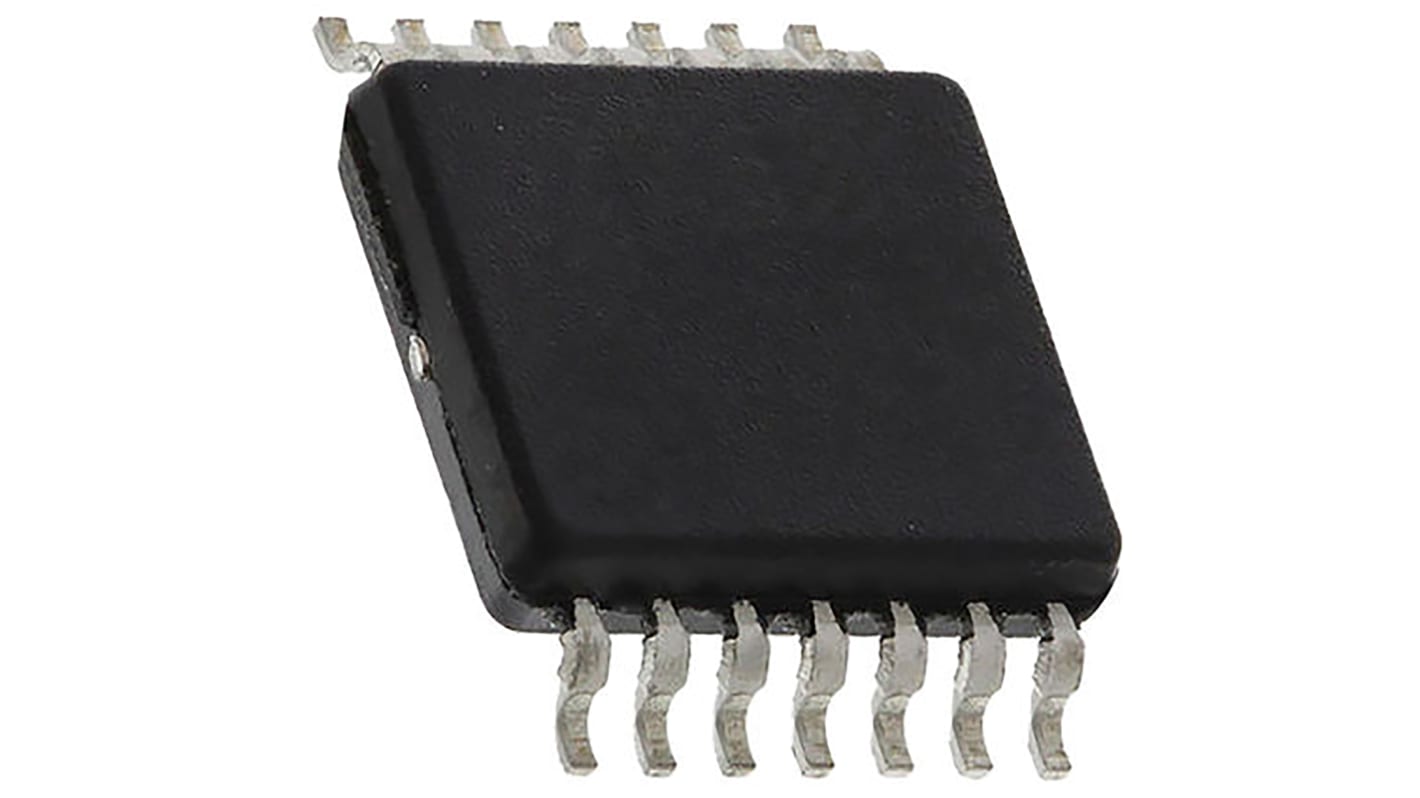

- RS Stock No.:
- 159-7446
- Mfr. Part No.:
- PIC16LF1823-I/ST
- Brand:
- Microchip
Available for back order.
Added
Price (ex. GST) Each (In a Tube of 96)
$2.202
(exc. GST)
$2.422
(inc. GST)
Units | Per unit | Per Tube* |
96 - 96 | $2.202 | $211.392 |
192 - 864 | $2.13 | $204.48 |
960 + | $2.059 | $197.664 |
*price indicative |
- RS Stock No.:
- 159-7446
- Mfr. Part No.:
- PIC16LF1823-I/ST
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
PIC16F1823 8-Bit Flash Microcontrollers
The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchips PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F1823 family of microcontrollers is based upon Microchips Enhanced Mid-Range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and 256 bytes EEPROM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
The PIC16F1823 family of microcontrollers is based upon Microchips Enhanced Mid-Range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and 256 bytes EEPROM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz
12 I/O Pins
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Enhanced Low-Voltage Programming (LVP)
49 Instructions
16 Level Hardware Stack
32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz
12 I/O Pins
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Enhanced Low-Voltage Programming (LVP)
Peripherals
8 Channel 10-bit Analogue to Digital Converter (ADC)
8 Channel Capacitive Sensing (mTouchTM) Module
Enhanced Capture/Compare/PWM (ECCP) Module
Two Comparators
Voltage Reference Module
Two 8-bit Timers
One 16-bit Timer
Data Signal Modulator Module
SR Latch
8 Channel Capacitive Sensing (mTouchTM) Module
Enhanced Capture/Compare/PWM (ECCP) Module
Two Comparators
Voltage Reference Module
Two 8-bit Timers
One 16-bit Timer
Data Signal Modulator Module
SR Latch
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | PIC16F |
Package Type | SSOP |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 2048 words |
Maximum Frequency | 32MHz |
RAM Size | 128 B |
USB Channels | 1 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 1 |
Number of USART Channels | 1 |
Number of UART Channels | 0 |
Number of CAN Channels | 0 |
Typical Operating Supply Voltage | 2.5 → 3.6 V |
Number of I2C Channels | 1 |
Number of PCI Channels | 0 |
Pulse Width Modulation | 1 x 10 bit |
Program Memory Type | Flash |
Number of LIN Channels | 0 |
Height | 1.05mm |
Maximum Number of Ethernet Channels | 0 |
ADCs | 8 x 10 bit |
Dimensions | 5.1 x 4.5 x 1.05mm |
Instruction Set Architecture | RISC |
Maximum Operating Temperature | +85 °C |
Length | 5.1mm |
Number of ADC Units | 1 |
Number of Ethernet Channels | 0 |
Width | 4.5mm |
Minimum Operating Temperature | -40 °C |
