Microchip PIC16C54-XT/P, 8bit PIC Microcontroller, PIC16C, 40MHz, 750 B OTP, 18-Pin PDIP
- RS Stock No.:
- 145-9105
- Mfr. Part No.:
- PIC16C54-XT/P
- Brand:
- Microchip

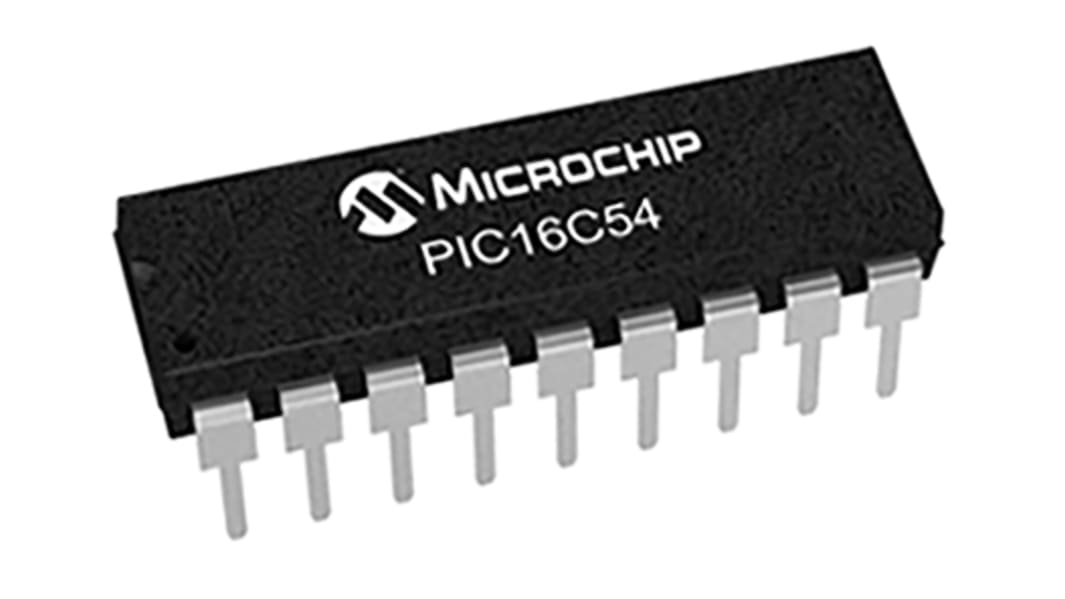

This image is representative of the product range
- RS Stock No.:
- 145-9105
- Mfr. Part No.:
- PIC16C54-XT/P
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC16C | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 18 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 750 B | |
| Maximum Frequency | 40MHz | |
| RAM Size | 25 B | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 0 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 2.5 → 6.3 V | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 0 | |
| Program Memory Type | OTP | |
| Maximum Number of Ethernet Channels | 0 | |
| Height | 3.68mm | |
| ADCs | 0 | |
| Length | 22.99mm | |
| Instruction Set Architecture | RISC | |
| Number of ADC Units | 0 | |
| Maximum Operating Temperature | +70 °C | |
| Number of LIN Channels | 0 | |
| Minimum Operating Temperature | 0 °C | |
| Number of Ethernet Channels | 0 | |
| Width | 6.6mm | |
| Dimensions | 22.99 x 6.6 x 3.68mm | |
| Pulse Width Modulation | 0 | |
| Number of PCI Channels | 0 | |
