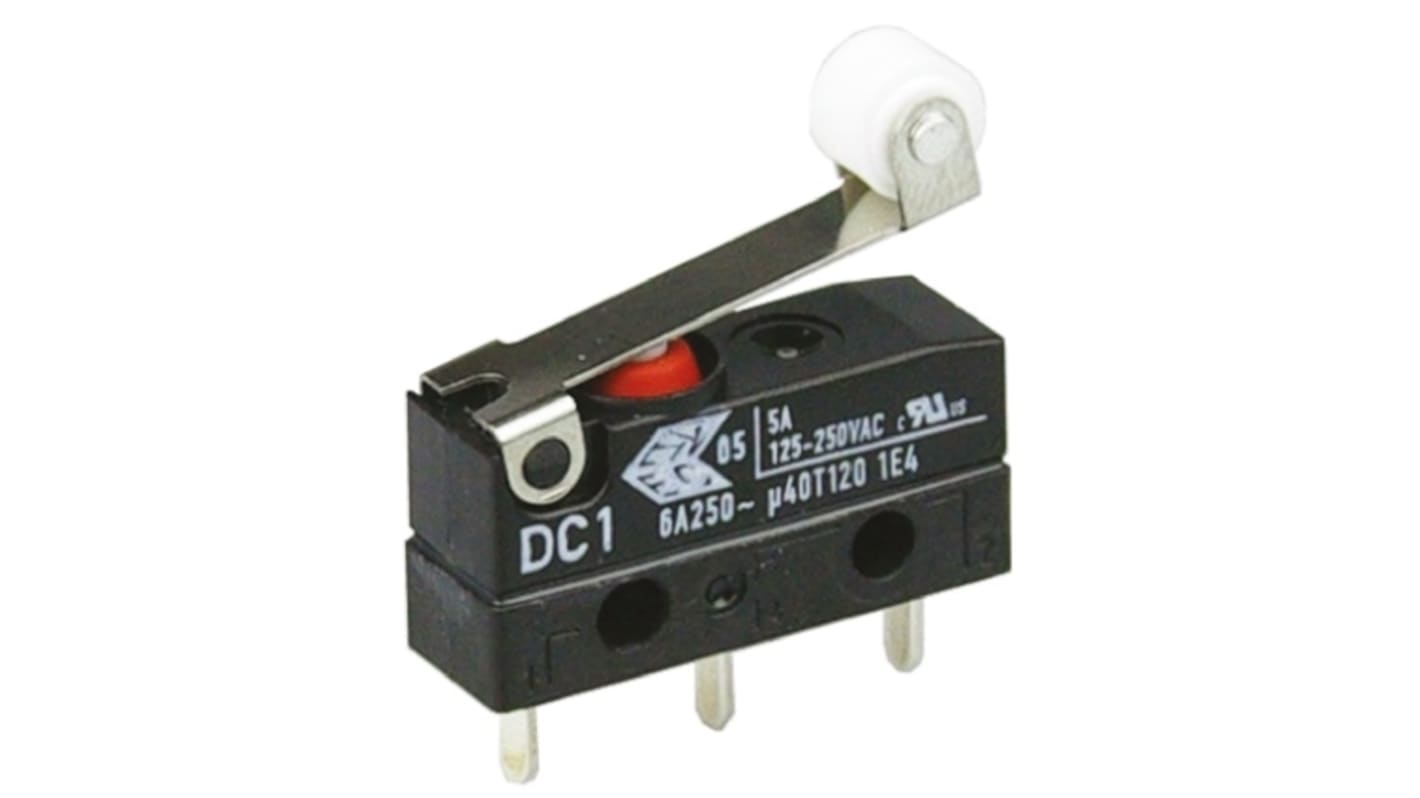

ZF Short Roller Lever Micro Switch, PCB Terminal, 6 A @ 250 V ac, SPDT, IP6K7
- RS Stock No.:
- 706-4313
- Mfr. Part No.:
- DC1C-H1RB
- Brand:
- ZF
On back order for despatch 16/04/2025, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$12.40
(exc. GST)
$13.64
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 49 | $12.40 |
| 50 - 149 | $12.27 |
| 150 - 249 | $12.09 |
| 250 - 499 | $11.87 |
| 500 + | $11.65 |
- RS Stock No.:
- 706-4313
- Mfr. Part No.:
- DC1C-H1RB
- Brand:
- ZF
Technical data sheets
Legislation and Compliance
Product Details
IP67 V4 Microswitches (DC1 6A)
Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C
Ice-free lever option suitable for operation in cold damp environments where a pivoted lever may freeze up
Height 11.65mm, Width 20mm, Depth 6.5mm
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C
Ice-free lever option suitable for operation in cold damp environments where a pivoted lever may freeze up
Height 11.65mm, Width 20mm, Depth 6.5mm
Approvals
ENEC; UL
ENEC; UL
Approvals
ENEC; UL
IP67 V4 Microswitches (DC1 6A)
Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C
Height 11.65mm, Width 20mm, Depth 6.5mm
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C
Height 11.65mm, Width 20mm, Depth 6.5mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Short Roller Lever |
| Terminal Type | PCB |
| Contact Current Rating | 6 A @ 250 V ac |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP6K7 |
| Operating Force | 0.88 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
| Contact Material | Silver Alloy |
| Mechanical Life | 1000000Operations |
| Operating Temperature Range | -40 → +120°C |
