Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Nexperia
	Logic Family	HCT
	Latch Mode	Transparent
	Latching Element	D Type
	Number of Bits	8bit
	Output Type	3 State
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	20
	Dimensions	13 x 7.6 x 2.45mm
	Height	2.45mm
	Length	13mm
	Minimum Operating Temperature	-40 °C
	Minimum Operating Supply Voltage	4.5 V
	Width	7.6mm
	Maximum Operating Supply Voltage	5.5 V
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Nexperia
	Logic Family HCT
	Latch Mode Transparent
	Latching Element D Type
	Number of Bits 8bit
	Output Type 3 State
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 20
	Dimensions 13 x 7.6 x 2.45mm
	Height 2.45mm
	Length 13mm
	Minimum Operating Temperature -40 °C
	Minimum Operating Supply Voltage 4.5 V
	Width 7.6mm
	Maximum Operating Supply Voltage 5.5 V
	Maximum Operating Temperature +125 °C

The 74HC573, 74HCT573 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the inputs a set-up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE causes the outputs to assume a high-impedance OFF-state.

Mixed 5 V and 3.3 V applications

Save board space

Low cost interface solutions

Improved signal integrity for complex layouts

Wide supply voltage range

Low propagation delay

Overvoltage tolerant

Source termination

Low input threshold

CMOS low power

Key applications

Memory controllers

Backplane interfaces

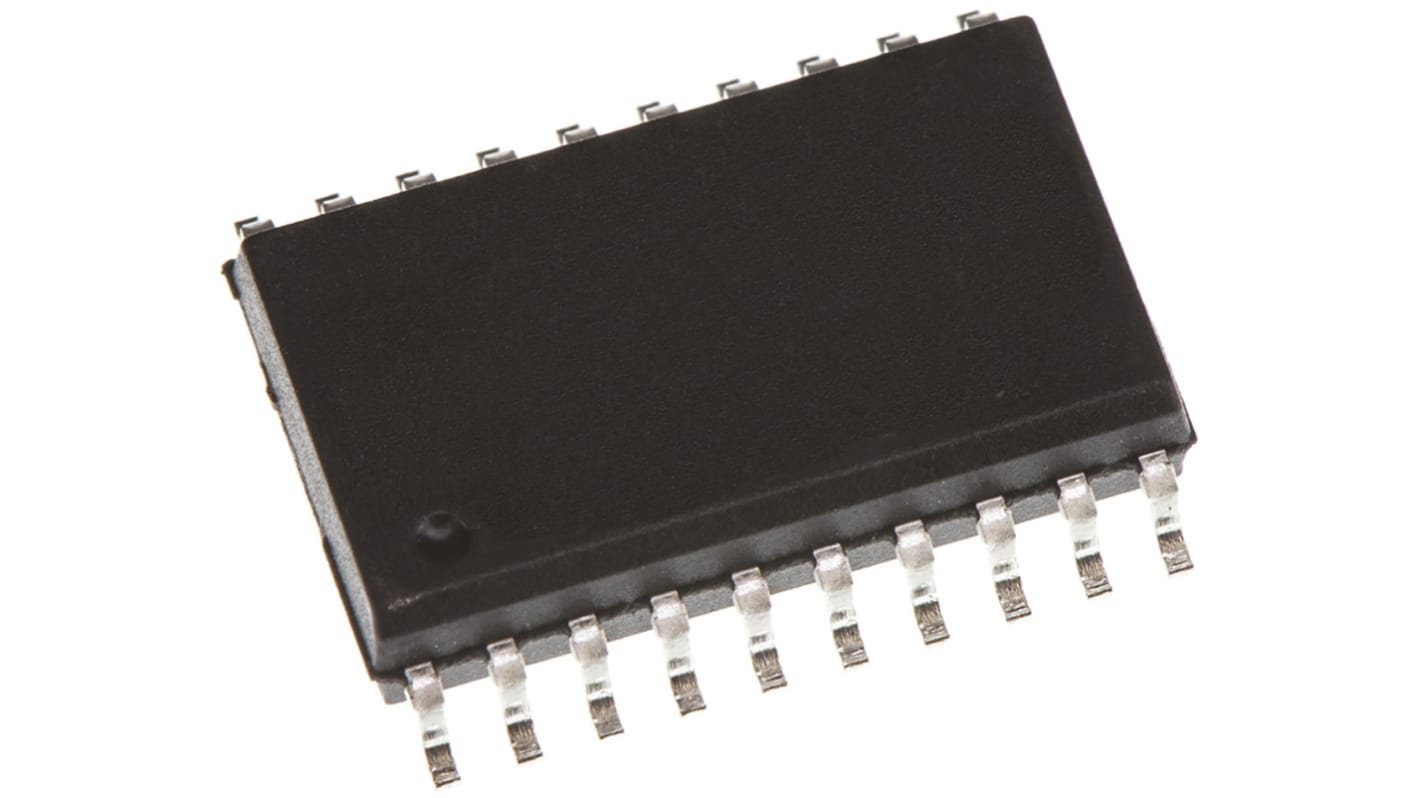

Nexperia 74HCT573D,652 8bit-Bit Latch, Transparent D Type, 3 State, 20-Pin SOIC
