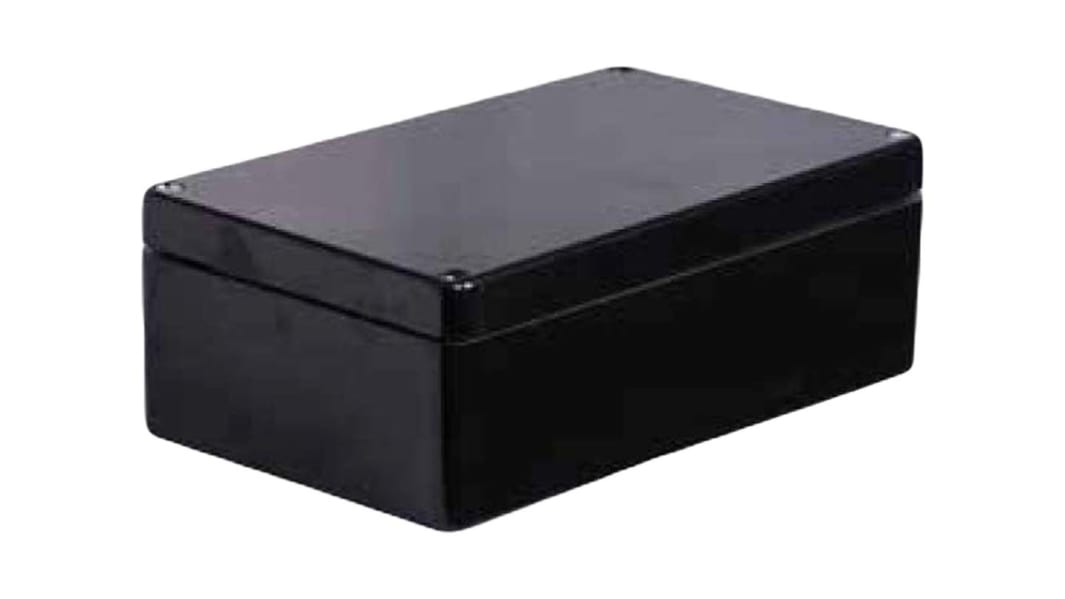

RS PRO ATEX, IECEx Junction Box, IP66, 400mm x 250mm x 120mm

  • RS Stock No. 144-4461
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro Explosion Proof Junction Boxes

An explosion proof (Ex) junction box for fitting electrical and mechanical components. The enclosure consists of high-quality glass reinforced polyester with added graphite. The lid and base are screwed together with stainless steel captive screws. A groove and tongue system with inserted sealing cord between the lid and base provides IP66 protection. The enclosure is mounted through the screw channels outside the sealing space.

Features and Benefits

• Glass reinforced polyester (GRP), graphite added
• Black RAL 9011
• IP66 protection EN 60529
• Surface resistance <109 Ω
• Impact Energy 7 Jules
• Self-extinguishing UL 94 V0
• -50 °C to 100 °C

ATEX and IECEx

• II 2 G Ex e IIC Gb
• II 2 D Ex tb IIIC Db IP66
• DEMKO 15 ATEX 1475U
• IECEx UL 15.0045U

Standards

ISO 9001-2008, IEC 80079-34-2011, IEC/EN 60079-0, IEC/EN 60079 and IEC/EN 60079-31.

Specifications
Attribute Value
Length 400mm
Material GRP
Width 250mm
Dimensions L x W x H 400 x 250 x 120mm
IP Rating IP66
Height 120mm
Colour Black
Hazardous Area Certification ATEX, IECEx
3 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 338.84
(exc. GST)
$ 372.72
(inc. GST)
units
Per unit
1 - 2
$338.84
3 - 4
$316.26
5 +
$282.37
