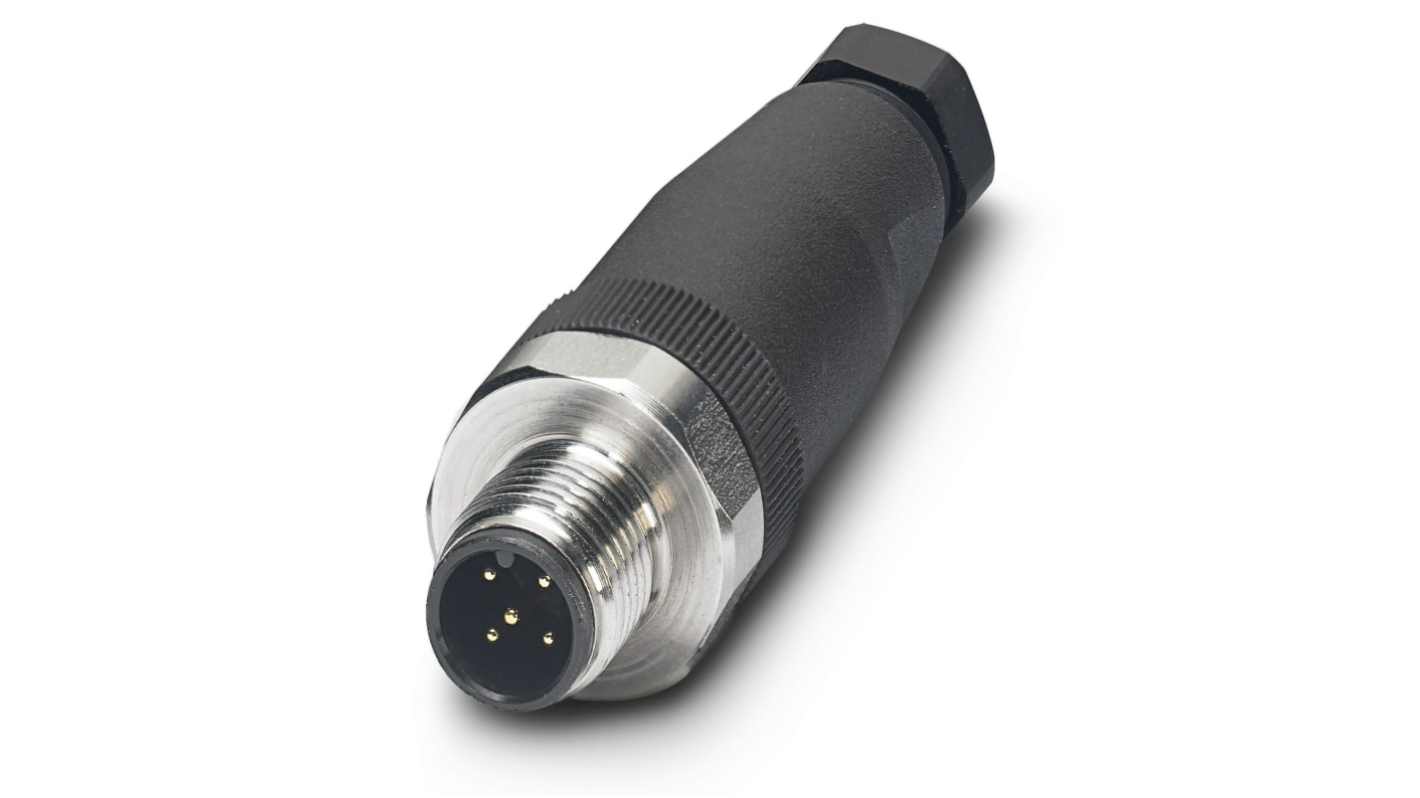

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, IP69K, SACC Series

RS Stock No.:: 794-4465
Distrelec Article No.:: 304-02-016
Mfr. Part No.:: 1553187
Brand:: Phoenix Contact

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, IP69K, SACC Series

Bulk discount available

Subtotal (1 unit)**

$35.47

(exc. GST)

$39.02

(inc. GST)

12 In AU stock for next working day delivery*

21 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 4	$35.47
5 - 24	$34.86
25 - 49	$33.34
50 +	$32.13

**price indicative

RS Stock No.:: 794-4465
Distrelec Article No.:: 304-02-016
Mfr. Part No.:: 1553187
Brand:: Phoenix Contact

Phoenix Contact A-Coded M12 Connectors. PG7 Cable Screw

Phoenix Contact 4 and 5 way A-coded M12 sensor/actuator plug and socket connectors with corrosion resistant stainless steel knurl and plastic backshell with PG7 connection , designed for use in many industrial applications. These plug and socket connectors are IP Rated to IP69K, with a current and voltage rating of 4A at 250V and with an external cable capacity of 4 to 6mm.

IP69K Rated
Operating temperature range -40 to +85 °C
Over 100 mating cycles
Screw terminal wire connection for built in contacts

Standards

IEC 61076-2-101

Approvals

GOST

Phoenix Contact Cable-mount Connector, 5 Contacts, M12 Connector - SACC-M12MS-5CON-PG 7-VA - 1553187

This Phoenix Contact M12 cable-mount connector is on hand to link your electronic components, even in demanding environments. It features a stainless-steel knurl and a polymer housing to ensure durability and long-term reliability, making it suitable for a range of industrial applications in harsh conditions.
This connector has an IP65, IP67 and IP69K ingress protection rating – the highest possible – meaning it's totally dust-tight and protected against high-pressure, high-temperature water sprays, as well as immersion for 30 minutes. It also has a wide operating temperature range of -40°C to +85°C, so it's suitable for tough environments where frequent wash-downs take place.
The product uses industry-standard screw terminals to make installation simple and provide a safe connection. This also lessen stress on the cables, increasing the connector's working life. The contacts are made of copper for high conductivity and plated with gold for additional resistance to corrosion.

• Straight body orientation
• A coding
• 5 contacts
• Male contact gender
• Current rating of 4.0 A
• Voltage rating of 60 V
• Black housing colour

Phoenix Contact M12 Connectors

A comprehensive range of Phoenix Contact M12 connector designed for use within demanding environments, with a variety of fittings for enhanced corrosion resistance and durability.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Contacts	5
	Mounting Type	Cable Mount
	Connector Size	M12
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Screw
	IP Rating	IP65, IP67, IP69K
	Current Rating	4.0A
	Body Orientation	Straight
	Series	SACC
	Coding	A
	Voltage Rating	60 V
	Mating Type	A Coded
	Shell Size	M12
	Housing Material	Polymer
	Contact Plating	Gold
	Minimum Operating Temperature	-40°C
	Contact Material	Copper
	Maximum Operating Temperature	+85°C

	Select all
	Brand Phoenix Contact
	Number of Contacts 5
	Mounting Type Cable Mount
	Connector Size M12
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Screw
	IP Rating IP65, IP67, IP69K
	Current Rating 4.0A
	Body Orientation Straight
	Series SACC
	Coding A
	Voltage Rating 60 V
	Mating Type A Coded
	Shell Size M12
	Housing Material Polymer
	Contact Plating Gold
	Minimum Operating Temperature -40°C
	Contact Material Copper
	Maximum Operating Temperature +85°C
