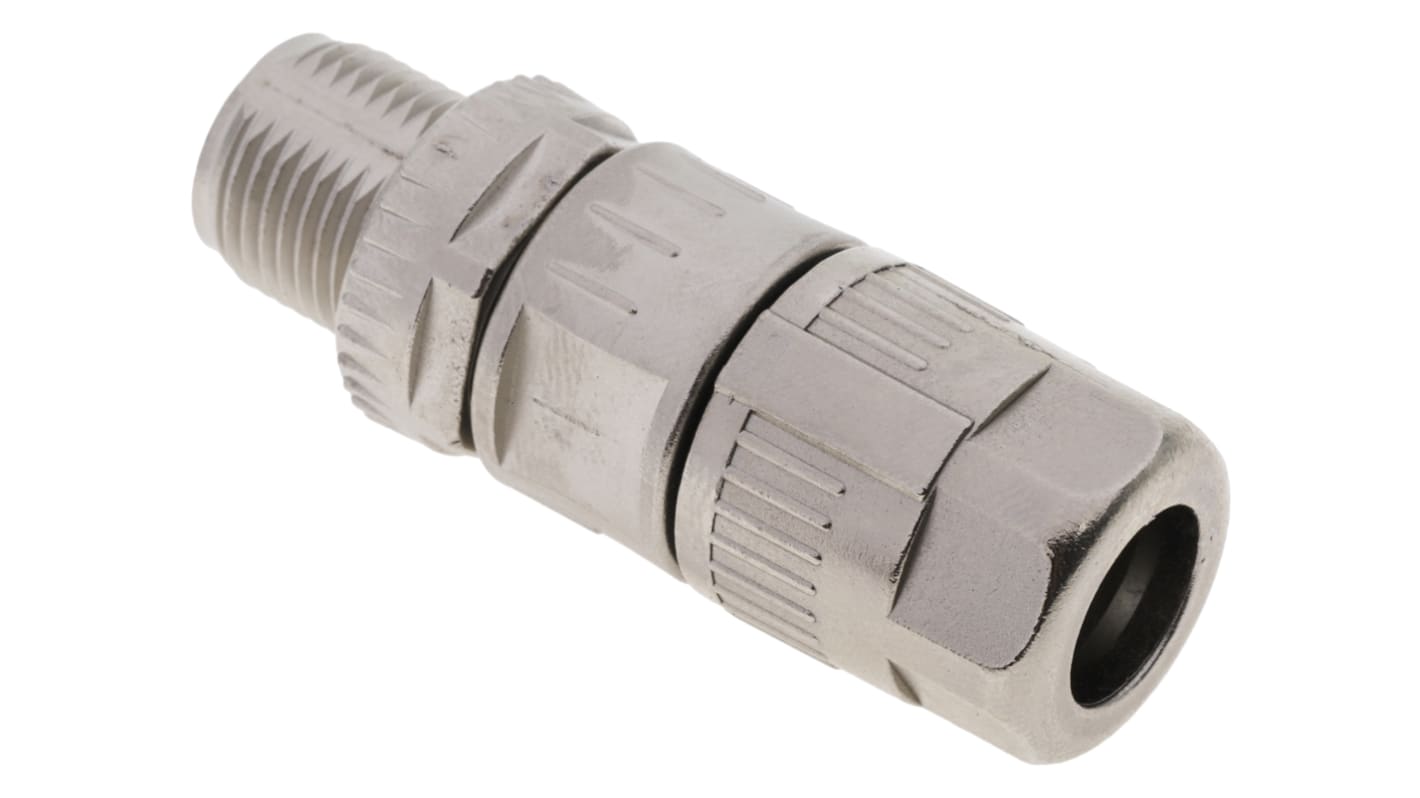

HARTING Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, M12 Series
- RS Stock No.:
- 174-1787
- Mfr. Part No.:
- 21038811405
- Brand:
- HARTING
50 In AU stock for next working day delivery
10 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
Was $658.92
You pay
$42.354
(exc. GST)
$46.589
(inc. GST)
Units | Per unit | Per Pack* |
10 - 40 | $42.354 | $423.54 |
50 + | $38.119 | $381.19 |
*price indicative |
- RS Stock No.:
- 174-1787
- Mfr. Part No.:
- 21038811405
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
HARTING Circular Connector
The HARTING Harax M12 series 4-poles male circular shielded connector has a plug connection. This crimp slim design connector has a voltage rating of 250V and a current rating is up to 4A per contact. The screw-on connectors mate with cable mount plugs and receptacles with a positive lock feature and quick-connect and disconnect capabilities. The connector shell is made from liquid crystal polymer. This connector also features a screw locking mating system that ensures a secure connection. This compact connector is ideal for use in challenging conditions.
Features and Benefits
Cable diameter ranges between 4.4mm and 8.8mm
Conductor cross section ranges between 26AWG and 18AWG
Crimp termination
D-coding
Mating cycle is greater than 500cycles
Operation temperature ranges between -40°C and 85°C
Robust and reliable connection
Straight body orientation
Water and dustproof
Conductor cross section ranges between 26AWG and 18AWG
Crimp termination
D-coding
Mating cycle is greater than 500cycles
Operation temperature ranges between -40°C and 85°C
Robust and reliable connection
Straight body orientation
Water and dustproof
Applications
Electrical equipment
General industrial applications
HVAC equipment
Industrial automation
General industrial applications
HVAC equipment
Industrial automation
Certifications
CSA certified
IEC 61076-2-101
IP67 rated
UL approved
IEC 61076-2-101
IP67 rated
UL approved
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Mounting Type | Cable Mount |
Connector Size | M12 |
Plug/Socket | Plug |
Contact Gender | Male |
Termination Method | Crimp |
IP Rating | IP65, IP67 |
Current Rating | 4.0A |
Series | M12 |
Body Orientation | Straight |
Coding | D |
Voltage Rating | 250 V |
Mating Type | D Coded, Screw Lock |
Shell Size | 14 |
Housing Material | Polymer |
Pole Format | 4P |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
