RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67

RS Stock No.:: 124-6731
Brand:: RS PRO

RS PRO Circular Connector, 2 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67

7 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$52.60

(exc. GST)

$57.86

(inc. GST)

Units	Per unit
1 - 9	$52.60
10 - 49	$51.23
50 - 99	$49.92
100 - 499	$48.52
500 +	$39.93

RS Stock No.:: 124-6731
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

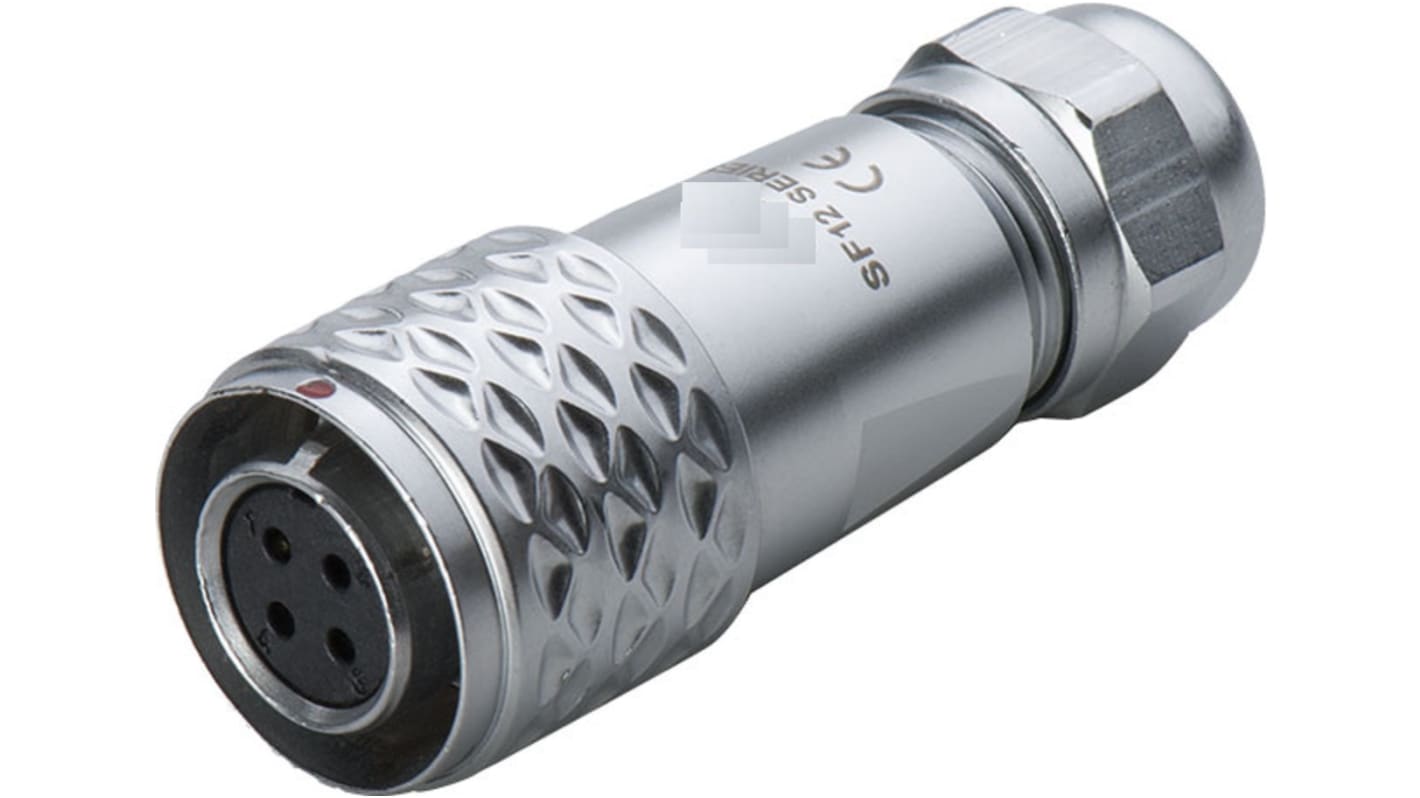

M12 Push-Pull Cable Socket

DISCLAIMER: We have recently made a design change to the grip feature of this product and there will be a period of time where you may receive mixed stock. This will not affect the product performance.

From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm See RS part numbers below
124-6731 124-6732 124-6733 124-6734
• Cable outer diameter: 5 mm to 8 mm See RS part numbers below
124-6735 124-6736 124-6737 124-6738
• Solder termination
• Chrome plated brass shell material

RS Pro Push-Pull

Specifications

Attribute	Value
Number of Contacts	2
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Solder
IP Rating	IP67
Current Rating	13.0A
Body Orientation	Straight
Voltage Rating	250.0 V
Mating Type	Push-Pull
Housing Material	Metal
Pole Format	2P
Contact Plating	Gold
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Brass
