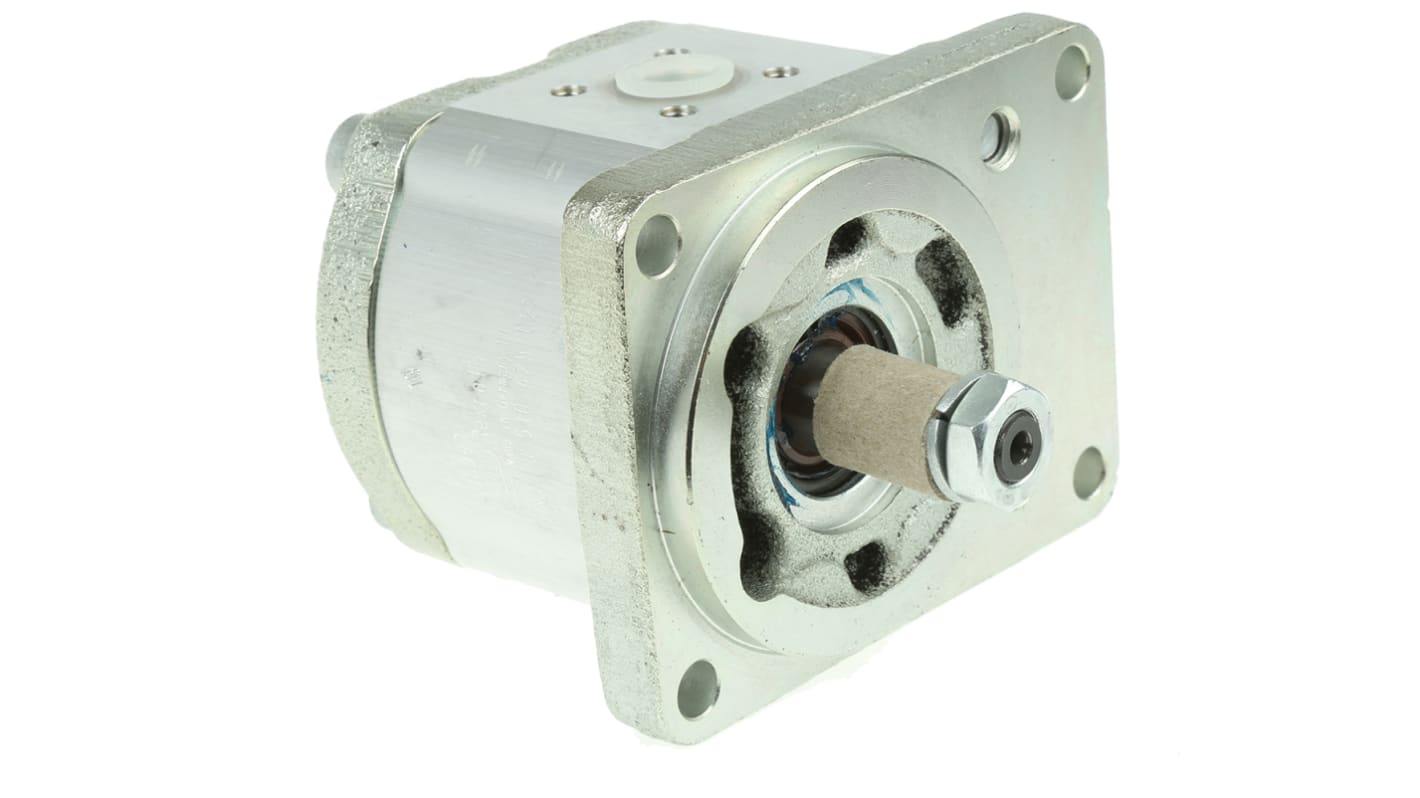

Self Aspirating External Gear Pump, 1:5 Tapered Shaft

Plain bearings cater for high load applications
To assist with installation, a range of flanged fittings for pipe connection is available separately, in right angle pattern
Each fitting is supplied complete with fixing screws, 0-ring, cutting ring and retaining nut

Note

Maximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B₂₀ ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended - this is achievable with a filter retention rate of B₁₀≥100.

Supplied with

Instruction leaflet.

Gear Pumps

Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15°C to +80°C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.

Select all	Attribute	Value
	Brand	Bosch Rexroth
	Displacement	8.2cm³
	Maximum Operating Pressure	250 bar
	Minimum Rotational Speed	700rpm
	Manufacturer Series	AZP
	Direction of Rotation	Clockwise
	Maximum Rotational Speed	4000rpm
	Minimum Speed At Maximum Pressure	1000rpm
	Body Dimensions	91.6 x 90 x 118mm
	Body Height	118mm
	Body Length	91.6mm
	Body Width	90mm

	Select all
	Brand Bosch Rexroth
	Displacement 8.2cm³
	Maximum Operating Pressure 250 bar
	Minimum Rotational Speed 700rpm
	Manufacturer Series AZP
	Direction of Rotation Clockwise
	Maximum Rotational Speed 4000rpm
	Minimum Speed At Maximum Pressure 1000rpm
	Body Dimensions 91.6 x 90 x 118mm
	Body Height 118mm
	Body Length 91.6mm
	Body Width 90mm

Bosch Rexroth Hydraulic Gear Pump 0510425022, 8.2cm³
