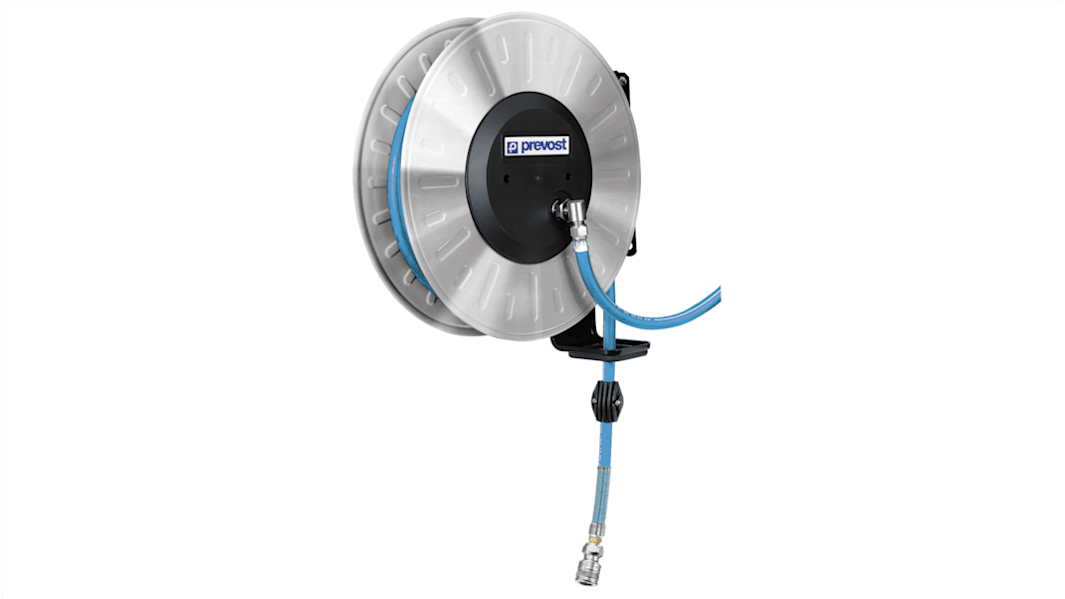

PREVOST 1 in G 19x28mm Hose Reel 10 bar 20m Length, Wall Mounting
- RS Stock No.:
- 219-4402
- Mfr. Part No.:
- DLOI 1920LS
- Brand:
- PREVOST
On back order for despatch 04/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$5,301.59
(exc. GST)
$5,831.75
(inc. GST)
| Units | Per unit |
| 1 + | $5,301.59 |
- RS Stock No.:
- 219-4402
- Mfr. Part No.:
- DLOI 1920LS
- Brand:
- PREVOST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
The Prevost stainless steel hose reel for low pressure water has 19 ´ 28 mm hose diameter. It has 10 bar pressure.
Swivel Bracket: DLOI PIV
Fluid: Water LP
Inlet Hose: 1 m
Body Material: AISI 304 Stainless Steel
Operating Temperature Range: -15°C → +60°C
Fluid: Water LP
Inlet Hose: 1 m
Body Material: AISI 304 Stainless Steel
Operating Temperature Range: -15°C → +60°C
Specifications
Attribute | Value |
|---|---|
| Inlet Connection | 1 in G |
| Hose Inner Diameter | 19x28mm |
| Hose Included | Yes |
| Hose Length | 20m |
| Maximum Working Pressure | 10 bar |
| Inlet Connection Size | 1in |
| Inlet Thread Standard | BSP |
| Mounting | Wall Mounting |
| Retraction Operation | Spring Return |
