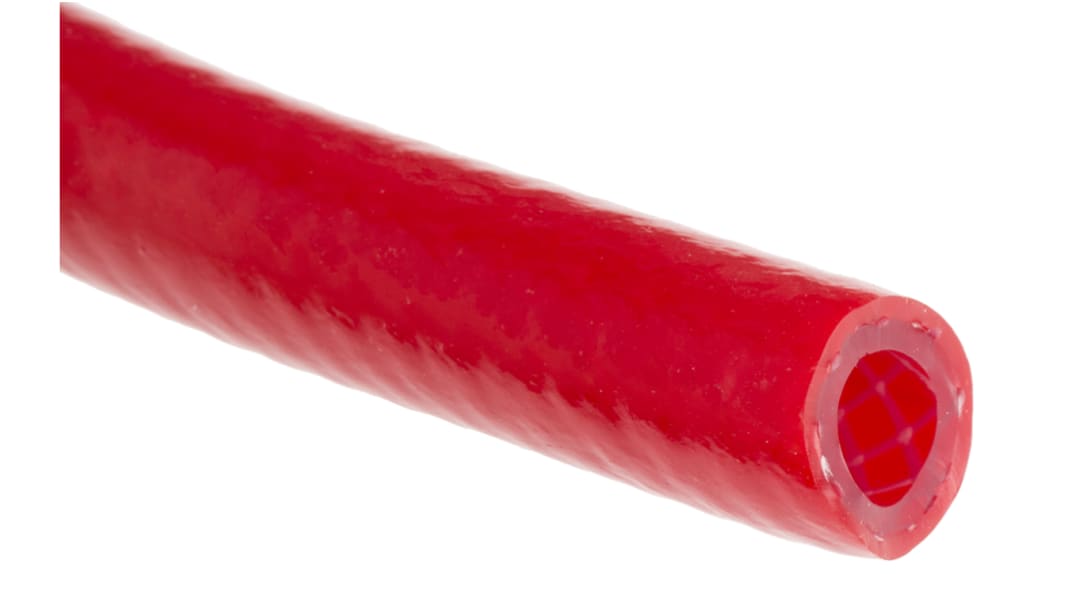

RS PRO Hose Pipe, PVC, 10mm ID, 16mm OD, Red, 25m

RS Stock No.:: 339-6130
Brand:: RS PRO

RS PRO Hose Pipe, PVC, 10mm ID, 16mm OD, Red, 25m

On back order for despatch 14/05/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$136.43

(exc. GST)

$150.07

(inc. GST)

Units	Per unit
1 - 5	$136.43
6 - 29	$133.14
30 +	$109.58

RS Stock No.:: 339-6130
Brand:: RS PRO

Technical data sheets

RS Pro Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

RS Pro Multi-purpose Reinforced PVC Tubing

RS Pro PVC Tubing is clear, EC compliant, low toxic and widely used for the transfer of food, water, air, chemicals, gas, fuels and oils. This multi-purpose, high-quality all-round performer is universally popular, especially for the conveyance of air and water.

Features and Benefits

• Excellent glass clear transparency for clear visibility

• Good flexibility for ease of use

• Resistant to a wide range of chemicals including many acids / alkalis

• Abrasion resistant. Thicker wall gives medium to heavy-duty durability for improved resistance to abrasion

• Specially selected high tensile polyester fibres used at the optimum braid angle of 54° 44′(54.73°) creates an effective and balanced pressure hose

• EC compliant for food contact applications

• RoHS compliant

• Manufactured from cadmium and silicone-free materials, using a specialist PVC that can reduce the taint of drinking water

• Service temperature = -15°C to + 60°C

• Manufactured in accordance with ISO 5774

• 4:1 safety factor

Product Application Information

• Widely used by the caravan industry for piping water and chemicals

• Popular for pharmaceutical / scientific applications for the transfer of chemicals

• Air applications such as pneumatic tools

• For the transfer of food substances and liquids

Note

Working Pressure is at +23°C

Standards

BS6066, ISO5774

PVC Industrial Hoses

Specifications

Attribute	Value
Hose Pipe/Flexible Tube	Hose Pipe
Inner Diameter	10mm
Outer Diameter	16mm
Material	PVC
Hose Pipe Action	Transfer
Maximum Working Pressure	15 bar
Suitable Applications	Compressed Air
Standards Met	ISO 5774
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+60°C
Colour	Red
Length	25m
Bend Radius	40mm
Reinforced	Yes
