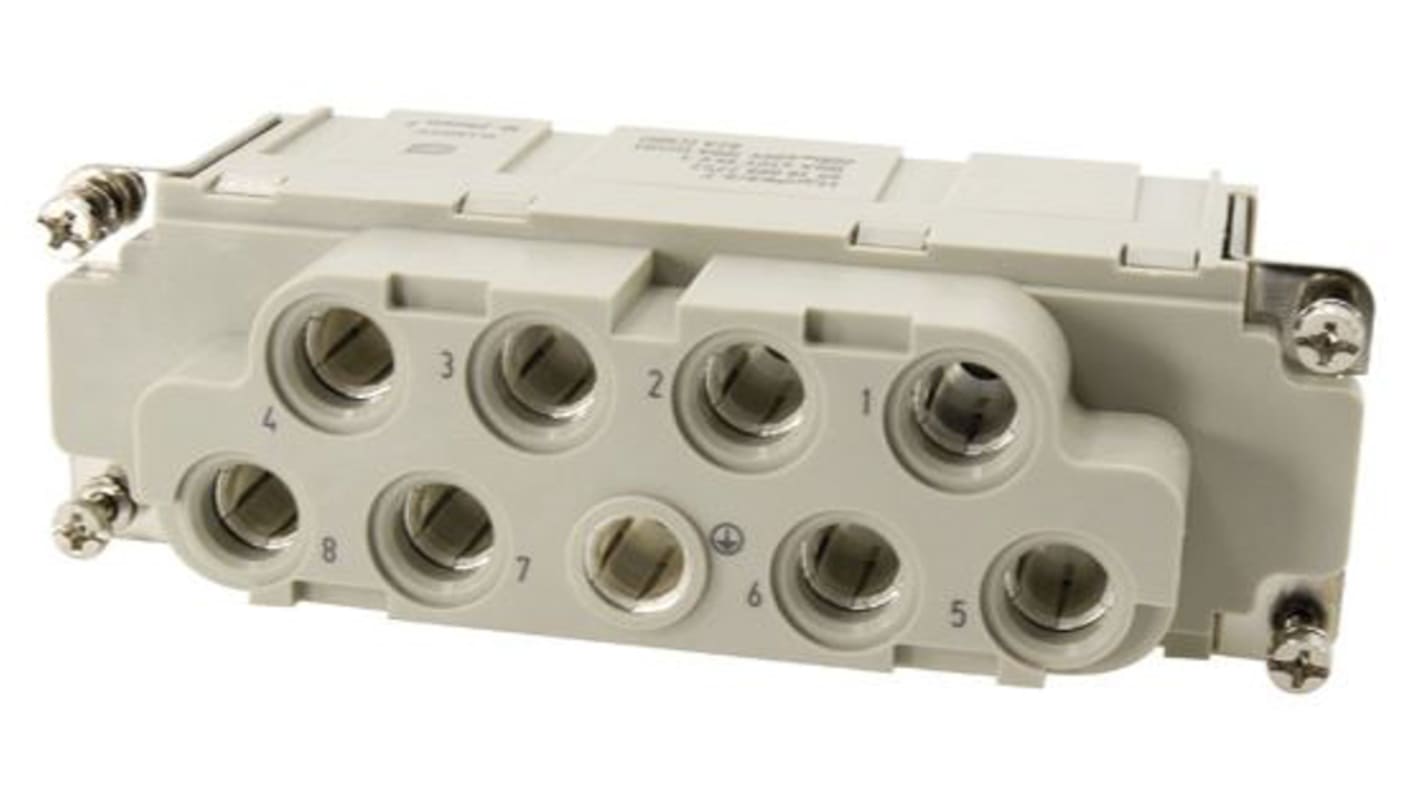

HARTING Heavy Duty Power Connector Insert, 100A, 0938 Series Female, 8 Contacts

RS Stock No.:: 842-4265
Mfr. Part No.:: 09380082753
Brand:: HARTING

HARTING Heavy Duty Power Connector Insert, 100A, 0938 Series Female, 8 Contacts

Bulk discount available

Subtotal (1 unit)*

$431.67

(exc. GST)

$474.84

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

5 unit(s) ready to ship from another location
Plus 3 unit(s) shipping from 06 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 49	$431.67
50 - 99	$424.11
100 +	$413.50

*price indicative

RS Stock No.:: 842-4265
Mfr. Part No.:: 09380082753
Brand:: HARTING

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARTING
	Current Rating	100A
	Product Type	Heavy Duty Power Connector Insert
	Series	0938
	Sub Type	Connector Insert
	Connector Gender	Female
	For Use With	Heavy Duty Power Connector
	Pole Format	8
	Number of Rows	2
	Voltage	690V
	Mount Type	Cable
	Standards/Approvals	No
	Manufacturer Size Code	24B
	Number of Contacts	8
	Maximum Wire Size mm²	25mm²
	Minimum Wire Size mm²	10mm²
	Contact Plating	Silver
	Contact Material	Copper Alloy
	Orientation	Straight

	Select all
	Brand HARTING
	Current Rating 100A
	Product Type Heavy Duty Power Connector Insert
	Series 0938
	Sub Type Connector Insert
	Connector Gender Female
	For Use With Heavy Duty Power Connector
	Pole Format 8
	Number of Rows 2
	Voltage 690V
	Mount Type Cable
	Standards/Approvals No
	Manufacturer Size Code 24B
	Number of Contacts 8
	Maximum Wire Size mm² 25mm²
	Minimum Wire Size mm² 10mm²
	Contact Plating Silver
	Contact Material Copper Alloy
	Orientation Straight

Han-Com® Inserts

Poles 4//0, 4//2, 4//8, 6//6, and 6//12 formats have screw connection

Poles 8//24 format has crimp connection

Han-Com® Signal & Power (Crimp and Screw)

These Han- Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings; RS stock Nos. 181-0561, 181-0741, 181-0785, 363-8535, 363-8585 and their associated ranges. These hood and housing ranges are associated to a specific Harting 'Size' number identifier

Note

The 221-1808 to 221-1791 series of crimp contacts utilise contact extraction tool - stock no. 313-6613. All others utilise extraction tool stock no. 114-7728

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
