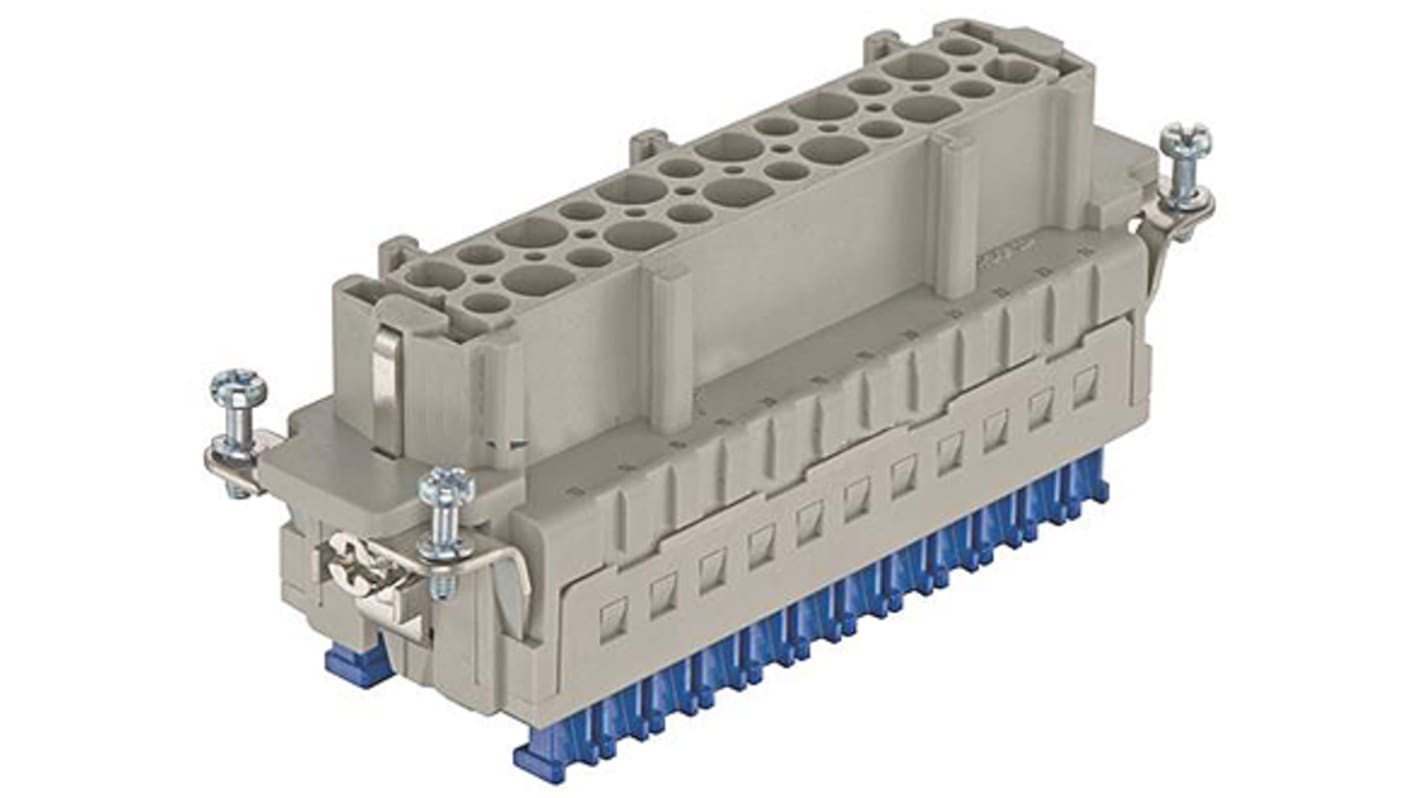

HARTING Heavy Duty Power Connector Insert, 16A, Han ES Press Series Female, 24 Contacts
- RS Stock No.:
- 113-8686
- Distrelec Article No.:
- 300-78-636
- Mfr. Part No.:
- 09330242748
- Brand:
- HARTING
Get a bulk buy discount
Add 25 more to save $14.75
View bulk pricing optionsSubtotal (1 unit)*
$69.10
(exc. GST)
$76.01
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 39 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 24 | $69.10 | - |
| 25 - 49 | $68.51 | $14.75 |
| 50 + | $67.15 | $97.50 |
*price indicative
- RS Stock No.:
- 113-8686
- Distrelec Article No.:
- 300-78-636
- Mfr. Part No.:
- 09330242748
- Brand:
- HARTING
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Current Rating | 16A | |
| Product Type | Heavy Duty Power Connector Insert | |
| Series | Han ES Press | |
| Sub Type | Connector Insert | |
| Connector Gender | Female | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 24 | |
| Number of Rows | 2 | |
| Voltage | 500V | |
| Mount Type | Panel Mount | |
| Standards/Approvals | No | |
| Number of Contacts | 24 | |
| Manufacturer Size Code | 24B | |
| Thread Size | M3 x 10 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Orientation | Straight | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Current Rating 16A | ||
Product Type Heavy Duty Power Connector Insert | ||
Series Han ES Press | ||
Sub Type Connector Insert | ||
Connector Gender Female | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 24 | ||
Number of Rows 2 | ||
Voltage 500V | ||
Mount Type Panel Mount | ||
Standards/Approvals No | ||
Number of Contacts 24 | ||
Manufacturer Size Code 24B | ||
Thread Size M3 x 10 | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Orientation Straight | ||
- COO (Country of Origin):
- DE
Harting Han ES Press Modular Inserts
Han ES Press male and female modular inserts with a vibration proof design, silver plated contacts and a 16 A rated current. These Han ES Press inserts feature cage clamp terminations for quick and easy wiring, no additional tooling is required. The inserts accept a wire size range of 0.14 mm2 to 2.5 mm2. Optional ES Press plug in jumpers can be used to quickly and easily bridge contacts directly in the connector. The jumpers can also be used to implement Star and Delta Motor connections. These Han 16 ES Press and Han 24 ES Press modular inserts can be used with Han B, Han M, Han EMC, Han Easy Hood, Han HPR hoods and housing. All models are highly reliable and excellent quality.
Features and Benefits
Cage clamp terminations for quick and easy wiring;Vibration proof design;Accept plug in jumpers for contact bridging and Star and Delta • • Motor connections;Multiple connection possibilities;Can with used with wide range of hoods and housings
Han ES Press
