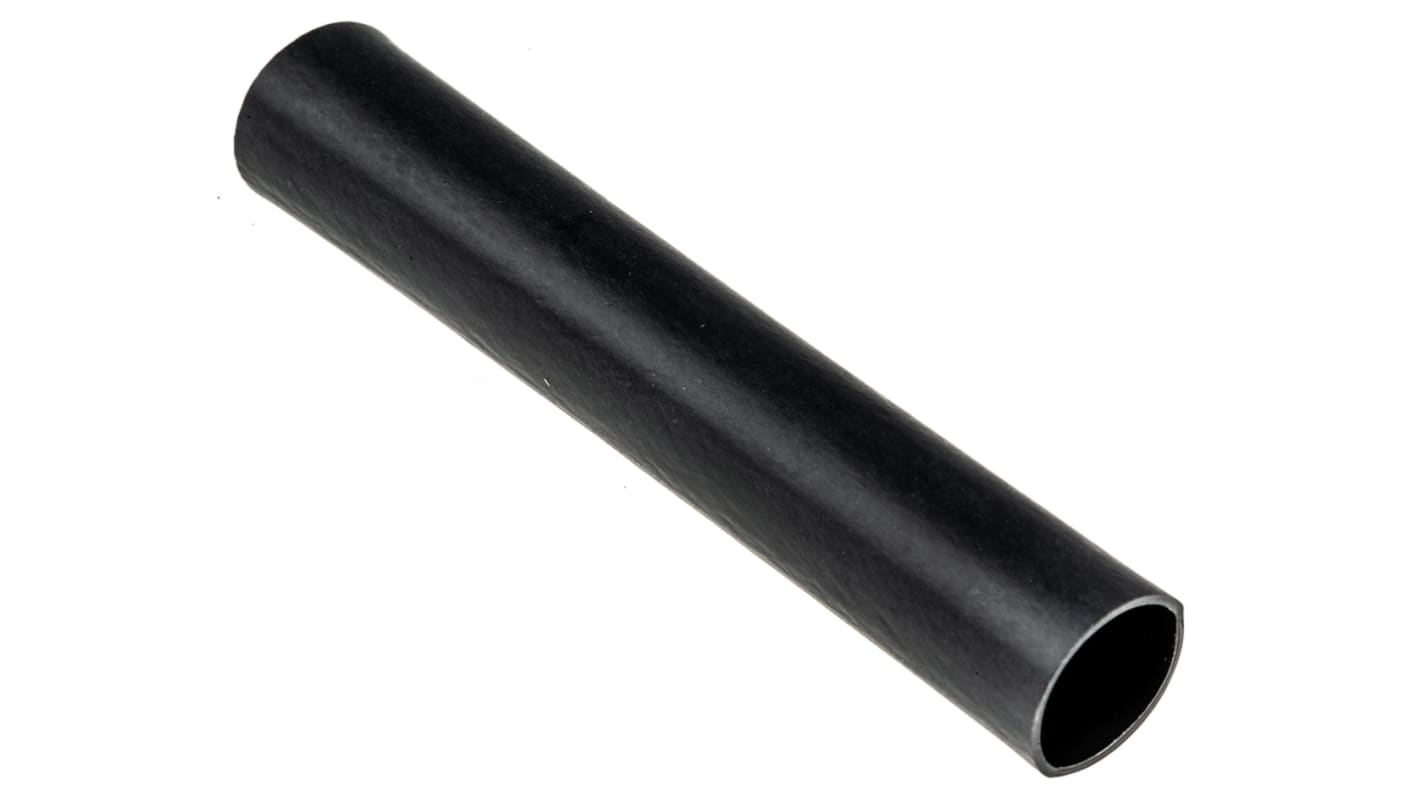

HellermannTyton Adhesive Lined Heat Shrink Tubing, Black 8mm Sleeve Dia. x 50mm Length 4:1 Ratio, TG40 Series
- RS Stock No.:
- 181-6792
- Mfr. Part No.:
- 317-00035 TG40-8/1.65 50mm-PO-X-BK
- Brand:
- HellermannTyton
3 In AU stock for next working day delivery
41 In Global stock for delivery within 10 working day(s)
Price (ex. GST) 1 Bag of 100
$45.34
(exc. GST)
$49.87
(inc. GST)
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | $45.34 | $0.453 |
*price indicative
- RS Stock No.:
- 181-6792
- Mfr. Part No.:
- 317-00035 TG40-8/1.65 50mm-PO-X-BK
- Brand:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
HellermannTyton Heat Shrink and Cold Shrink Sleeve
The HellermannTyton heat shrink and cold shrink sleeve is an adhesive lined, heat shrink tubing material supplied as a continuous tube that is printable on both the sides. This white colour sleeves belongs to the TG40 series. It contains polyolefin compound and has good tensile strength and resistance to organic solvents and chemicals. It has an 8mm sleeve, 1.65mm shrunk diameter and 50mm length. It has a shelf life of up to 5 years.
Features and Benefits
• Highly flexible
• No breakdown
• Operating temperature ranges between -55°C and 125°C
• Shrink ratio 4:1
• No breakdown
• Operating temperature ranges between -55°C and 125°C
• Shrink ratio 4:1
Applications
• Automation technology
• Harness
• Marine application
• Protecting wire bundles
• Harness
• Marine application
• Protecting wire bundles
Certifications
• ASTM D 2671
• IEC243
• SAE-AMS-DTL 23053
• UL approved
• VG 95343-5
• IEC243
• SAE-AMS-DTL 23053
• UL approved
• VG 95343-5
Specifications
Attribute | Value |
---|---|
Sleeve Diameter | 8mm |
Colour | Black |
Shrunk Diameter | 1.65mm |
Sleeve Type | Heat Shrink |
Adhesive Lined | Yes |
Shrink Ratio | 4:1 |
Sleeve Length | 50mm |
Flame Retardant | Yes |
Series | TG40 |
