TE Connectivity End Cap ES-Cap Black, Semi-Rigid Polyolefin Adhesive Backing, 5.72 mm
- RS Stock No.:
- 316-0896
- Mfr. Part No.:
- ES-CAP-NO.1-C1-0-30MM-RS
- Brand:
- TE Connectivity

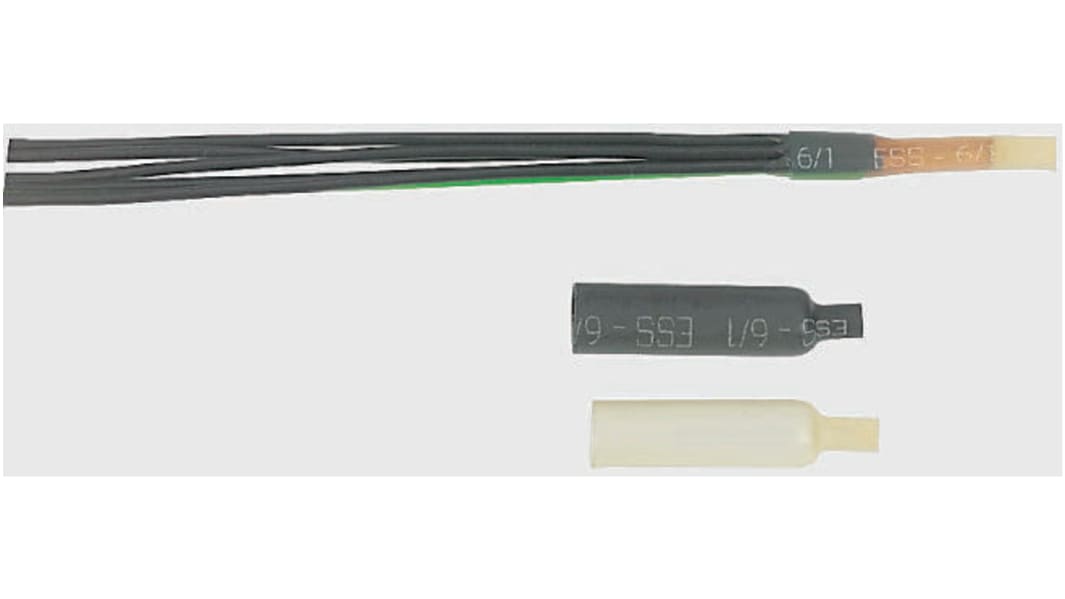

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
$24.24
(exc. GST)
$26.66
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 10 unit(s) ready to ship
- Plus 129 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 29 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 14 | $24.24 | $0.242 |
| 15 - 49 | $23.40 | $0.234 |
| 50 + | $22.20 | $0.222 |
*price indicative
- RS Stock No.:
- 316-0896
- Mfr. Part No.:
- ES-CAP-NO.1-C1-0-30MM-RS
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Sub Type | End Cap | |
| Product Type | Heat Shrink Boot | |
| Material | Semi-Rigid Polyolefin | |
| Number of Breakouts | 1 | |
| Shrink Temperature | 100°C | |
| Colour | Black | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Maximum Inside Diameter | 5.72mm | |
| Minimum Shrunk Diameter | 1.2mm | |
| Maximum Shrunk Diameter | 1.27mm | |
| Minimum Inside Diameter | 5mm | |
| Standards/Approvals | No | |
| Series | ES-Cap | |
| Adhesive Backing | Yes | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Sub Type End Cap | ||
Product Type Heat Shrink Boot | ||
Material Semi-Rigid Polyolefin | ||
Number of Breakouts 1 | ||
Shrink Temperature 100°C | ||
Colour Black | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Maximum Inside Diameter 5.72mm | ||
Minimum Shrunk Diameter 1.2mm | ||
Maximum Shrunk Diameter 1.27mm | ||
Minimum Inside Diameter 5mm | ||
Standards/Approvals No | ||
Series ES-Cap | ||
Adhesive Backing Yes | ||
End Caps 4:1
Specially designed to provide mechanical and environmental protection of stubs and splices in electrical harnesses and also ideal for sealing off cable ends. Clear cap allows see through inspection, black caps are flame retardant.
Thick adhesive-lining forms an effective barrier against fluids & moisture
4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters
Mechanically tough jacket provides strain relief and abrasion protection
Range; -40°C to +105°C. min recovery 100°C
100 per bag.
Approvals
UL recognised component
