- RS Stock No.:
- 704-3372
- Mfr. Part No.:
- ANT-GSMGPSPUKS
- Brand:
- RF Solutions
27 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$76.69
(exc. GST)
$84.36
(inc. GST)
Units | Per unit |
1 - 9 | $76.69 |
10 - 49 | $76.68 |
50 + | $69.01 |
- RS Stock No.:
- 704-3372
- Mfr. Part No.:
- ANT-GSMGPSPUKS
- Brand:
- RF Solutions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

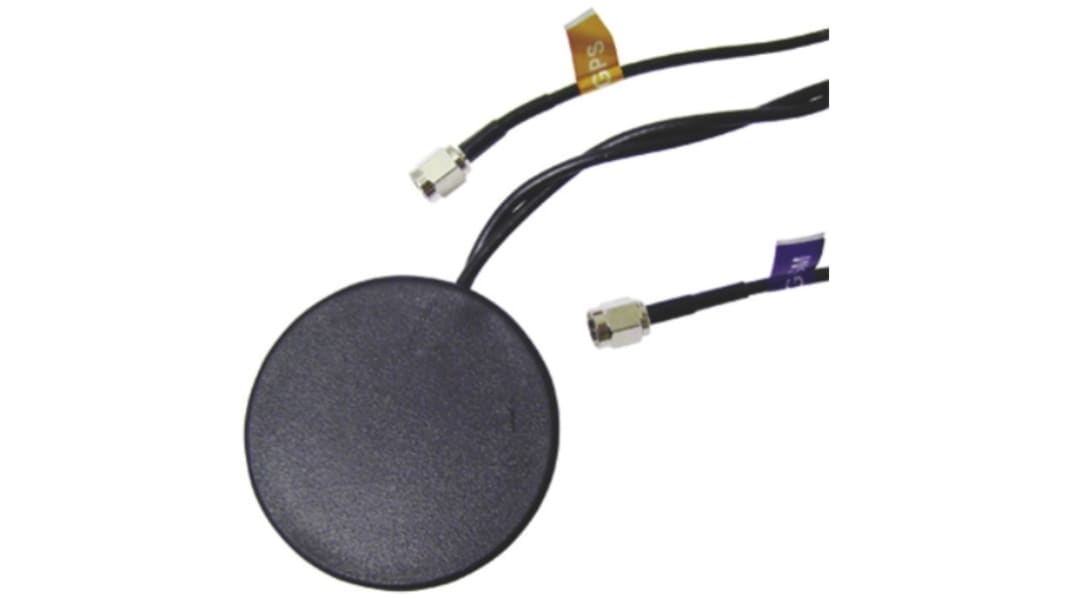

GSM/GPS Rugged 'Puck' Quad-Band Antenna
GSM/CDMA & GPS Antenna
Rugged Low Profile UV Resistant Case, Screw Fix Connector
3 metres RG174 Cable Lead
Operating Temperature -30 to +80°C
Rugged Low Profile UV Resistant Case, Screw Fix Connector
3 metres RG174 Cable Lead
Operating Temperature -30 to +80°C
GSM
Quad Band 800/900/1800/1900MHz
Active gain: +0dBi
VSWR <2.0:1
Omni directional
Active gain: +0dBi
VSWR <2.0:1
Omni directional
GPS
1575.42MHz ±1MHz
Active gain: +27dB typ.
Noise Figure 1.5 max
SMA Male Connector
Operating Voltage 3 to 5V
Active gain: +27dB typ.
Noise Figure 1.5 max
SMA Male Connector
Operating Voltage 3 to 5V
GSM (Global System for Mobile communications) Antennas
Specifications
Attribute | Value |
---|---|
Antenna Physical Form | Dome |
Lead Length | 3000mm |
Antenna Mounting Type | Through Hole |
RF Protocols | 2G (GSM/GPRS), GPS |
Gain | 27dBi |
