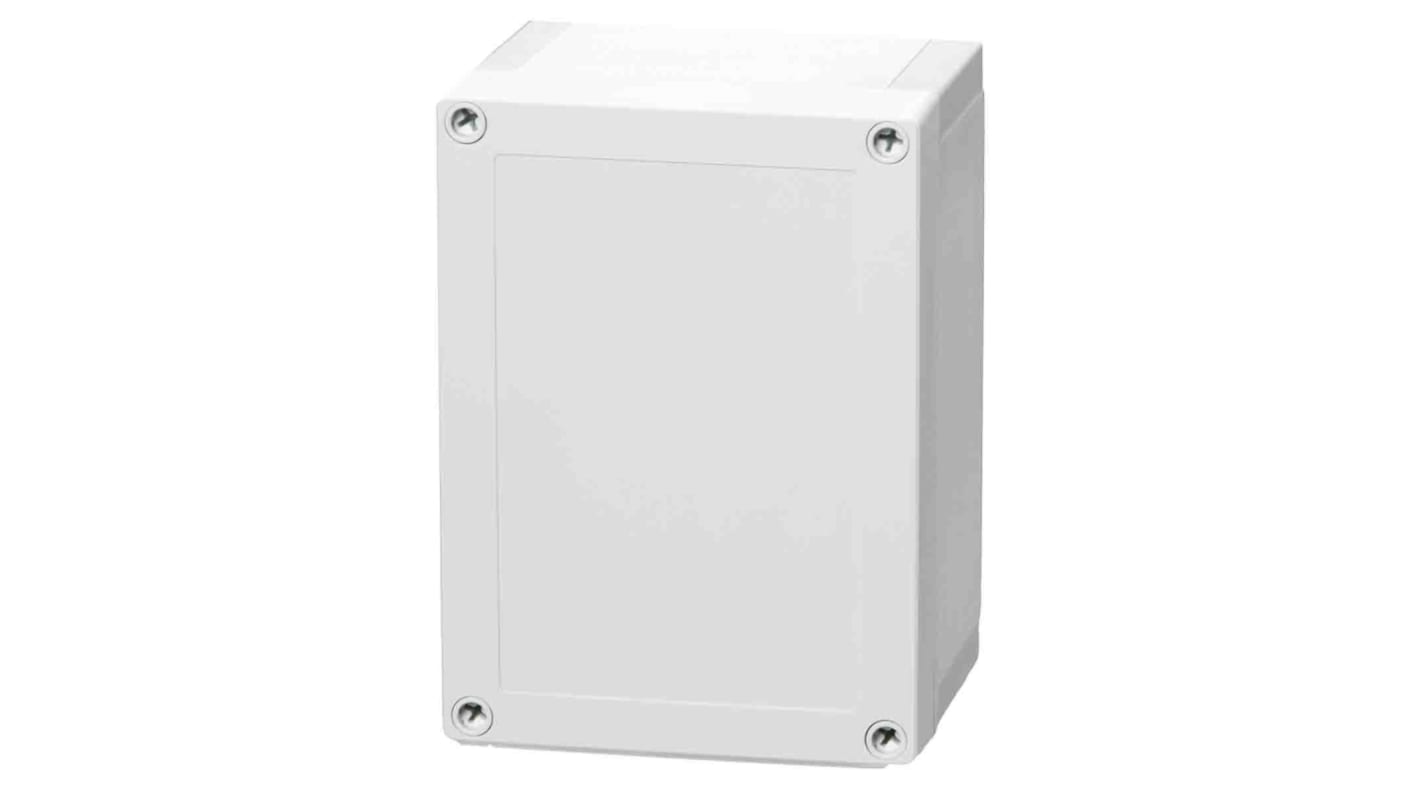

Fibox Grey Polycarbonate Enclosure, IP66, IP67, IK08, Grey Lid, 180.1 x 130.1 x 85mm
- RS Stock No.:
- 194-3138
- Mfr. Part No.:
- PC 150/85 XHG ENCLOSURE
- Brand:
- Fibox
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$56.19
(exc. GST)
$61.81
(inc. GST)
| Units | Per unit |
| 1 - 9 | $56.19 |
| 10 - 14 | $54.62 |
| 15 + | $52.37 |
- RS Stock No.:
- 194-3138
- Mfr. Part No.:
- PC 150/85 XHG ENCLOSURE
- Brand:
- Fibox
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details
Base with PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws.
MNX polycarbonate and ABS enclosures utilize world-class injection moulding technology. They are designed to house and protect all kinds of electrical and electronic components in the most demanding applications. The MNX includes more than 260 different variations.
Specifications
Attribute | Value |
|---|---|
| Body Material | Polycarbonate |
| External Length | 180.1 mm |
| External Height | 85 mm |
| External Width | 130.1 mm |
| External Dimensions | 180.1 x 130.1 x 85mm |
| IP Rating | IP66, IP67 |
| Range | MNX |
| Colour | Grey |
| Lid Colour | Grey |
| IK Rating | IK08 |
| RAL Code | RAL 7035 |
| Gasket Material | Polyurethane |
