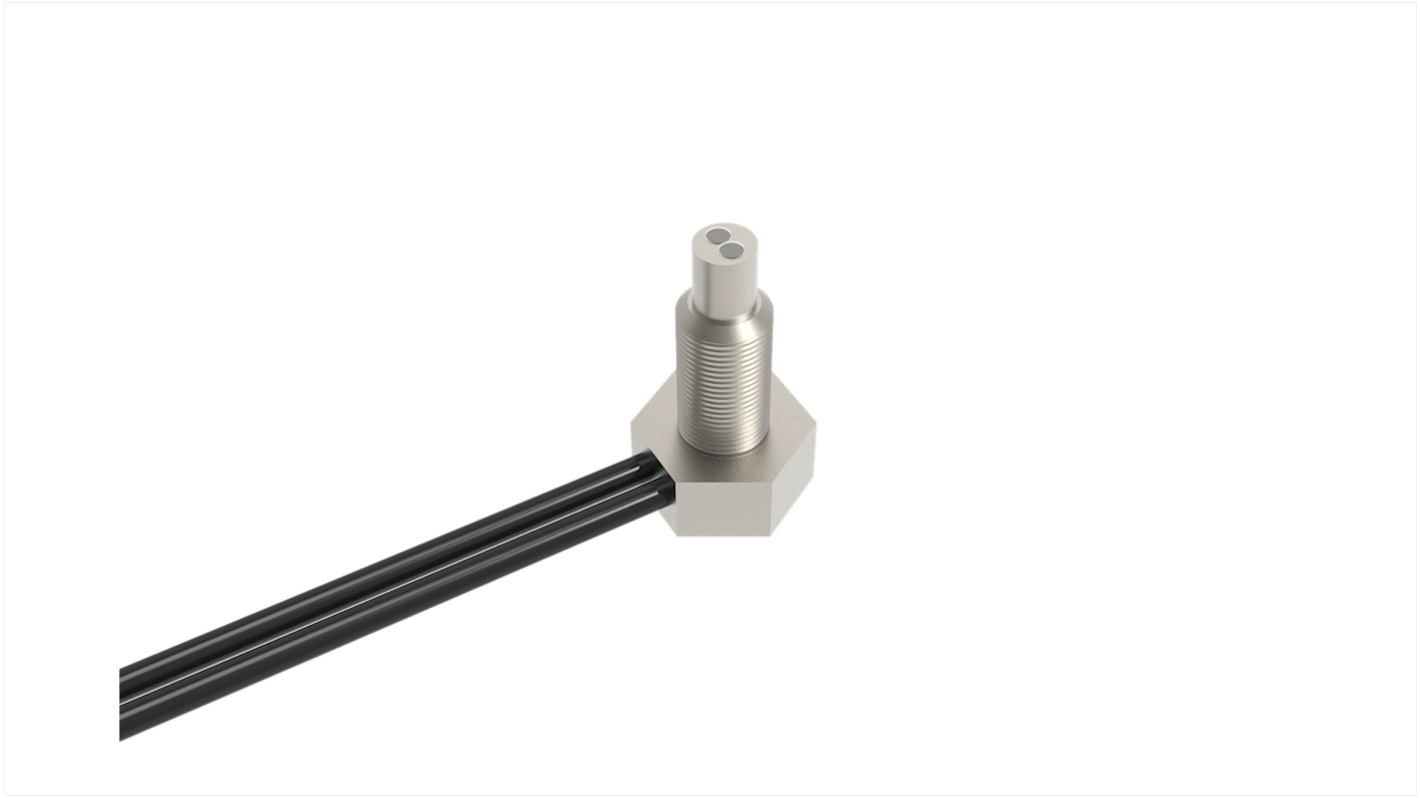

RS PRO Plastic Fibre Optic Sensor 35 mm, 110 mm, 200 mm, NPN /PNP (Fiber amplifier FD3 series) Output, 0.8 → 0.9
- RS Stock No.:
- 252-2093
- Brand:
- RS PRO
37 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$93.00
(exc. GST)
$102.30
(inc. GST)
| Units | Per unit |
| 1 - 9 | $93.00 |
| 10 - 99 | $89.30 |
| 100 + | $83.72 |
- RS Stock No.:
- 252-2093
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The RS Pro optic fibre which have standard thread shape for easy installation and this fibre optic head is made of stainless steel and it have high durability. It is suitable for installation in small spaces with high detection accuracy. In this optic fibre diffuse reflection type detection method is used. The temperature resistance of this optic fibre is between range of -40 to 70℃ .
Diameter is M4
Detection distance is 35/ 110/ 200 mm
Length is 2 m
Minimum bend radius is R25
Detection distance is 35/ 110/ 200 mm
Length is 2 m
Minimum bend radius is R25
Specifications
Attribute | Value |
|---|---|
| Detection Range | 35 mm, 110 mm, 200 mm |
| Output Type | NPN /PNP (Fiber amplifier FD3 series) |
| Fibre Optic Type | Plastic |
| Terminal Type | PVC Cable |
| Response Time | 50/250/1000/16000 μs |
| Power Consumption | 0.8 → 0.9 W |
| IP Rating | IP54 (Fiber amplifier FD3 series) |
| Supply Voltage | 12 → 24 V dc |
