- RS Stock No.:
- 877-2429
- Mfr. Part No.:
- DA04V
- Brand:
- APEM
265 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$2.008
(exc. GST)
$2.209
(inc. GST)
Units | Per unit | Per Bag* |
5 - 5 | $2.008 | $10.04 |
10 - 15 | $1.96 | $9.80 |
20 + | $1.932 | $9.66 |
*price indicative |
- RS Stock No.:
- 877-2429
- Mfr. Part No.:
- DA04V
- Brand:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

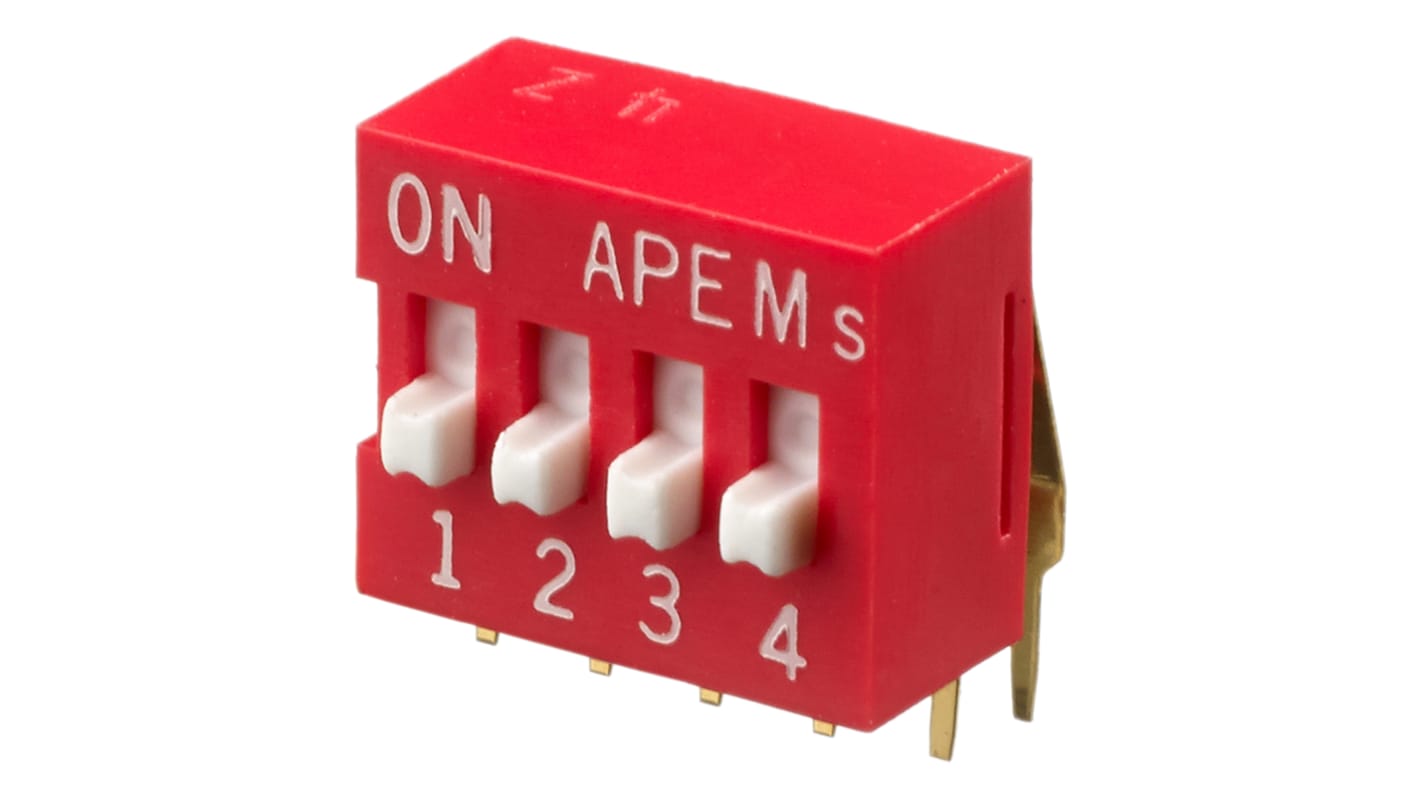

Apem DIP Switches – DA & DS Series
Apem DA, and DS series of DIP switches are SPST through-hole switches available in an array of positions. The DA series are right angled type DIP switches with a raised actuator, the DS series are standard type DIP switches with a raised actuator. Applications include telecom, computers, test equipment, security and instrumentation.
Low contact resistance: 50mΩ
Insulation resistance >100MΩ at 100Vdc
Insulation resistance >100MΩ at 100Vdc
Specifications
Attribute | Value |
---|---|
Number of Positions | 4 |
Mounting Type | Through Hole |
Contact Material | Phosphor Bronze |
Contact Configuration | SPST |
Package Style | DIP |
Actuator Type | Raised |
Contact Current Rating | 25 mA |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +70°C |
Voltage Rating | 24V dc |
Dielectric Strength | 500V dc |
