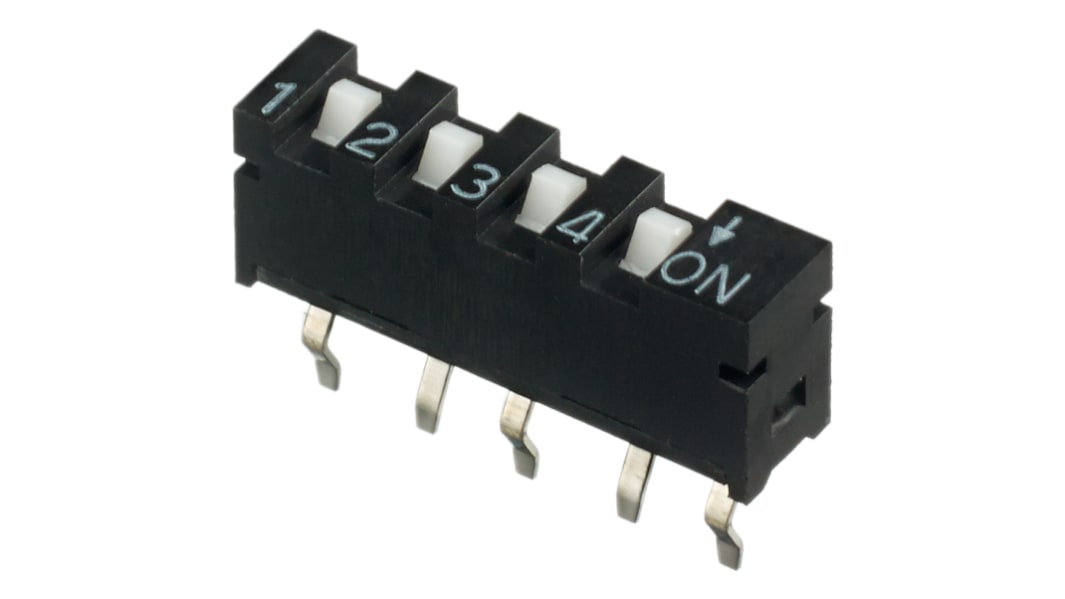

4 Way PCB SIP Switch SPST

  • RS Stock No. 877-2378
  • Mfr. Part No. SIP-04TV
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

APEM SIP Series,Straight,Single in Line

Operation force 800gf
Non switching rating 100mA 50Vdc
Switching rating 10mA,5Vdc
RoHS & Lead free solderable

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 10 (Switching) mA @ 5 V dc, 100 (Non-Switching) mA @ 50 Vdc
Number of Positions 4
Mounting Type PCB
Actuator Type Slide
Package Style SIP
Maximum Operating Temperature +80°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +80°C
Voltage Rating 5 V dc, 50 V dc
175 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Bag of 5)
$ 2.514
(exc. GST)
$ 2.765
(inc. GST)
units
Per unit
Per Bag*
5 - 120
$2.514
$12.57
125 +
$2.448
$12.24
*price indicative
