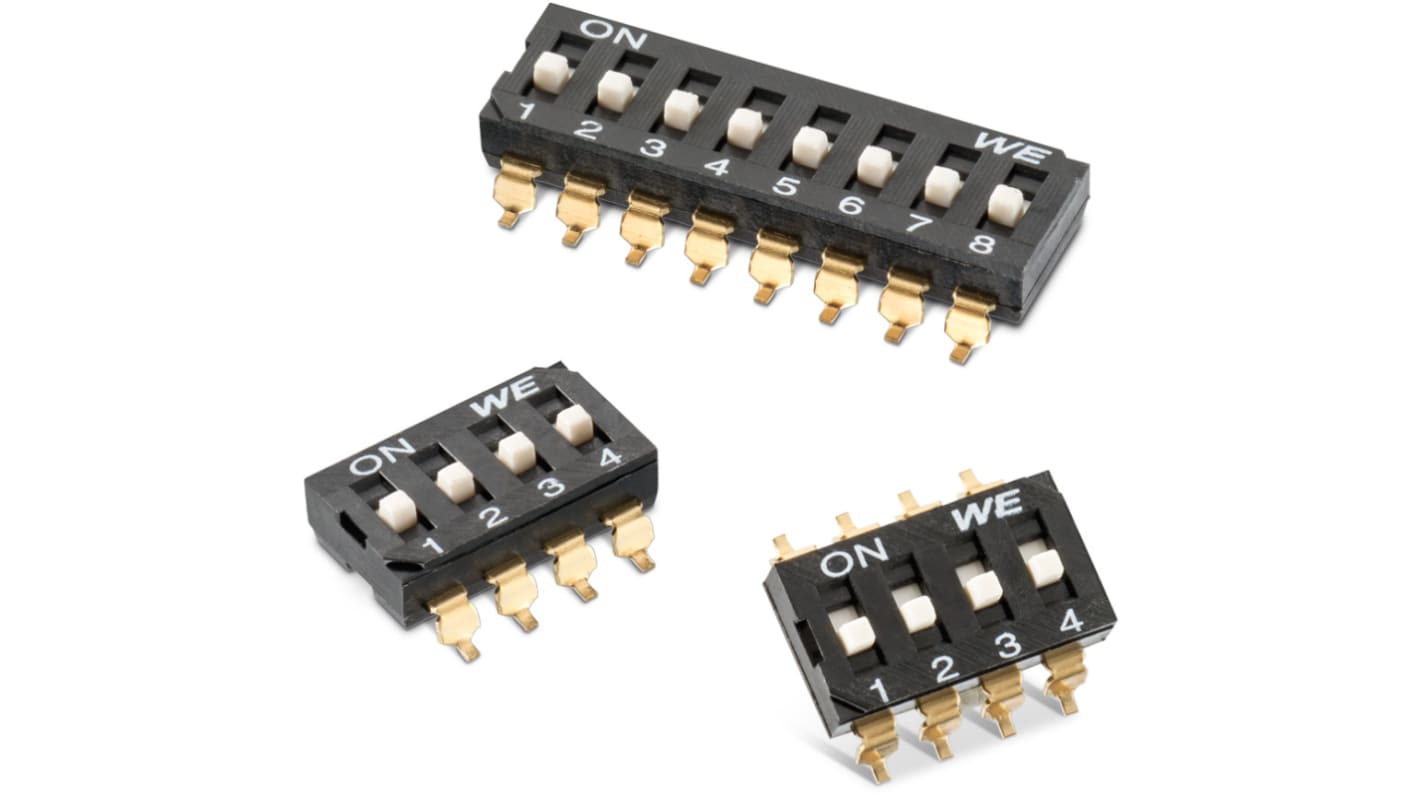

Wurth Elektronik 4 Way Surface Mount DIP Switch SPST, Raised Actuator
- RS Stock No.:
- 254-1771
- Mfr. Part No.:
- 418121270804
- Brand:
- Wurth Elektronik
1498 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Tape of 2)
$3.85
(exc. GST)
$4.23
(inc. GST)
| Units | Per unit | Per Tape* |
| 2 - 8 | $3.85 | $7.70 |
| 10 - 48 | $3.65 | $7.30 |
| 50 - 98 | $3.50 | $7.00 |
| 100 - 398 | $3.34 | $6.68 |
| 400 + | $3.16 | $6.32 |
| *price indicative | ||
- RS Stock No.:
- 254-1771
- Mfr. Part No.:
- 418121270804
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurths offers a WS-DISV series of small compact SMT with raised actuator made up of PA46 material with a contact plating of gold with the operating temperature of -40°C to +85°C and an electrical life with 2000 cycles.
Actuator Flammability Rating is UL94 V-0
Operation force is 600 g
Withstanding voltage is 500 V
Operation force is 600 g
Withstanding voltage is 500 V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 4 |
| Mounting Type | Surface Mount |
| Contact Material | Gold |
| Contact Configuration | SPST |
| Actuator Type | Raised |
| Contact Current Rating | 100 mA |
