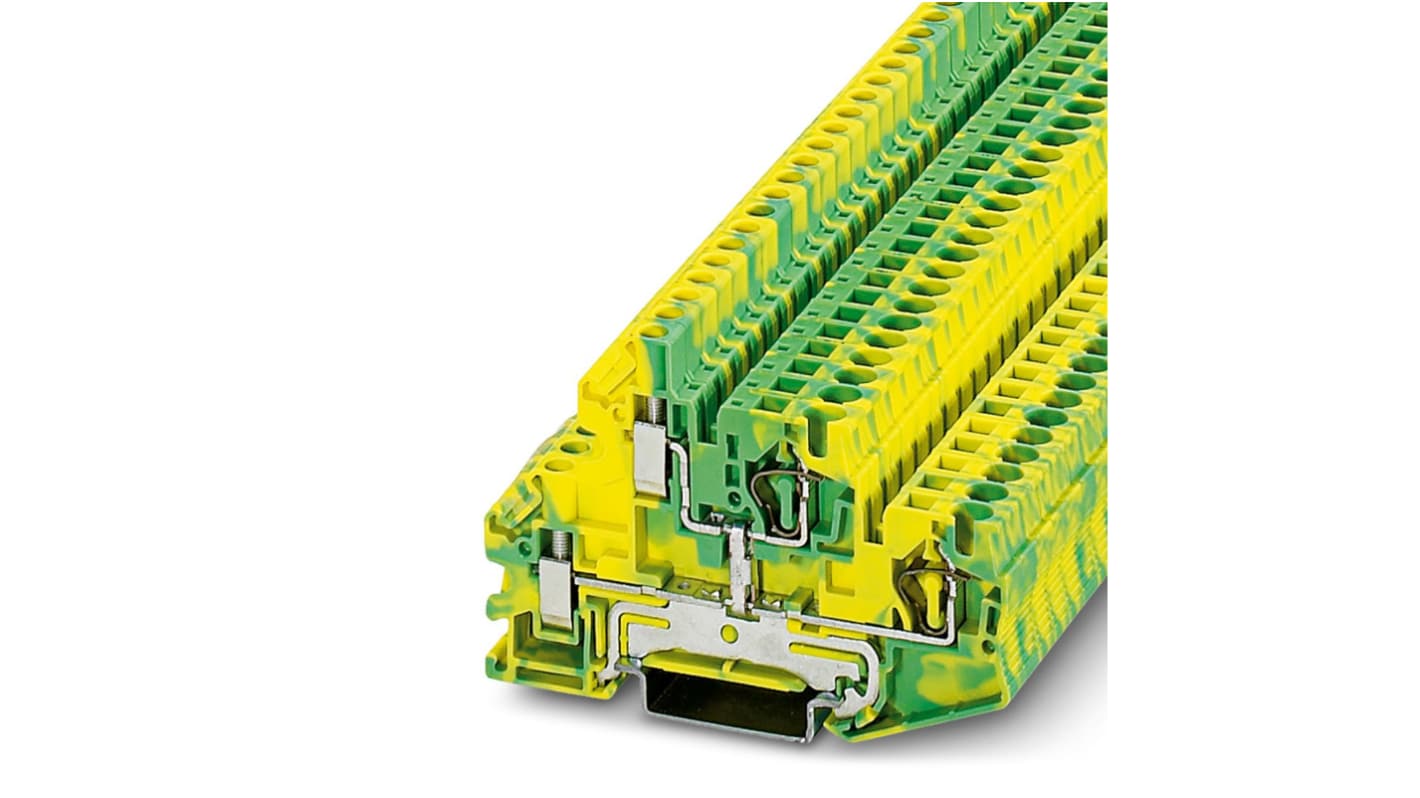

Phoenix Contact STTBU 4-PE Series Green, Yellow Double Level Terminal Block, Double-Level, Screw Termination
- RS Stock No.:
- 855-8651
- Mfr. Part No.:
- 3033171
- Brand:
- Phoenix Contact
Stocked by manufacturer – available for delivery 11/06/2024
Added
Price (ex. GST) 1 Box of 50
$1,214.89
(exc. GST)
$1,336.38
(inc. GST)
| Box(es) | Per Box | Per unit* |
| 1 + | $1,214.89 | $24.298 |
| *price indicative | ||
- RS Stock No.:
- 855-8651
- Mfr. Part No.:
- 3033171
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Double-level spring-cage terminal block, connection method: Spring-cage connection, Screw connection, number of connections: 4, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, width: 6.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15
Can be consistently bridged to the STTB 4 standard double-level terminal blocks
Can be bridged in both levels to implement different switching tasks
Specifications
Attribute | Value |
|---|---|
| Colour | Green, Yellow |
| Number of Levels | Double |
| Series | STTBU 4-PE |
| Termination Method | Screw |
| Current Rating | 36A |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +130°C |
| Model Number | STTBU 4-PE |
