Weidmuller Feedthrough Terminal Blocks Z Series

Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.

Features and Benefits

• One, two, three and four tier available

• Tension clamp technology

• Available in different colours

Select all	Attribute	Value
	Brand	Weidmüller
	Colour	Blue
	Number of Levels	Double
	Series	Z
	American Wire Gauge	28 → 16AWG
	Termination Method	Clamp
	Cable CSA	1.5mm²
	Current Rating	17.5A
	Voltage Rating	500 V
	Pitch	3.5mm
	Minimum Operating Temperature	-50°C
	Maximum Operating Temperature	+120°C

	Select all
	Brand Weidmüller
	Colour Blue
	Number of Levels Double
	Series Z
	American Wire Gauge 28 → 16AWG
	Termination Method Clamp
	Cable CSA 1.5mm²
	Current Rating 17.5A
	Voltage Rating 500 V
	Pitch 3.5mm
	Minimum Operating Temperature -50°C
	Maximum Operating Temperature +120°C

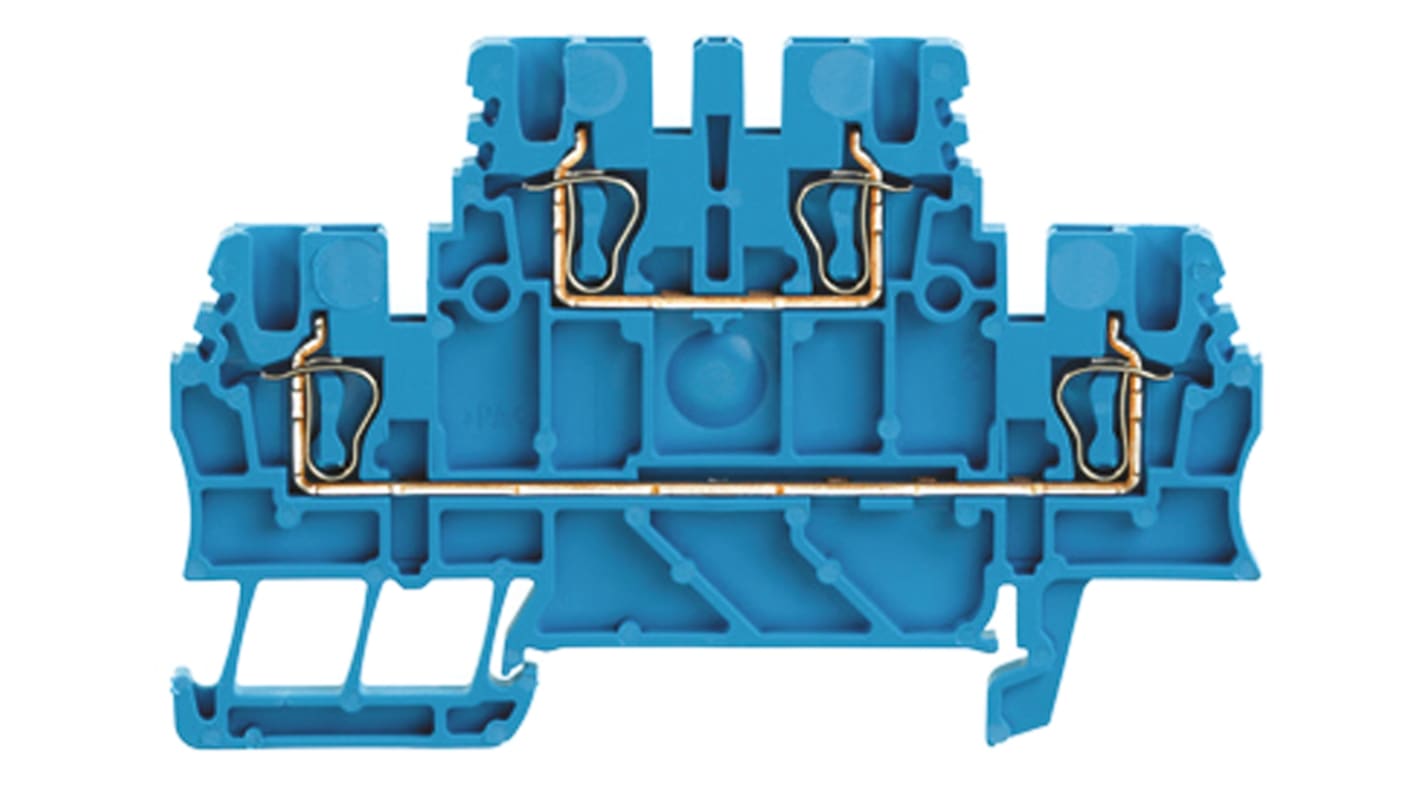

Weidmuller 1791110000 Z Series Blue, 1.5mm², Double-Level, Clamp Termination
